| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Gigabyte |
| General Information | ||
| Model | Z790 AORUS ELITE | |
| Brand | Gigabyte | |
| Supported Processor | LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU |
|
| Chipset | Intel Z790 Express Chipset | |
| Socket | LGA1700 | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Memory Information | ||
| Memory Types | DDR5 | |
| Channel | Dual Channel | |
| Slot | 4 x DIMM | |
| Supported Bus Speed | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules |
|
| Maximum Memory | 128 GB (32 GB single DIMM capacity) | |
| Graphics Information | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 * Support for DisplayPort 1.2 version and HDCP 2.3 |
|
| Expansion Slots | ||
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) Support for AMD CrossFire technology (PCIEX16 and PCIEX4) |
|
| Storage Information | ||
| M.2 | CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) |
|
| SATA | 6 x SATA 6Gb/s connectors | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| Connector Information | ||
| Internal Connector | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper |
|
| Port Information | ||

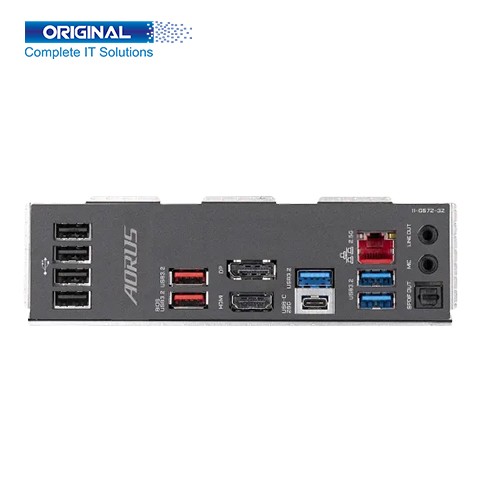

| USB Port | Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
| HDMI Port | 1 x HDMI 2.0 port | |
| Display Port | 1 x DisplayPort | |
| SMA Antenna | 2 x SMA antenna connectors (2T2R) | |
| Optical S/PDIF | 1 x optical S/PDIF Out connector | |
| LAN Port | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port |
|
| Audio Jack | 2 x audio jacks | |
| Other Information | ||
| Wireless & Bluetooth | Intel® Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|
| Operating System | ||
| Supported OS | Windows 11 64-bit Windows 10 64-bit |
|
| Warranty | ||
| Warranty | 03 Years | |

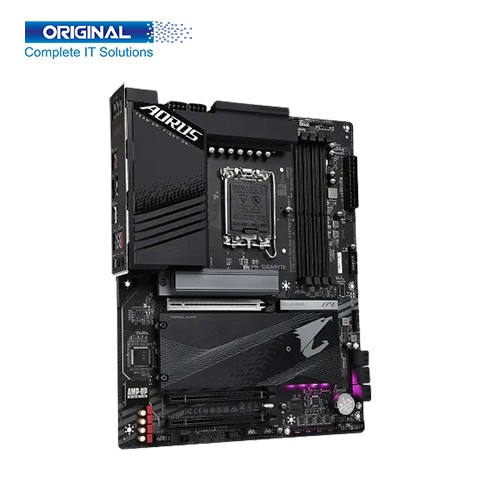

Gigabyte Z790 AORUS ELITE 13th & 12th Gen Motherboard. Especially with fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and the latest technologies. GIGABYTE motherboards are equipped with upgraded power solutions, the latest storage standards, and outstanding connectivity to enable optimized performance for gaming.
Gigabyte Z790 AORUS ELITE 13th & 12th Gen Motherboard. The model is Z790 AORUS ELITE. The Motherboard Supports Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors. Unparalleled Performance： Twin 16*+1+2 Phases Digital VRM Solution. Dual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module Support. Next Generation Storage：4*PCIe 4.0 x4 M.2 Connectors. Advanced Thermal Design & M.2 Thermal Guard III: To Ensure VRM Power Stability & M.2 SSD Performance. EZ-Latch Plus： M.2 Connectors with Quick Release & Screwless Design. Fast Networks：2.5GbE LAN. Extended Connectivity： DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s. Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. Q-Flash Plus： Update BIOS Without Installing the CPU, Memory, and Graphics Card. Supported Operating System Windows 11 64-bit & Windows 10 64-bit. Gigabyte Z790 AORUS ELITE 13th & 12th Gen Motherboard comes with 03 years warranty.
