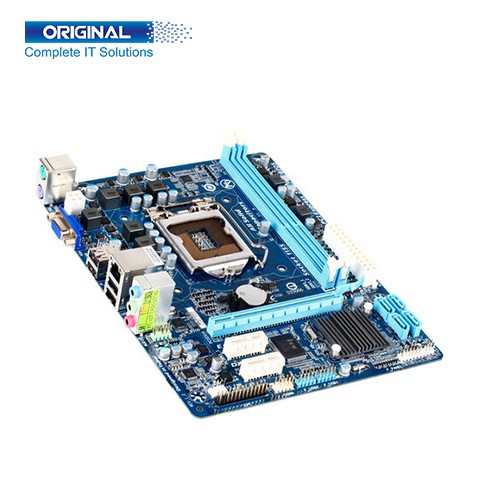

Gigabyte GA-H61M-DS2 DDR3 3rd Gen Intel Motherboard

Special Price :           ৳7,500
Regular Price(EMI) :           ৳8,250
Status :           In Stock
Brand :           Gigabyte
Product Code :           61
Product MPN :           H61M

Short Details:

  • • Model: Gigabyte GA-H61M-DS2
  • • Chipset: Intel® H61 Express Chipset
  • • Form Factor: Micro ATX 22.6cm x 17.4cm
  • • Memory Types: DDR3

See More Details

৳7,500

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model Gigabyte GA-H61M-DS2
Supported Processor 3rd Gen Intel Pentium, Core i3, i5, i7 Processor
Chipset Intel® H61 Express Chipset
Socket LGA1155
BIOS

* 2 x 32 Mbit flash
* Use of licensed AMI EFI BIOS
* Support for DualBIOS™
* PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

Form Factor Micro ATX 22.6cm x 17.4cm
Memory Information
Memory Types DDR3
Channel Dual channel
Slot 2 x 1.5V DDR3 DIMM
Supported Bus Speed DDR3 1333/1066/800 MHz
Maximum Memory 16 GB
Graphics Information
Graphics

* 1 x DVI-D port, supporting a maximum resolution of [email protected] Hz
* The DVI-D port does not support D-Sub connection by adapter.
* 1 x HDMI port, supporting a maximum resolution of [email protected] Hz(Note)
* Support for HDMI 2.0 version and HDCP 2.2.(Note)
Maximum shared memory of 16 GB

Expansion Slots
PCI

* 1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
* Whether PCI Express 3.0 is supported depends on CPU and graphics card compatibility.
* 2 x PCI Express x1 slots
(All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)

Storage Information
SATA

4 x SATA 3Gb/s connectors

Connector Information
Internal Connectors

* 1 x 24-pin ATX main power connector
* 1 x 4-pin ATX 12V power connector
* 1 x CPU fan header
* 1 x system fan header
* 4 x SATA 3Gb/s connectors
* 1 x front panel header
*  1 x front panel audio header
* 1 x speaker header
* 2 x USB 2.0/1.1 headers
* 1 x chassis intrusion header
* 1 x Clear CMOS jumper

Port Information
PS/2 Port

1 x PS/2 keyboard port
1 x PS/2 mouse port

USB Port 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
VGA Port 1x VGA port
D-Sub Port 1 x D-Sub port
LAN Port 1 x RJ-45 port (Realtek® GbE LAN chip 10/100/1000 Mbit)
Audio Port

* 3 x audio jacks (Line In/Line Out/Microphone)

1. Realtek ALC887 codec

2. High Definition Audio

3. 2/4/5.1/7.1-channel

Parallel Port 1 x parallel port
Serial Port 1 x serial port
Operating System
Supported OS

Support for Microsoft® Windows 8/7/Vista/XP

Warranty
Warranty

03 Years Warranty

Descripton:


Gigabyte GA-H61M-DS2 DDR3 3rd Gen Intel Motherboard


This Gigabyte GA-H61M-DS2 Motherboard comes with Support for 3rd Gen Intel Core i7/i5/i3 Pentium Celeron processors in the LGA1155 package, Chipset Intel H61, Socket LGA1155, Bios is 2 x 32 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.0, WfM 2.0, SM BIOS 2.6, ACPI 2.0,  22.6cm x 17.4cm M-ATX Form Factor. GA-H61M-DS2 Gigabyte Motherboard Maximum 16 GB DDR3 Dual Channel Memory, 2 x DDR3 DIMM sockets, Supported Bus Speed DDR3 1333/ 1066/ 800 MHz. Buy Gigabyte GA-H61M-DS2 DDR3 3rd Gen Intel Motherboard at the best price in BD.


For more Motherboard information Please Check Gigabyte MotherboardMSI MotherboardAsus MotherboardEsonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.


Gigabyte GA-H61M-DS2 DDR3 3rd Gen Intel Motherboard comes with standard Graphics such as 1 x DVI-D port, supporting a maximum resolution of [email protected] Hz, The DVI-D port does not support D-Sub connection by the adapter, 1 x HDMI port, Support for HDMI 2.0 version and HDCP 2.2. (Note), supporting a maximum resolution of [email protected] Hz(Note). Gigabyte H61M-DS2 DDR3 Motherboard Expansion PCI slot is 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots also various Internal Connectors such as 4 x 24-pin ATX main power connector, 4 x SATA 6Gb/s connectors, 1 x CPU fan header, 1 x front panel audio header, etc. Gigabyte GA-H61M-DS2 DDR3 Motherboard has 2 x USB 2.0/1.1 ports, 1 x HDMI port, 1 x D-Sub port, Realtek GbE LAN  (10/100/1000 Mbit), and High Definition Audio with 2/4/5.1/7.1-channel. This Gigabyte GA-H61M-DS2 Motherboard Support for Windows 8/7/Vista/XP. You can enjoy a 03 Years Warranty. Buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
