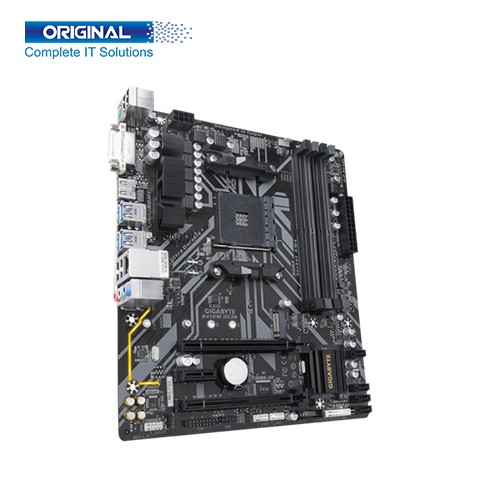

Gigabyte B450M DS3H WIFI AMD AM4 Micro ATX Motherboard

Special Price :           ৳9,800
Regular Price(EMI) :           ৳10,900
Status :           In Stock
Brand :           Gigabyte
Product Code :           450
Product MPN :           B450M

Short Details:

  • • Model: Gigabyte B450M DS3H
  • • Chipset: AMD B450
  • • Form Factor: Micro ATX Form Factor; 24.4cm x 21.5cm
  • • Memory Types: DDR4

See More Details

৳9,800

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model

Gigabyte B450M DS3H

Supported Processor AM4 Socket: AMD Ryzen 1st Gen/ 2nd Gen/ 3rd Gen with Radeon™ Vega Graphics Processors
Chipset AMD B450
Socket AM4
BIOS

* 1 x 128 Mbit flash

* Use of licensed AMI UEFI BIOS

* PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor Micro ATX Form Factor; 24.4cm x 21.5cm
Memory Information
Memory Types

DDR4

Channel Dual Channel
Slot 4 x DDR4 DIMM
Supported Bus Speed DDR4 3600(O.C.) / 3466(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz
Maximum Memory 128 GB
Graphics Information
Graphics

* 1 x DVI-D port, supporting a maximum resolution of [email protected] Hz

* The DVI-D port does not support D-Sub connection by adapter.

* 1 x HDMI port, supporting a maximum resolution of [email protected] Hz(Note)

* Support for HDMI 2.0 version and HDCP 2.2.(Note)

* Maximum shared memory of 16 GB

* (Note) Actual support may vary by CPU.

Expansion Slots
PCI

* 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)

* 1 x PCI Express x16 slot, running at x4 (PCIEX4)

* 1 x PCI Express x1 slot
(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)

Storage Information
M.2

* 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support)
* Actual support may vary by CPU.
* Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU.

SATA 4 x SATA 6Gb/s connectors
RAID

* Support for RAID 0, RAID 1, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Connector Information
Internal Connectors

* 1 x 24-pin ATX main power connector
* 1 x 8-pin ATX 12V power connector
* 1 x CPU fan header
* 1 x system fan header
* 1 x M.2 Socket 3 connector
* 4 x SATA 6Gb/s connectors
* 1 x front panel header
* 1 x front panel audio header
* 1 x S/PDIF Out header
* 1 x CPU cooler LED strip/RGB LED strip header
* 1 x USB 3.1 Gen 1 header
* 2 x USB 2.0/1.1 headers
* 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
* 1 x serial port header
* 1 x Clear CMOS jumper

Port Information
PS/2 Port

1 x PS/2 keyboard/mouse port

USB Port

* 4 x USB 3.1 Gen 1 ports
* 4 x USB 2.0/1.1 ports

HDMI Port 1 x HDMI port
DVI-D Port 1 x DVI-D port
LAN Port

* Realtek® GbE LAN chip (10/100/1000 Mbit)

* 1 x RJ-45 port

Audio Port

* Realtek® Audio CODEC
* High Definition Audio
* 2/4/5.1/7.1-channel
* Support for S/PDIF Out

Operating System
Supported OS

Support for Windows 10 64-bit

Warranty
Warranty

03 Year Warranty

Descripton:


Gigabyte B450M DS3H WIFI AMD AM4 Micro ATX Motherboard


This Gigabyte B450M DS3H Motherboard comes with AMD Socket AM4, AM4 Socket: AMD Ryzen 3rd Gen Ryzen/ 2nd Gen Ryzen RadeonAthlon with Radeon Vega Graphics Processors, Chipset AMD B450, AM4 Socket, Use of licensed AMI UEFI BIOS, Bios is 1 x 128 Mbit flash, PnP 1.0a, DMI 2.7, SM BIOS 2.7, WfM 2.0, ACPI 5.0 and 24.4cm x 21.5cm ATX Form Factor. B450M DS3H Gigabyte Motherboard Maximum 128 GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed 3600(O.C.)/ 3466(O.C.)/ 3200(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz. Buy Gigabyte B450M DS3H WIFI AMD AM4 Micro ATX Motherboard at the best price in BD.


For more Motherboard information Please Check Gigabyte MotherboardMSI MotherboardAsus MotherboardEsonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.


Gigabyte B450M DS3H WIFI AMD AM4 Micro ATX Motherboard comes with standard Graphics such as 1 x D-Sub port, supporting a maximum resolution of [email protected] Hz, supporting a maximum resolution of [email protected] Hz, The DVI-D port does not support D-Sub connection by the adapter, It is Support for HDMI 1.4 version and HDCP 2.2. Gigabyte B450M DS3H DDR4 Motherboard Expansion PCI slot is 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots, 4 x SATA 6 GB/s connectors, and 1. 1 x M.2 connector also various Internal Connectors such as 4 x 24-pin ATX main power connector, 1 x CPU fan header, 1 x front panel audio header, etc. B450M DS3H Gigabyte Motherboard has 5 x USB 3.2 Gen 1 ports, 6 x USB 2.0/1.1 ports, 1 x HDMI port, 1 x D-Sub port, Realtek GbE LAN chip (10/100/1000 Mbit), and High Definition Audio 2/4/5.1/7.1-channel. This Gigabyte B450M DS3H Motherboard Support for Windows 10 64-bit. You can enjoy a 03 Years Warranty. Buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
