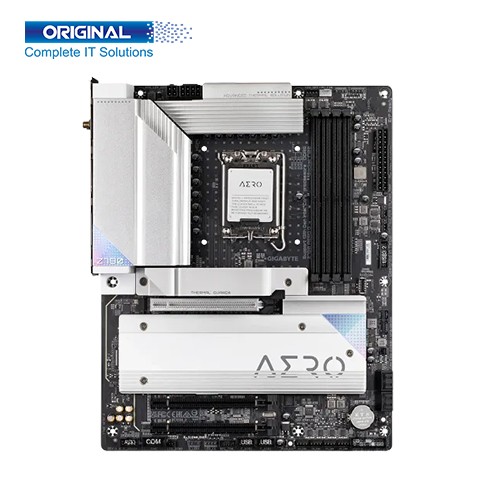

Gigabyte Z790 AERO G 13th & 12th Gen ATX Motherboard

Price :           To be announced
Status :           Out of Stock
Brand :           Gigabyte

Short Details:

  • • Model: Z790 AERO G
  • • Chipset: Intel Z790 Express
  • • Socket: LGA1700
  • • Form Factor: ATX Form Factor

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model Z790 AERO G
Brand Gigabyte
Supported Processor

LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold, and Celeron Processors

L3 cache varies with the CPU

Chipset Intel Z790 Express Chipset
Socket LGA1700
BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor ATX Form Factor; 30.5cm x 24.4cm
Memory Information
Memory Types DDR5
Channel Dual Channel
Slot 4 x DIMM
Supported Bus Speed

Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules

Maximum Memory 128 GB (32 GB single DIMM capacity)
Graphics Information
Graphics

Integrated Graphics Processor-Intel HD Graphics support:

1 x USB Type-C port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of [email protected] Hz

* Support for drawing tablets and [email protected] of power delivery.

* Support for DisplayPort 1.4 version and HDR.

1 x HDMI port, supporting a maximum resolution of [email protected] Hz

* Support for HDMI 2.0 version and HDCP 2.3.

Expansion Slots
PCI

1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)

Support for AMD CrossFire technology (PCIEX16 and PCIEX4)

Storage Information
M.2

1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)

1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)

1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)

SATA 4 x SATA 6Gb/s connectors
RAID

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Connector Information
Internal Connector

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

4 x system fan headers

2 x system fan/water cooling pump headers

2 x addressable LED strip headers

2 x RGB LED strip headers

5 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 2x2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x noise detection header

2 x Thunderbolt™ add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x serial port header

1 x Q-Flash Plus button

1 x reset button

1 x reset jumper

2 x temperature sensor headers

1 x Clear CMOS jumper

Port Information
USB Port

Chipset:

2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)

1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support

2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

2 x USB 3.2 Gen 1 ports available through the internal USB header

2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 3.2 Gen 1 Hub:

4 x USB 3.2 Gen 1 ports on the back panel

Chipset+USB 2.0 Hub:

4 x USB 2.0/1.1 ports available through the internal USB headers

HDMI Port 1 x HDMI 2.0 port
Display Port 1 x DisplayPort In port
SMA Antenna 2 x SMA antenna connectors (2T2R)
Optical S/PDIF 1 x optical S/PDIF Out connector
LAN Port

Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

1 x RJ-45 port

Audio Jack 2 x audio jacks
Other Information
Wireless & Bluetooth

Intel® Wi-Fi 6E AX211

WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

BLUETOOTH 5.3

Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Operating System
Supported OS

Windows 11 64-bit

Windows 10 64-bit

Warranty
Warranty 03 Years

Descripton:


Gigabyte Z790 AERO G 13th & 12th Gen ATX Motherboard


Gigabyte Z790 AERO G 13th & 12th Gen ATX Motherboard. AERO Series motherboards are a fresh approach to creators that evolve with optimized features for content creation. To deliver reliable computing performance, impressive connectivity, expandable graphics, and ultra-fast storage for creators to deal with heavy design workloads like 3D rendering and feature-length video production.


Gigabyte Z790 AERO G 13th & 12th Gen ATX Motherboard. The model is Z790 AERO G. The Motherboard Supports 13th and 12th Gen Intel® Core™ Series Processors. VisionLINK: One USB-C® Port for Video, Data Transfer, and Charging. Dual Channel DDR5: 4*SMD DIMMs with XMP Memory Module Support. Next Generation Storage: 1*PCIe 5.0 x4 and 4*PCIe 4.0 x4 M.2 Connectors. Advanced Thermal Design & M.2 Thermal Guard III: To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance. EZ-Latch Plus: M.2 Connectors with Quick Release & Screwless Design. Fast Networks : Intel® 2.5GbE LAN & Wi-Fi 6E 802.11ax. Extended Connectivity: DP IN, HDMI, Front USB-C® 20Gb/s Support. Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection. Q-Flash Plus: Update BIOS Without Installing the CPU, Memory, and Graphics Card. Supported Operating System Windows 11 64-bit & Windows 10 64-bit. Gigabyte Z790 AERO G 13th & 12th Gen ATX Motherboard comes with 03 years warranty.
