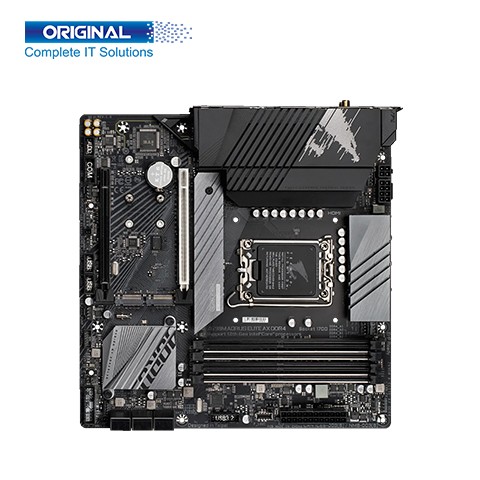

Gigabyte Z690M AORUS ELITE AX DDR4 ATX Motherboard

Price :           To be announced
Status :           Out of Stock
Brand :           Gigabyte
Product Code :           Z690M

Short Details:

  • • Model: Z690M AORUS ELITE AX
  • • Supported Processor: Support for 12th Generation
  • • Socket: LGA1700
  • • Form Factor: ATX

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model Z690M AORUS ELITE AX
Brand Gigabyte
Supported Processor Support for 12th Generation Intel Core i9 /Intel Core i7 /Intel Core i5 processors
Chipset Intel® Z690 Express Chipset
Socket LGA1700
BIOS

* 1 x 256 Mbit flash

* Use of licensed AMI UEFI BIOS

* PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor ATX Form Factor; 30.5cm x 24.4cm
Memory Information
Memory Type DDR4
Channel Dual-channel
Slot 4 x DDR4 DIMM sockets
Supported Bus Speed Supported Bus Speed DDR4 5333/ DDR4 5133/DDR4 5000/4933/4800/ 4700/ 4600/ 4500/ 4400/ 4300/4266/ 4133/ 4000/ 3866/ 3800/ 3733/ 3666/ 3600/ 3466/ 3400/ 3333/ 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
Maximum Memory UP to 128 GB
Graphics Information
Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

1 x HDMI port, supporting a maximum resolution of [email protected] Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support native HDMI 2.1 TMDS compatible ports.

1 x DisplayPort, supporting a maximum resolution of [email protected] Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)

Expansion Slots
PCI

1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

(The PCIEX16 slot conforms to PCI Express 5.0 standard.)

2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)

(The PCIEX4 slots conform to PCI Express 3.0 standard.)

Storage Information
M.2

1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)

2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2Q_SB/M2P_SB)

SATA 6 x SATA 6Gb/s connectors
RAID Support for RAID 0, RAID 1, RAID 5, and RAID 10
Connector Information
Internal Connectors

* 1 x 24-pin ATX main power connector

* 1 x 8-pin ATX 12V power connector

* 1 x 4-pin ATX 12V power connector

* 1 x CPU fan header

* 1 x water cooling CPU fan header

* 3 x system fan headers

* 1 x system fan/water cooling pump header

* 2 x addressable LED strip headers

* 2 x RGB LED strip headers

* 4 x M.2 Socket 3 connectors

* 6 x SATA 6Gb/s connectors

* 1 x front panel header

* 1 x front panel audio header

* 1 x USB Type-C® header, with USB 3.2 Gen 2 support

* 1 x USB 3.2 Gen 1 header

* 2 x USB 2.0/1.1 headers

* 2 x Thunderbolt™ add-in card connectors

* 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

* 1 x reset button

* 1 x Q-Flash Plus button

* 1 x reset jumper

* 1 x Clear CMOS jumper

Port Information

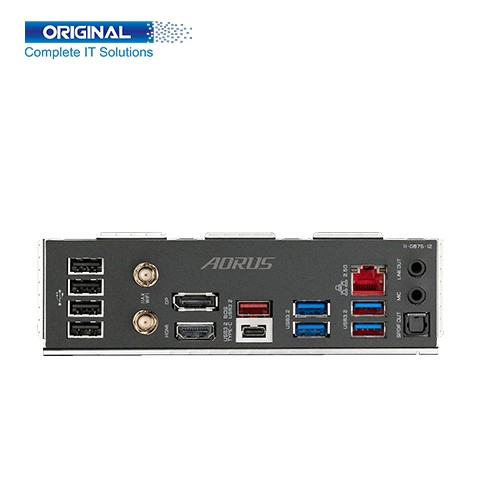

USB Port

* 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support

* 2 x USB 3.2 Gen 2 Type-A ports (red)

* 3 x USB 3.2 Gen 1 ports

* 4 x USB 2.0/1.1 ports

HDMI Port 1 x HDMI port
DisplayPort 1 x DisplayPort
LAN Port

1 x RJ-45 port

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Audio Port 2 x audio jacks
SMA Antenna 2 x SMA antenna connectors (2T2R)
S/PDIF 1 x optical S/PDIF Out connector
Other Information
Wi-Fi

* Intel® Wi-Fi 6 AX201:

* WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band

* BLUETOOTH 5.2

* Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Operating System
Supported OS

Windows 11 64-bit

Windows 10 64-bit

Warranty
Warranty 3 Years Warranty

Descripton:


Gigabyte Z690M AORUS ELITE AX DDR4 ATX Motherboard


The Gigabyte Z690M AORUS ELITE AX DDR4 ATX Motherboard with the Z690M AORUS gaming motherboard. Its delivery and dominant thermal design, glorified with the complete memory overclocking technology to crown your PC with the best Alder Lake's performance in all its gaming glory. Its ensure maximum Turbo Boost and overclocking performance of Intel's new generation CPU.



Gigabyte Z690M AORUS ELITE AX DDR4 ATX Motherboard Model is Z690M AORUS ELITE AX. The Brand is Gigabyte. The Motherboard Supported Processor 12th Generation Intel® Core™ i9/Core™ i7/Intel® Core™ i5 processors. Intel® Z690 Express Chipset. LGA1700 socket. BIOS 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. ATX Form Factor; 30.5cm x 24.4cm. Memory Type DDR4, Channel Dual channel, Slot 4 x DDR DIMM, Supported Bus Speed DDR4 5333/ DDR4 5133/DDR4 5000/4933/4800/ 4700/ 4600/ 4500/ 4400/ 4300/4266/ 4133/ 4000/ 3866/ 3800/ 3733/ 3666/ 3600/ 3466/ 3400/ 3333/ 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules. Maximum Memory up to 128 GB. Graphics 1 x HDMI port, supporting a maximum resolution of [email protected] Hz, Support for HDMI 2.1 version and HDCP 2.3, Support native HDMI 2.1 TMDS compatible ports, 1 x DisplayPort, supporting a maximum resolution of [email protected] Hz, Support for DisplayPort 1.2 version and HDCP 2.3. PCI. 1 x PCI Express x16 slot, running atx16 (PCIEX16), For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.), 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.). M.2 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU), 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB), 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2Q_SB/M2P_SB). SATA 6 x SATA 6Gb/s connectors. RAID Support for RAID 0, RAID 1, RAID 5, and RAID 10. Internal Connectors 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x 4-pin ATX 12V power connector, 1 x CPU fan header, 1 x water cooling CPU fan header, 3 x system fan headers, 1 x system fan/water cooling pump header, 2 x addressable LED strip headers, 2 x RGB LED strip headers, 4 x M.2 Socket 3 connectors, 6 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C® header, with USB 3.2 Gen 2 support, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 2 x Thunderbolt™ add-in card connectors, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), 1 x reset button, 1 x Q-Flash Plus button, 1 x reset jumper, 1 x Clear CMOS jumper. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support, 2 x USB 3.2 Gen 2 Type-A ports (red), 3 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 2 x SMA antenna connectors (2T2R), 1 x HDMI port, 1 x DisplayPort, 1 x RJ-45 port, 1 x optical S/PDIF Out connector, 2 x audio jacks. Support for Windows 11 64-bit, Windows 10 64-bit.

Gigabyte Z690M AORUS ELITE AX DDR4 ATX Motherboard has Three years warranty.
