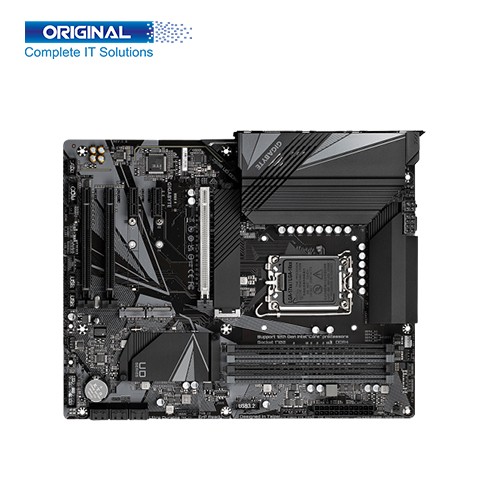

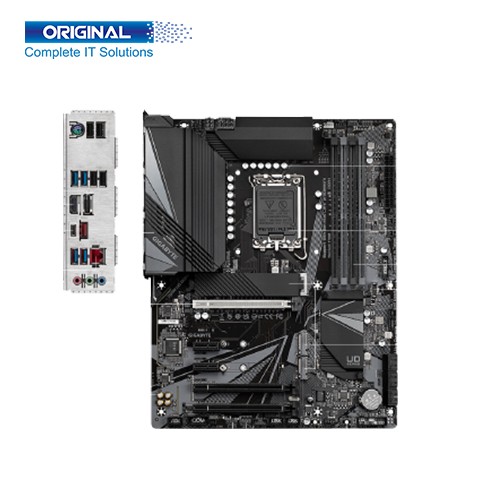

    Gigabyte Z690 UD DDR4 12th Gen ATX Motherboard

    Special Price :           ৳23,000
    Regular Price(EMI) :           ৳25,000
    Status :           In Stock
    Brand :           Gigabyte
    Product Code :           Z690 UD

    Short Details:

    • • Model: Z690 UD DDR4
    • • Chipset: Intel Z690 Express Chipset
    • • Socket: LGA1700
    • • Form Factor: ATX

    See More Details

    ৳23,000
    EMI Offer(EMI for 6 to 24 Months)
    Quantity
    General Information
    Model Z690 UD DDR4
    Brand Gigabyte
    Supported Processor 12th Generation Intel Core i9/ i7/ i5 processors
    Chipset Intel Z690 Express Chipset
    Socket LGA1700
    BIOS

    * 1 x 256 Mbit flash

    * Use of licensed AMI UEFI BIOS

    * PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Form Factor ATX Form Factor; 30.5cm x 24.4cm
    Memory Information
    Memory Type DDR4
    Channel Dual-channel
    Slot 4 x DDR4 DIMM
    Supported Bus Speed Support for DDR4 5333/ DDR4 5133/DDR4 5000/4933/4800/ 4700/ 4600/ 4500/ 4400/ 4300/4266/ 4133/ 4000/ 3866/ 3800/ 3733/ 3666/ 3600/ 3466/ 3400/ 3333/ 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
    Maximum Memory Up to 128 GB
    Graphics Information
    Graphics

    * 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

    * Support for HDMI 2.1 version and HDCP 2.3.

    * Support native HDMI 2.1 TMDS compatible ports.

    1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

    * Support for DisplayPort 1.2 version and HDCP 2.3

    Expansion Slots
    PCI

    * 1 x PCI Express x16 slot, running at x16 (PCIEX16)

    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    (The PCIEX16 slot conforms to PCI Express 5.0 standard.)

    * 1 x PCI Express x16 slot, running at x4 (PCIEX4)

    * 1 x PCI Express x16 slot, running at x1 (PCIEX1_4)

    * 2 x PCI Express x1 slots

    (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)

    Storage Information
    M.2

    * 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

    * 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

    * 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)

    SATA 6 x SATA 6Gb/s connectors
    RAID Support for RAID 0, RAID 1, RAID 5, and RAID 10
    Connector Information
    Internal Connectors

    * 1 x 24-pin ATX main power connector

    * 1 x 8-pin ATX 12V power connector

    * 1 x 4-pin ATX 12V power connector

    * 1 x CPU fan header

    * 1 x water cooling CPU fan header

    * 3 x system fan headers

    * 1 x system fan/water cooling pump header

    * 2 x addressable LED strip headers

    * 2 x RGB LED strip headers

    * 3 x M.2 Socket 3 connectors

    * 6 x SATA 6Gb/s connectors

    * 1 x front panel header

    * 1 x front panel audio header

    * 1 x S/PDIF Out header

    * 1 x USB Type-C® header, with USB 3.2 Gen 1 support

    * 1 x USB 3.2 Gen 1 header

    * 2 x USB 2.0/1.1 headers

    * 1 x serial port header

    * 2 x Thunderbolt™ add-in card connectors

    * 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

    * 1 x reset button

    * 1 x reset jumper

    * 1 x Q-Flash Plus button

    * 1 x Clear CMOS jumper

    Port Information
    PS/2 Port 1 x PS/2 keyboard/mouse port
    USB Port

    * 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support

    * 1 x USB 3.2 Gen 2 Type-A port (red)

    * 4 x USB 3.2 Gen 1 ports

    * 4 x USB 2.0/1.1 ports

    HDMI Port 1 x HDMI Port
    Display Port 1 x DisplayPort
    LAN Port

    * 1 x RJ-45 port

    * Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

    Audio Jack 3 x audio jacks
    Operating System
    Supported OS Windows 10 64-bit
    Warranty
    Warranty 3 Years Warranty

    Descripton:


    Gigabyte Z690 UD DDR4 12th Gen ATX Motherboard


    The Gigabyte Z690 UD DDR4 12th Gen ATX Motherboard with the Z690 UD motherboard. Its delivery and dominant thermal design, glorified with the complete memory overclocking technology to crown your PC with the best Alder Lake's performance in all its gaming glory. It ensures maximum Turbo Boost and overclocking performance of Intel's new generation CPU.


    Gigabyte Z690 UD DDR4 12th Gen ATX Motherboard Model is Z690 UD DDR4. The Brand is Gigabyte. The Motherboard Supported Processor 12th Generation Intel Core i9 processors/ i7/ i5 processors. Chipset Intel Z690 Express Chipset. Socket LGA1700. BIOS 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. Form Factor ATX Form Factor; 30.5cm x 24.4cm. Memory Type DDR4 Dual-channel. Slot 4 x DDR4 DIMM. Supported Bus Speed Support for DDR4 5333/ DDR4 5133/DDR4 5000/4933/4800/ 4700/ 4600/ 4500/ 4400/ 4300/4266/ 4133/ 4000/ 3866/ 3800/ 3733/ 3666/ 3600/ 3466/ 3400/ 3333/ 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules. Maximum Memory Up to 128 GB. Graphics 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Support for HDMI 2.1 version and HDCP 2.3. Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz, Support for DisplayPort 1.2 version and HDCP 2.3. 1 x PCI Express x16 slot, running at x16 (PCIEX16), For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.), 1 x PCI Express x16 slot, running at x4 (PCIEX4), 1 x PCI Express x16 slot, running at x1 (PCIEX1_4), 2 x PCI Express x1 slots, (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU), 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB), 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB). 6 x SATA 6Gb/s connectors. Support for RAID 0, RAID 1, RAID 5, and RAID 10. 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector, 1 x 4-pin ATX 12V power connector, 1 x CPU fan header, 1 x water cooling CPU fan header, 3 x system fan headers, 1 x system fan/water cooling pump header, 2 x addressable LED strip headers, 2 x RGB LED strip headers, 3 x M.2 Socket 3 connectors, 6 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x USB Type-C® header, with USB 3.2 Gen 1 support, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x serial port header, 2 x Thunderbolt™ add-in card connectors, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), 1 x reset button, 1 x reset jumper, 1 x Q-Flash Plus button, 1 x Clear CMOS jumper. 1 x PS/2 keyboard/mouse port. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support, 1 x USB 3.2 Gen 2 Type-A port (red), 4 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports. 1 x HDMI Port. 1 x DisplayPort. 1 x RJ-45 port. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps). 3 x audio jacks. Supported Operating System Windows 10 64-bit.

    Gigabyte Z590 D Intel 10th and 11th Gen ATX Motherboard has Three years warrnaty.
