| Price | : | To be announced |
| Status | : | Up Comming |
| Brand | : | Gigabyte |
| Product Code | : | Z690 Gaming X |
| General Information | ||

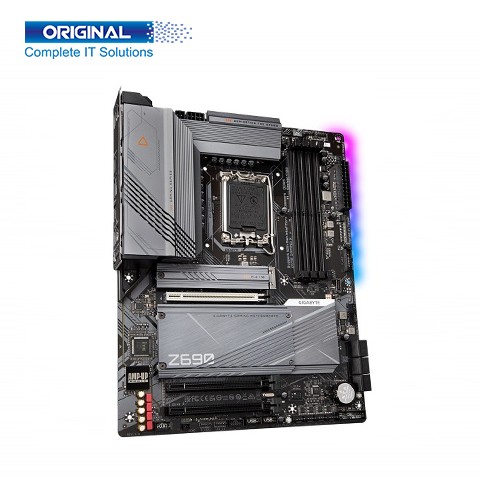

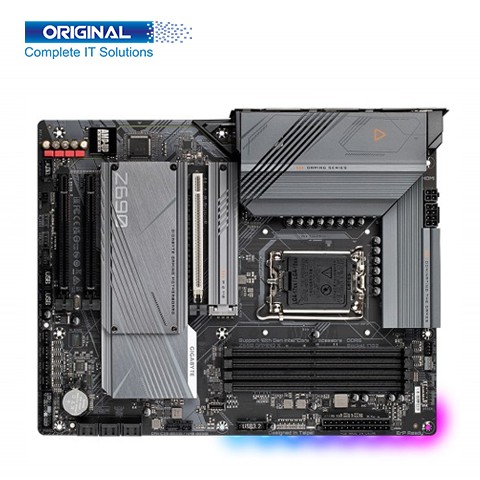

| Model | Gigabyte Z690 Gaming X | |
| Brand | Gigabyte | |
| Supported Processor | LGA1700 socket: Support for 12th Generation Intel Core i9, i7, i5 processors L3 cache varies with CPU | |
| Chipset | Intel Z690 Express Chipset | |
| Socket | LGA1700 | |
| Bios | * 1 x 256 Mbit flash
* Use of licensed AMI UEFI BIOS
* PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Memory Information | ||
| Memory Types | DDR5 | |
| Channel | Dual-channel | |
| Slot | 4 x DIMM | |
| Supported Bus Speed | * Support for DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
* Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
* Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
* Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | Up to 128 GB (32 GB single DIMM capacity) | |
| Graphics Information | ||
| Graphics | * Integrated Graphics Processor-Intel® HD Graphics support:
* 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
* Support native HDMI 2.1 TMDS compatible ports.
* 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3 |
|
| Expansion Slots | ||
| PCI | * 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.)
* 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.) |
|
| Storage Information | ||
| M.2 | * M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
* Chipset:
* 2 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
* 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) |
|
| SATA | 6 x SATA 6Gb/s connectors | |
| RAID | Support for RAID 0, RAID 1, RAID 5, and RAID 10 | |
| Connector Information | ||
| Internal Connectors | * 1 x 24-pin ATX main power connector * 1 x 8-pin ATX 12V power connector * 1 x 4-pin ATX 12V power connector * 1 x CPU fan header * 1 x water cooling CPU fan header * 3 x system fan headers * 1 x system fan/water cooling pump header * 2 x addressable LED strip headers * 2 x RGB LED strip headers * 4 x M.2 Socket 3 connectors * 6 x SATA 6Gb/s connectors * 1 x front panel header * 1 x front panel audio header * 1 x USB Type-C® header, with USB 3.2 Gen 2 support * 1 x USB 3.2 Gen 1 header * 2 x USB 2.0/1.1 headers * 2 x Thunderbolt™ add-in card connectors * 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) * 1 x reset button * 1 x reset jumper * 1 x Q-Flash Plus button * 1 x Clear CMOS jumper |
|

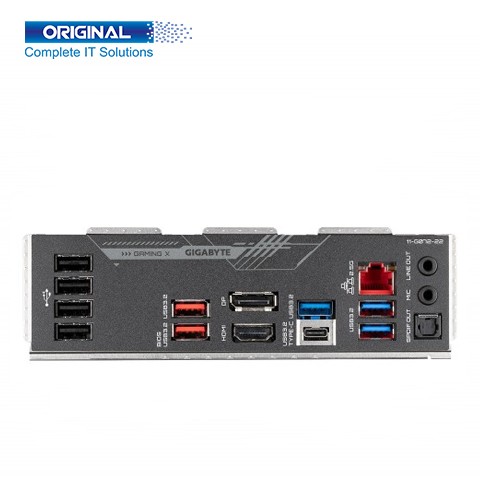

| Port Information | ||
| HDMI Port | 1 x HDMI port | |
| USB Port | * 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
* 2 x USB 3.2 Gen 2 Type-A ports (red)
* 3 x USB 3.2 Gen 1 ports
* 4 x USB 2.0/1.1 ports |
|
| Display Port | 1 x DisplayPort | |
| LAN Port | * Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
* 1 x RJ-45 port |
|
| Audio Port | * Realtek® ALC1220-VB CODEC
* 2 x audio jacks |
|
| S/PDIF Port | 1 x optical S/PDIF Out connector | |
| Unique Information | ||
| Unique Features | * Support for APP Center
* Available applications in APP Center may vary by motherboard model
* Supported functions of each application may also vary depending on
* motherboard specifications.
* @BIOS
* EasyTune
* Fast Boot
* Game Boost
* ON/OFF Charge
* RGB Fusion
* Smart Backup
* System Information Viewer
* Support for Q-Flash Plus
* Support for Q-Flash
* Support for Xpress Install |
|
| Operating Systems | ||
| Supported OS | * Support for Windows 11 64-bit
* Support for Windows 10 64-bit |
|
| Warranty | ||
| Warranty | 3 Years Warranty | |
The Gigabyte Z690 Gaming X DDR5 12th Gen ATX Motherboard with the Z690M Gaming X motherboard. Its delivery and dominant thermal design, are glorified with the complete memory overclocking technology to crown your PC with the best Alder Lake performance in all its gaming glory. It ensures maximum Turbo Boost and overclocking performance of Intel's new generation CPU. Buy Gigabyte Z690 Gaming X DDR5 12th Gen ATX Motherboard at the best price in BD.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
Gigabyte Z690 Gaming X DDR5 12th Gen ATX Motherboard. The Supported Processor is LGA1700 socket: Support for 12th Generation Intel Core i9, i7, i5 processors L3 cache varies with CPU, Chipset Intel Z690 Express Chipset, Socket LGA1700, Bios * 1 x 256 Mbit flash, * Use of licensed AMI UEFI BIOS, * PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, Form Factor ATX Form Factor; 30.5cm x 24.4cm. It is Memory Types DDR5, Channel Dual-channel, Slot 4 x DIMM, Supported Bus Speed * Support for DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules, * Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), * Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, * Support for Extreme Memory Profile (XMP) memory modules, Maximum Memory Up to 128 GB (32 GB single DIMM capacity). This is Graphics * Integrated Graphics Processor-Intel® HD Graphics support * 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz,* Support for HDMI 2.1 version and HDCP 2.3., * Support native HDMI 2.1 TMDS compatible ports, * 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz, * Support for DisplayPort 1.2 version and HDCP 2.3.Port Information is HDMI Port 1 x HDMI port, USB Port * 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support, * 2 x USB 3.2 Gen 2 Type-A ports (red), * 3 x USB 3.2 Gen 1 ports, * 4 x USB 2.0/1.1 ports, Display Port 1 x DisplayPort, LAN Port * Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps), * 1 x RJ-45 port, Audio Port * Realtek® ALC1220-VB CODEC, * 2 x audio jacks, S/PDIF Port 1 x optical S/PDIF Out connector, Supported OS* Support for Windows 11 64-bit, * Support for Windows 10 64-bit. The Gigabyte Z690 Gaming X DDR5 12th Gen ATX Motherboard has a 3 Years Warranty.
