Gigabyte Z690 AORUS PRO DDR5 12th Gen ATX Motherboard

Price :           To be announced
Status :           Out of Stock
Brand :           Gigabyte
Product Code :           Z690 AORUS PRO

Short Details:

  • • Model: Gigabyte Z690 AORUS PRO
  • • Chipset: Intel Z690 Express Chipset
  • • Socket:LGA1700
  • • Form Factor: ATX Form Factor; 30.5cm x 24.4cm

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model Gigabyte Z690 AORUS PRO
Brand Gigabyte
Supported Processor Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors
Chipset Intel Z690 Express Chipset
Socket LGA1700
BIOS

* 1 x 256 Mbit flash

* Use of licensed AMI UEFI BIOS

* PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor ATX Form Factor; 30.5cm x 24.4cm
Memory Information
Memory Types DDR5
Channel Dual channel
Slot 4 x DIMM
Supported Bus Speed

* Support for DDR5 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules

* Dual-channel memory architecture

* Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

* Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

* Support for Extreme Memory Profile (XMP) memory modules

Maximum Memory Up to 128 GB (32 GB single DIMM capacity)
Graphics Information
Graphics

Integrated Graphics Processor-Intel HD Graphics support:

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

Expansion Slots
PCI

1 x PCI Express x16 slot, running at x16 (PCIEX16)

(The PCIEX16 slot conforms to PCI Express 5.0 standard.)

2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)

(The PCIEX4 slots conform to PCI Express 3.0 standard.)

Storage Information
M.2 4 x M.2 Socket 3 connectors
SATA 6 x SATA 6Gb/s connectors
RAID Support for RAID 0, RAID 1, RAID 5, and RAID 10
Connector Information
Internal Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

4 x system fan headers

2 x system fan/water cooling pump headers

2 x addressable LED strip headers

2 x RGB LED strip headers

4 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 2x2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x noise detection header

2 x Thunderbolt™ add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x power button

1 x reset button

1 x Q-Flash Plus button

2 x temperature sensor headers

1 x reset jumper

1 x Clear CMOS jumper

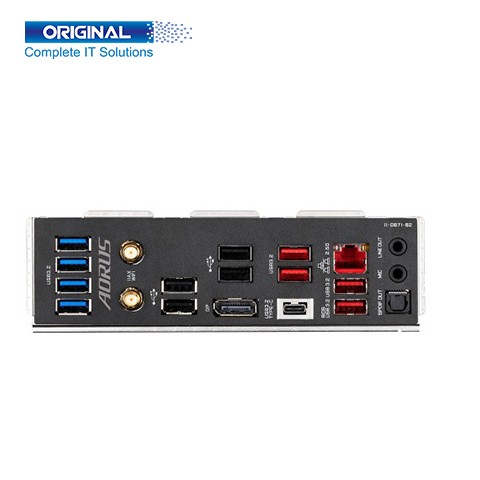

Port Information
USB Port

2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)

4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+2 USB 3.2 Gen 1 Hubs:

6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hub:

8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)


LAN Port Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Audio Port

* Realtek® ALC4080 CODEC

* High Definition Audio

* 2-channel analog output

* Support for S/PDIF Out 7.1-channel digital signals

Display Port 1 x DisplayPort
Q-Flash Plus Button 1 x Q-Flash Plus button
Clear CMOS Button 1 x Clear CMOS jumper
Operating System
Supported OS

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Warranty
Warranty 3 years

Description:


Gigabyte Z690 AORUS PRO DDR5 12th Gen ATX Motherboard


Gigabyte Z690 AORUS PRO DDR5 12th Gen ATX Motherboard is featured with Direct 16+1+2  Phases Digital VRM Design, DDR5 XTREME MEMORY Design, Fins- Array III Heatsink, Direct-Touch Heatpipe II, Nano Carbon Baseplate, M. 2 Thermal Guard III, 125dB ESS Sabre Audio, Intel WIFI 6E802.11 layoff, AQUANTIA 10GbE LAN. It's supported with an LGA1700 socket Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors. It comes with Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs. Buy Gigabyte Z690 AORUS PRO DDR5 12th Gen ATX Motherboard at the best price in BD.


For more Motherboard information Please Check Gigabyte MotherboardMSI MotherboardAsus MotherboardEsonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.


Gigabyte Z690 AORUS PRO DDR5 12th Gen ATX Motherboard Supported Processor Support for 12th Generation Intel Core i9 processors /Intel Core i7,processors/Intel Core i5 processors, Chipset Intel Z690 Express Chipset Socket LGA1700,BIOS 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0,Form Factor ATX Form Factor; 30.5cm x 24.4cm,Memory Types DDR5,Channel Dual channel, Slot 4 x DIMM, Supported Bus Speed Support for DDR5 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules, Dual-channel memory architecture, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode),Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules, Maximum Memory Up to 128 GB (32 GB single DIMM capacity)Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz, Support for DisplayPort 1.2 version and HDCP 2.3,Support for AMD Quad-GPU Cross Fire and 2-Way AMD Cross Fire technologies, PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16),(The PCIEX16 slot conforms to PCI Express 5.0 standard.),2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2),(The PCIEX4 slots conform to PCI Express 3.0 standard.). The motherboarad M.2 4 x M.2 Socket 3 connectors, SATA 6 x SATA 6Gb/s connectors RAID Support for RAID 0, RAID 1, RAID 5, and RAID 10,Internal Connectors 1 x 24-pin ATX main power connector,1 x 8-pin ATX 12V power connector,1 x 4-pin ATX 12V power connector,1 x CPU fan header,1 x water cooling CPU fan header,4 x system fan headers,2 x system fan/water cooling pump headers,2 x addressable LED strip headers,2 x RGB LED strip headers,4 x M.2 Socket 3 connectors,6 x SATA 6Gb/s connectors,1 x front panel header,1 x front panel audio header,1 x USB Type-C® header, with USB 3.2 Gen 2x2 support,1 x USB 3.2 Gen 1 header,2 x USB 2.0/1.1 headers,1 x noise detection header,2 x Thunderbolt™ add-in card connectors,1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only),1 x power button,1 x reset button,1 x Q-Flash Plus button,2 x temperature sensor headers,1 x reset jumper,1 x Clear CMOS jumper. The USB Port 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header),4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel, Chipset+2 USB 3.2 Gen 1 Hubs:6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header), Chipset+2 USB 2.0 Hub:8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers), LAN Port Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)Audio Port Realtek® ALC4080 CODEC, High Definition Audio,2-channel analog output, Support for S/PDIF Out 7.1-channel digital signals, Display Port 1 x Display Port, Q-Flash Plus Button 1 x Q-Flash Plus button, Clear CMOS Button 1 x Clear CMOS jumper, Supported OS Support for Windows 11 64-bit, Support for Windows 10 64-bit. Gigabyte Z690 AORUS PRO DDR5 12th Gen ATX Motherboard 3 years Warranty.
