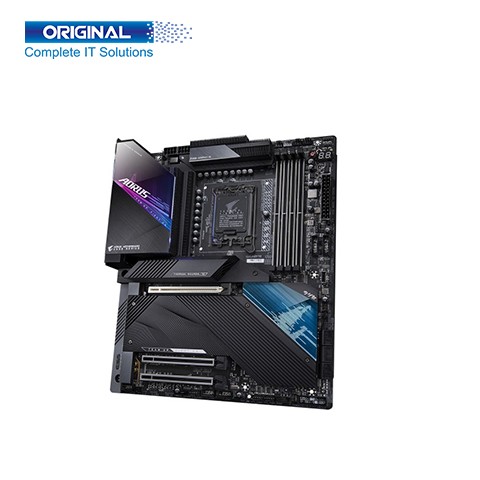

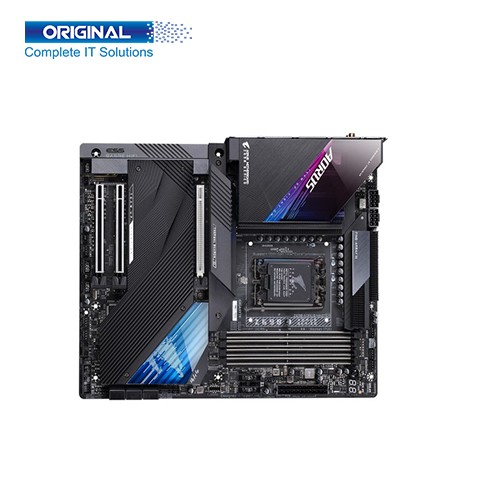

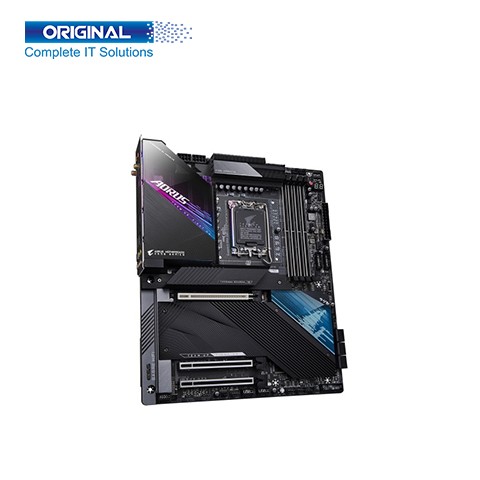

Gigabyte Z690 AORUS MASTER DDR5 12th Gen E-ATX Motherboard

Price :           To be announced
Status :           Out of Stock
Brand :           Gigabyte
Product Code :           Z690 AORUS MASTER

Short Details:

  • • Model: Z690 AORUS MASTER
  • • Chipset: Intel Z690 Express Chipset
  • • Socket: LGA1700
  • • Form Factor: E-ATX Form Factor; 30.5cm x 25.9cm

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model Z690 AORUS MASTER
Brand Gigabyte
Supported Processor Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors
Chipset Intel Z690 Express Chipset
Socket LGA1700
BIOS

* 1 x 256 Mbit flash

* Use of licensed AMI UEFI BIOS

* PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor E-ATX Form Factor; 30.5cm x 25.9cm
Memory Information
Memory Types DDR5
Channel Dual channel
Slot 4 x DIMM Slots
Supported Bus Speed

* Support for DDR5 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules

* Dual channel memory architecture

* Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

* Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

* Support for Extreme Memory Profile (XMP) memory modules

Maximum Memory Up to 128 GB (32 GB single DIMM capacity)
Graphics Information
Graphics

Integrated Graphics Processor-Intel HD Graphics support:

1 x DisplayPort, supporting a maximum resolution of [email protected] Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

Expansion Slots
PCI


1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

(The PCIEX16 slot conforms to PCI Express 5.0 standard.)

2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)

* The PCIEX4_1 slot shares bandwidth with the M2C_SB connector. The PCIEX4_1 slot becomes unavailable when a device is installed in the M2C_SB connector.

(The PCIEX4 slots conform to PCI Express 3.0 standard.)

Storage Information
M.2 5 x M.2 Socket 3 connectors
SATA 6 x SATA 6Gb/s connectors
RAID Support for RAID 0, RAID 1, RAID 5, and RAID 10
Connector Information
Internal Connectors

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x CPU fan header

1 x water cooling CPU fan header

4 x system fan headers

4 x system fan/water cooling pump headers

2 x addressable LED strip headers

2 x RGB LED strip headers

5 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 2x2 support

2 x USB 3.2 Gen 1 headers

2 x USB 2.0/1.1 headers

1 x noise detection header

2 x Thunderbolt™ add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x power button

1 x reset button

1 x reset jumper

1 x Clear CMOS jumper

2 x temperature sensor headers

Voltage Measurement Points

Port Information

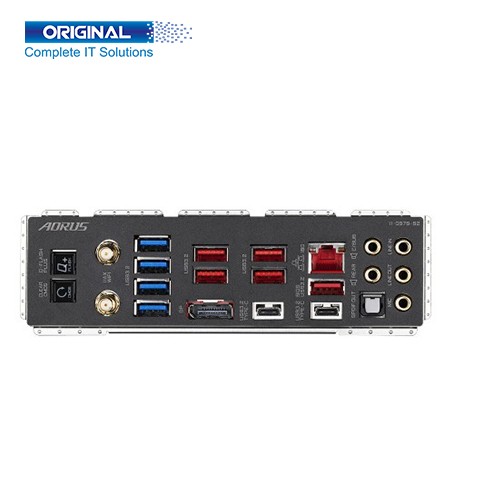

USB Port

2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support

(1 port on the back panel, 1 port available through the internal USB header)

3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+USB 3.2 Gen 2 Hub:

1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support

2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+2 USB 3.2 Gen 1 Hubs:

8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Chipset+USB 2.0 Hub:

4 x USB 2.0/1.1 ports available through the internal USB headers

LAN Port Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Audio Port Realtek® ALC1220-VB CODEC * The front panel line out jack supports DSD audio. ESS ES9118 DAC chip Support for DTS:X® Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Display Port 1 x DisplayPort, supporting a maximum resolution of [email protected] Hz
Q-Flash Plus Button 1 x Q-Flash Plus button
Clear CMOS Button 1 x Clear CMOS button
Operating System
Supported OS


Support for Windows 11 64-bit

Support for Windows 10 64-bit

Warranty
Warranty 03 Years

Descripton:


Gigabyte Z690 AORUS MASTER DDR5 12th Gen E-ATX Motherboard


Gigabyte Z690 AORUS MASTER DDR5 12th Gen E-ATX Motherboard is featured with Direct 19 1 2 Phases Digital VRM Design, DDR5 XTREME MEMORY Design, Fins- Array III Heatsink, Direct-Touch Heatpipe II, NanoCarbon Base plate, M. 2 Thermal Guard III, 125dB ESS Sabre Audio, Intel WIFI 6E802.11 layoff, AQUANTIA 10GbE LAN. It's supported with an LGA1700 socket Support for 12th Generation Intel Core i5 processors. It comes with Dual Channe lNon-ECC Unbuffered DDR5, 4 DIMMs.


Gigabyte Z690 AORUS MASTER DDR5 12th Gen E-ATX Motherboard Supported Processor Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors, Chipset Intel Z690 Express Chipset Socket LGA1700, BIOS 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, Form Factor E-ATX Form Factor; 30.5cm x 25.9cm.Memory Types DDR5, Channel Dual channel, Slot 4 x DIMM Slots. Supported Bus Speed Support for DDR5 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules, Dual channel memory architecture, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules, Maximum Memory Up to 128 GB (32 GB single DIMM capacity). This motherboard Graphics Integrated Graphics Processor-Intel HD Graphics support:1 x DisplayPort, supporting a maximum resolution of [email protected] Hz, Support for DisplayPort 1.2 version and HDCP 2.3, Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies, PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16),For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.(The PCIEX16 slot conforms to PCI Express 5.0 standard.),2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2), The PCIEX4_1 slot shares bandwidth with the M2C_SB connector. The PCIEX4_1 slot becomes unavailable when a device is installed in the M2C_SB connector.M.2 5 x M.2 Socket 3 connectors, SATA 6 x SATA 6Gb/s connectors, RAID Support for RAID 0, RAID 1, RAID 5, and RAID 10. The Internal Connectors 1 x 24-pin ATX main power connector,2 x 8-pin ATX 12V power connectors,1 x CPU fan header,1 x water cooling CPU fan header 4 x system fan headers,4 x system fan/water cooling pump headers,2 x addressable LED strip headers,2 x RGB LED strip headers,5 x M.2 Socket 3 connectors,6 x SATA 6Gb/s connectors,1 x front panel header,1 x front panel audio header,1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers,2 x USB 2.0/1.1 headers,1 x noise detection header,2 x Thunderbolt™ add-in card connectors,1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only),1 x power button,1 x reset button,1 x reset jumper,1 x Clear CMOS jumper,2 x temperature sensor headers, Voltage Measurement Points. USB Port 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support(1 port on the back panel, 1 port available through the internal USB header),3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel, Chipset +USB 3.2 Gen 2 Hub:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support,2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel, Chipset+2 USB 3.2 Gen 1 Hubs:8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Chipset+ USB 2.0 Hub:4 x USB 2.0/1.1 ports available through the internal USB headers, LAN Port Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) Audio Port Realtek® ALC1220-VB CODEC * The front panel line out jack supports DSD audio. ESS ES9118 DAC chip Support for DTS: X® Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out Display Port 1 x DisplayPort, supporting a maximum resolution of [email protected] Hz, Q-Flash Plus Button 1 x Q-Flash Plus button, Clear CMOS Button 1 x Clear CMOS button. The Supported OS Support for Windows 11 64-bit, Support for Windows 10 64-bit.Gigabyte Z690 AORUS MASTER DDR5 12th Gen E-ATX Motherboard 03 Years Warranty.
