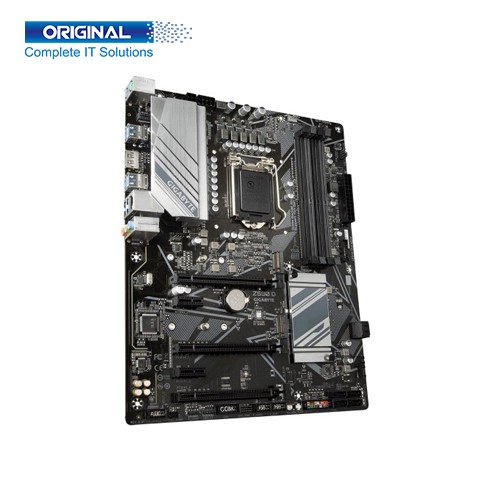

Gigabyte Z590 D Intel 10th and 11th Gen ATX Motherboard

Price :           To be announced
Status :           Out of Stock
Brand :           Gigabyte
Product Code :           Z590 D

Short Details:

  • • Model: Z590 D
  • • Chipset: Intel® Z590 Express Chipset
  • • Socket: LGA1200
  • • Form Factor: ATX

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model Z590 D
Brand Gigabyte
Supported Processor

* 11th Generation Intel® Core™ i9 processors / i7/ i5 processors

* 10th Generation Intel® Core™ i9 processors / i7/ i5 processors / i3/ Pentium® / Celeron® processors*

* Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.

* L3 cache varies with CPU

Chipset Intel® Z590 Express Chipset
Socket LGA1200
BIOS

* 1 x 256 Mbit flash

* Use of licensed AMI UEFI BIOS

* PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor ATX Form Factor; 30.5cm x 24.4cm
Memory Information
Memory Type DDR4
Channel Dual-channel
Slot 4 x DDR4 DIMM
Supported Bus Speed

* 11th Generation Intel® Core™ i9/i7/i5 processors:Support for DDR4 5333/ DDR4 5133/ DDR4 5000/ 4933/ 4800/ 4700/ 4600/ 4500/ 4400/ 4300/ 4266/ 4133/ 4000/ 3866/ 3800/ 3733/ 3666/ 3600/ 3466/ 3400/ 3333/ 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz

* 10th Generation Intel® Core™ i9/i7 processors:

* Support for DDR4 2933/2666/2400/2133 MHz memory modules

* 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:

* Support for DDR4 2666/2400/2133 MHz memory modules

Maximum Memory Up to 128 GB
Graphics Information
Graphics

* Integrated Graphics Processor-Intel® HD Graphics support:

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

Expansion Slots
PCI

* 1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

* (The PCIEX16 slot conforms to PCI Express 4.0 standard.)

* 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)

* 2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2)

* (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)

Storage Information
M.2

* 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)

* 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)

SATA 6 x SATA 6Gb/s connectors
RAID Support for RAID 0, RAID 1, RAID 5, and RAID 10
Connector Information
Internal Connectors

* 1 x 24-pin ATX main power connector

* 1 x 8-pin ATX 12V power connector

* 1 x 4-pin ATX 12V power connector

* 1 x CPU fan header

* 3 x system fan headers

* 1 x addressable LED strip header

* 1 x RGB LED strip header

* 2 x M.2 Socket 3 connectors

* 6 x SATA 6Gb/s connectors

* 1 x front panel header

* 1 x front panel audio header

* 1 x S/PDIF Out header

* 1 x USB 3.2 Gen 1 header

* 2 x USB 2.0/1.1 headers

* 2 x Thunderbolt™ add-in card connectors

* 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

* 1 x serial port header

* 1 x Clear CMOS jumper

* 1 x Q-Flash Plus button

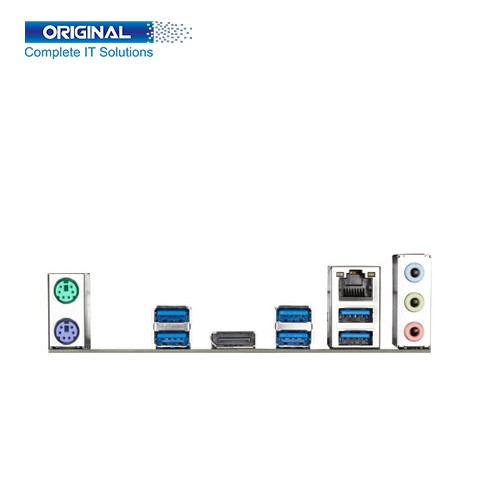

Port Information
PS/2 Port

* 1 x PS/2 mouse port

* 1 x PS/2 Keyboard port

USB Port 6 x USB 3.2 Gen 1 ports
Display Port 1 x DisplayPort
LAN Port

* 1 x RJ-45 port

Realtek® GbE LAN chip (1 Gbit/100 Mbit)

Audio Jack 3 x audio jacks
Operating System
Supported OS Windows 10 64-bit
Warranty
Warranty 3 Years Warranty

Description:


Gigabyte Z590 D Intel 10th and 11th Gen ATX Motherboard


The Gigabyte Z590 D Intel 10th and 11th Gen ATX Motherboard with the Z590 D motherboard. Its delivery and dominant thermal design, are glorified with the complete memory overclocking technology to crown your PC with the best Alder Lake performance in all its gaming glory. It ensures maximum Turbo Boost and overclocking performance of Intel's new generation CPU. Buy Gigabyte Z590 D Intel 10th and 11th Gen ATX Motherboard at the best price in BD.


For more Motherboard information Please Check Gigabyte MotherboardMSI MotherboardAsus MotherboardEsonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.


Gigabyte Z590 D Intel 10th and 11th Gen ATX Motherboard Model is Z590 D. The Brand is Gigabyte. The Motherboard Supported Processor 11th Generation Intel® Core™ i9 processors / i7/ i5 processors, 10th Generation Intel® Core™ i9 processors / i7/ i5 processors / i3/ Pentium® / Celeron® processors, Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family, L3 cache varies with CPU. Chipset Intel® Z590 Express Chipset. Socket LGA1200. BIOS 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. ATX Form Factor; 30.5cm x 24.4cm. Memory Type DDR4. Dual-channel. Slot 4 x DDR4 DIMM. Supported Bus Speed 11th Generation Intel® Core™ i9/i7/i5 processors:Support for DDR4 5333/ DDR4 5133/ DDR4 5000/ 4933/ 4800/ 4700/ 4600/ 4500/ 4400/ 4300/ 4266/ 4133/ 4000/ 3866/ 3800/ 3733/ 3666/ 3600/ 3466/ 3400/ 3333/ 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz, 10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules, 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules. Maximum Memory Up to 128 GB. Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz, Support for DisplayPort 1.2 version and HDCP 2.3. PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16), For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot, (The PCIEX16 slot conforms to PCI Express 4.0 standard.), 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2), 2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2), (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.). M.2 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU), 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB). 6 x SATA 6Gb/s connectors. Support for RAID 0, RAID 1, RAID 5, and RAID 10. Internal Connectors 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x 4-pin ATX 12V power connector, 1 x CPU fan header, 3 x system fan headers, 1 x addressable LED strip header, 1 x RGB LED strip header, 2 x M.2 Socket 3 connectors, 6 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 2 x Thunderbolt™ add-in card connectors, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), 1 x serial port header, 1 x Clear CMOS jumper, 1 x Q-Flash Plus button. 1 x PS/2 mouse port, 1 x PS/2 Keyboard port, 6 x USB 3.2 Gen 1 ports, 1 x DisplayPort, 1 x RJ-45 port, Realtek® GbE LAN chip (1 Gbit/100 Mbit), 3 x audio jacks. Supported OS Windows 10 64-bit. Gigabyte Z590 D Intel 10th and 11th Gen ATX Motherboard has Three years warranty.
