Gigabyte Z590 AORUS ELITE ATX Motherboard

Price :           To be announced
Status :           Out of Stock
Brand :           Gigabyte
Product Code :           Z590 AORUS ELITE

Short Details:

  • • Model: Z590 AORUS ELITE
  • • Chipset: Intel Z590 Express Chipset
  • • Socket: LGA1200
  • • Form Factor: ATX Form Factor; 30.5cm x 24.4cm

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model Z590 AORUS ELITE
Brand Gigabyte
Supported Processor

11th Generation Intel® Core™ i9/ i7/ i5 processors

10th Generation Intel® Core™ i9 processors / i7/ i5/ i3/ Pentium® / Celeron® processors*

* Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.

L3 cache varies with CPU

Chipset Intel Z590 Express Chipset
Socket LGA1200
BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor ATX Form Factor; 30.5cm x 24.4cm
Memory Information
Memory Type DDR4
Channel Dual-Channel
Slot 4 x DDR DIMM
Supported Bus Speed

11th Generation Intel® Core™ i9/i7/i5 processors:

Support for DDR4 5400/ DDR4 5333/ DDR4 5133/DDR4 5000/4933/4800/ 4700/ 4600/ 4500/ 4400/ 4300/4266/ 4133/ 4000/ 3866/ 3800/ 3733/ 3666/ 3600/ 3466/ 3400/ 3333/ 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules

10th Generation Intel® Core™ i9/i7 processors:

Support for DDR4 2933/2666/2400/2133 MHz memory modules

10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors:

Support for DDR4 2666/2400/2133 MHz memory modules

Maximum Memory Up to 128 GB
Graphics Information
Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

1 x DisplayPort, supporting a maximum resolution of [email protected] Hz

* Support for DisplayPort 1.2 version and HDCP 2.3.

Expansion Slots
PCI

1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

(The PCIEX16 slot conforms to PCI Express 4.0 standard.)*

*Supported by 11th Generation processors only.

1 x PCI Express x16 slot, running at x4 (PCIEX4)

1 x PCI Express x1 slot

(PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)

Storage Information
M.2

1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)*

1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2B_SB)

1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)

SATA 6 x SATA 6Gb/s connectors
RAID Support for RAID 0, RAID 1, RAID 5, and RAID 10
Connector Information
Internal Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

3 x system fan headers

1 x system fan/water cooling pump header

2 x addressable LED strip headers

2 x RGB LED strip headers

6 x SATA 6Gb/s connectors

3 x M.2 Socket 3 connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen1 header

2 x USB 2.0/1.1 headers

2 x Thunderbolt™ add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only)

1 x Clear CMOS jumper

1 x Q-Flash Plus button

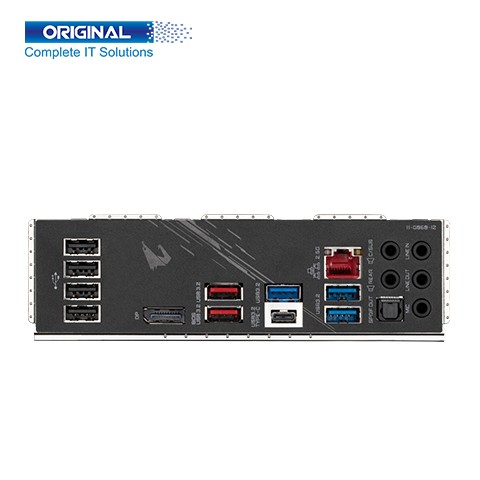

Port Information
USB Port

1 x USB Type-C® port, with USB 3.2 Gen 2x2 support

2 x USB 3.2 Gen 2 Type-A ports (red)

3 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

Display Port 1 x DisplayPort
LAN Port

1 x RJ-45 port

Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Audio Jack 5 x audio jacks
S/PDIF 1 x optical S/PDIF Out connector
Operating System
Supported OS Windows 10 64-bit
Warranty
Warranty 3 Years Warranty

Descripton:


Gigabyte Z590 AORUS ELITE ATX Motherboard


The Gigabyte Z590 AORUS ELITE ATX Motherboard with the Z590 AORUS gaming motherboard. Its delivery and dominant thermal design, glorified with the complete memory overclocking technology to crown your PC with the best Alder Lake's performance in all its gaming glory. Its ensure maximum Turbo Boost and overclocking performance of Intel's new generation CPU.


Gigabyte Z590 AORUS ELITE ATX Motherboard Model is Z590 AORUS ELITE. The Brand is Gigabyte. The Motherboard Supported Processor 11th Generation Intel® Core™ i9/ i7/ i5 processors, 10th Generation Intel® Core™ i9 processors / i7/ i5/ i3/ Pentium® / Celeron® processors, Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family. Intel® Z590 Express Chipset. LGA1200 socket. 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. ATX Form Factor; 30.5cm x 24.4cm. Memory Type DDR4, Dual-Channel, Slot 4 x DDR DIMM. Supported Bus Speed 11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 5400/ DDR4 5333/ DDR4 5133/DDR4 5000/4933/4800/ 4700/ 4600/ 4500/ 4400/ 4300/4266/ 4133/ 4000/ 3866/ 3800/ 3733/ 3666/ 3600/ 3466/ 3400/ 3333/ 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules, 10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules, 10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules. Maximum Memory Up to 128 GB. Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of [email protected] Hz, Support for DisplayPort 1.2 version and HDCP 2.3. PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16), For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.)* Supported by 11th Generation processors only. 1 x PCI Express x16 slot, running at x4 (PCIEX4), 1 x PCI Express x1 slot, (PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU), 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2B_SB), 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB), 6 x SATA 6Gb/s connectors, Support for RAID 0, RAID 1, RAID 5, and RAID 10. 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x 4-pin ATX 12V power connector, 1 x CPU fan header, 1 x water cooling CPU fan header, 3 x system fan headers, 1 x system fan/water cooling pump header, 2 x addressable LED strip headers, 2 x RGB LED strip headers, 6 x SATA 6Gb/s connectors, 3 x M.2 Socket 3 connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C® header, with USB 3.2 Gen 2 support, 1 x USB 3.2 Gen1 header, 2 x USB 2.0/1.1 headers, 2 x Thunderbolt™ add-in card connectors, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only), 1 x Clear CMOS jumper, 1 x Q-Flash Plus button. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support, 2 x USB 3.2 Gen 2 Type-A ports (red), 3 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports. 1 x DisplayPort. 1 x RJ-45 port, Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit). 5 x audio jacks. 1 x optical S/PDIF Out connector. Supported Operating System Windows 10 64-bit.

Gigabyte Z590 AORUS ELITE ATX Motherboard has Three years warranty.
