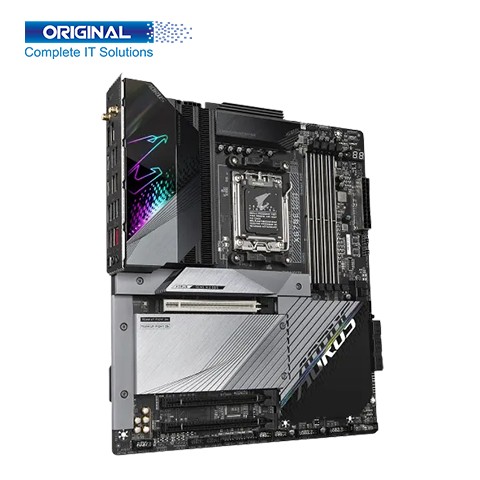

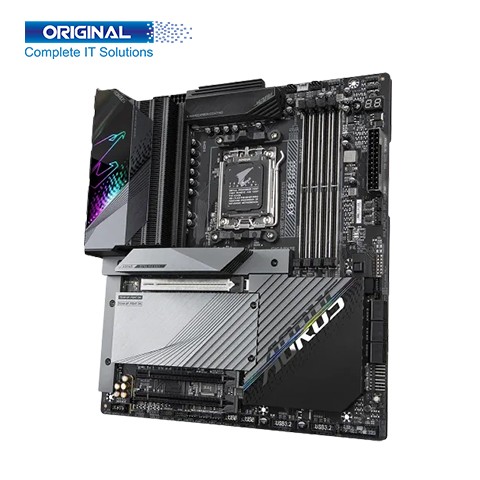

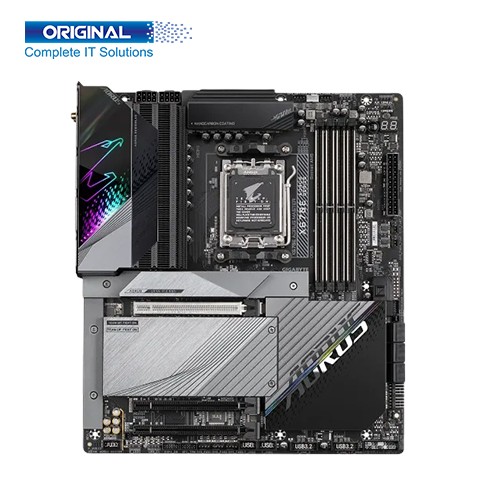

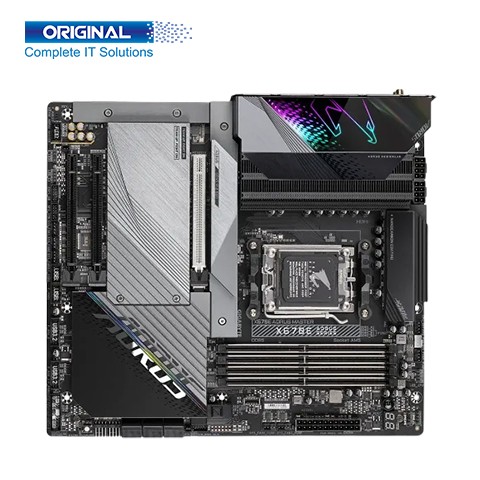

Gigabyte X670E AORUS MASTER DDR5 AMD AM5 E-ATX Motherboard

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules

Integrated Graphics Processor:

1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 1.4 version and HDR.

1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 1.4 version and HDR.

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support native HDMI 2.1 TMDS compatible ports.

CPU:

1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16 (PCIEX16)

* Actual support may vary by CPU.

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

* The PCIEX2 slot shares bandwidth with the SATA3 4/5 connectors. The SATA3 4/5 connectors will become unavailable when a device is installed in the PCIEX2 slot.

Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)

1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)

* Actual support may vary by CPU.

1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0* x4/x2 SSD support) (M2B_CPU)

* Actual support may vary by CPU.

Chipset:

2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x CPU fan header

1 x water cooling CPU fan header

4 x system fan headers

4 x system fan/water cooling pump headers

2 x addressable LED strip headers

2 x RGB LED strip headers

1 x CPU cooler LED strip/RGB LED strip header

4 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 2x2 support

2 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x noise detection header

1 x THB_U4 add-in card connector

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x power button

1 x reset button

1 x reset jumper

1 x Clear CMOS jumper

2 x temperature sensor headers

Voltage Measurement Points

CPU:

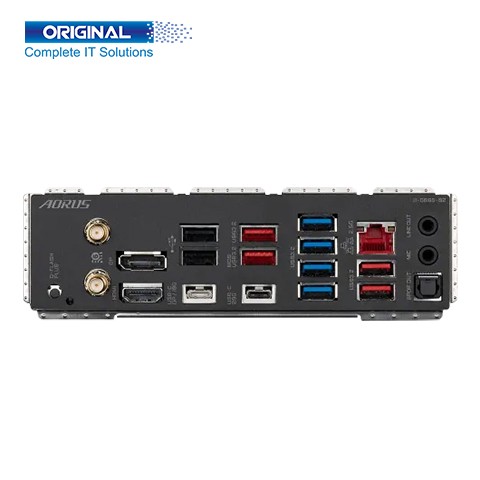

1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support

2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

CPU + USB 2.0 Hub:

2 x USB 2.0/1.1 ports on the back panel

Chipset:

2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)

2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

4 x USB 3.2 Gen 1 ports available through the internal USB headers

4 x USB 2.0/1.1 ports available through the internal USB headers

Chipset+USB 3.2 Gen 1 Hub:

4 x USB 3.2 Gen 1 ports on the back panel

Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

1 x RJ-45 port

Wireless Communication module

Intel® Wi-Fi 6E AX210

WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

BLUETOOTH 5.3

Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Windows 11 64-bit

Windows 10 64-bit
