| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Gigabyte |

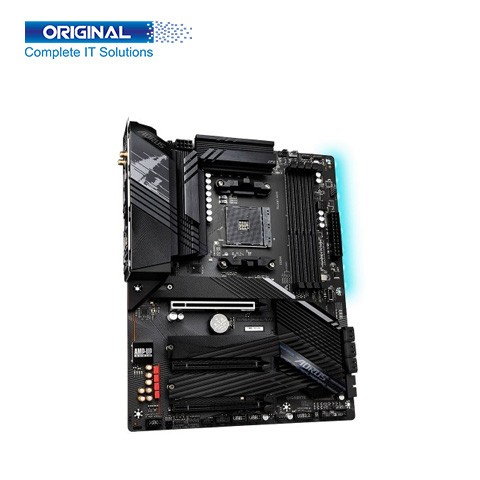

| Product Code | : | X570S AORUS ELITE AX |
| General Information | ||
| Model | X570S AORUS ELITE AX | |
| Brand | Gigabyte | |
| Supported Processor | AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ AMD Ryzen™ 4000 G-Series/ AMD Ryzen™ 3000 Series/ AMD Ryzen™ 3000 G-Series/ AMD Ryzen™ 2000 Series/ AMD Ryzen™ 2000 G-Series Processors | |
| Chipset | AMD X570 | |
| Socket | AM4 | |
| Bios | *1 x 256 Mbit flash *Use of licensed AMI UEFI BIOS *PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Memory Information | ||
| Memory Types | DDR4 |
|
| Channel | Dual channel memory architecture | |
| Slot | 4 x DDR4 DIMM sockets | |
| Supported Bus Speed | Support for DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules | |
| Maximum Memory | Supporting up to 128 GB | |
| Graphics Information | ||
| Graphics | * 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. * Maximum shared memory of 16 GB |
|
| Expansion Slots | ||
| PCI | * 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: * AMD Ryzen™ 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode * AMD Ryzen™ 5000 G-Series/4000 G-Series/2000 Series Processors support PCIe 3.0 x16 mode * AMD Ryzen™ 3000 G-Series/2000 G-Series Processors support PCIe 3.0 x8 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 4.0(Note)/3.0 x4 mode * 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: Supporting PCIe 4.0(Note)/3.0 x2 mode * The PCIEX4 slot shares bandwidth with the PCIEX2 slot. When the PCIEX2 slot is populated, the PCIEX4 slot operates at up to x2 mode. |
|
| Storage Information | ||
| M.2 | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280/22110 SSDs |
|
| SATA | 6 x SATA 6Gb/s connectors | |
| RAID | Support for RAID 0, RAID 1, and RAID 10 | |
| Connector Information | ||
| Internal Connectors | * 1 x 24-pin ATX main power connector * 1 x 8-pin ATX 12V power connector * 1 x CPU fan header * 1 x water cooling CPU fan header * 3 x system fan headers * 1 x system fan/water cooling pump header * 2 x addressable LED strip headers * 2 x RGB LED strip headers * 1 x CPU cooler LED strip/RGB LED strip header * 3 x M.2 Socket 3 connectors * 6 x SATA 6Gb/s connectors * 1 x front panel header * 1 x front panel audio header * 1 x USB Type-C® header, with USB 3.2 Gen 2 support * 2 x USB 3.2 Gen 1 headers * 2 x USB 2.0/1.1 headers * 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) * 1 x Thunderbolt™ add-in card connector * 1 x Clear CMOS jumper |
|
| Port Information | ||

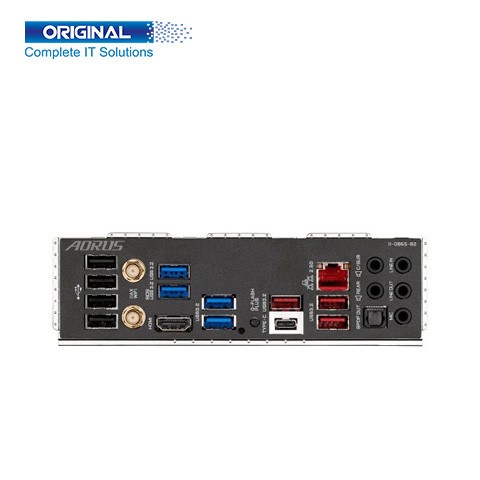

| USB Port | * 4 x USB 3.2 Gen 1 ports on the back panel Chipset+ASMedia® USB 3.2 Gen 2x2 Controller: * 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support Chipset: * 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header * 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel * 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+2 USB 2.0 Hubs: * 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
| HDMI Port | * 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. |
|
| LAN Port | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Audio Port | * Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. * High Definition Audio * 2/4/5.1/7.1-channel * Support for S/PDIF Out |
|
| I/O Controller | iTE® I/O Controller Chip | |
| Special Features | ||
| WIFI | * WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands * BLUETOOTH 5.2 * Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate |
|
| Operating Systems | ||
| Supported OS | Support for Windows® 10 64-bit |
|
| Warranty | ||
| Warranty | 03 Years Warranty |
|
The Gigabyte X570S AORUS ELITE AX AMD AM4 Motherboard supports Support AMD Ryzen 5000, 5000 G, 4000 G, 3000 3000 G, 2000 2000 G-Series Processors. It comes with high-end audio capacitors. These Gigabyte Motherboard high-quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. Buy Gigabyte X570S AORUS ELITE AX AMD AM4 Motherboard at the best price in BD.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
The Gigabyte X570S AORUS ELITE AX AMD AM4 Motherboard. Its Supported Processor AMD Ryzen 5000, 5000 G, 4000 G, 3000 3000 G, 2000, 2000 G-Series Processors, Chipset is AMD X570, Socket AM4, BIOS * 1 x 256 Mbit flash, * Use of licensed AMI UEFI BIOS, * PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, Form Factor ATX Form Factor; 30.5cm x 24.4cm. It is Memory Types DDR4, Channel Dual-channel, Slot 4 x DDR4 DIMM, Supported Bus Speed Support for DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules, Maximum Memory 128 GB, Graphics is * Integrated Graphics Processor, * 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, * Support for HDMI 2.1 version, HDCP 2.3, and HDR, * Maximum shared memory of 16 GB, PCI is * 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: * AMD Ryzen™ 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode.* AMD Ryzen™ 5000 G-Series/4000 G-Series/2000 Series Processors support PCIe 3.0 x16 mode.* AMD Ryzen™ 3000 G-Series/2000 G-Series Processors support PCIe 3.0 x8 mode.* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.* 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 4.0(Note)/3.0 x4 mode.* 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: Supporting PCIe 4.0(Note)/3.0 x2 mode.* The PCIEX4 slot shares bandwidth with the PCIEX2 slot. When the PCIEX2 slot is populated, the PCIEX4 slot operates at up to x2 mode. 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280/22110 SSDs. 6 x SATA 6Gb/s connectors. Support for RAID 0, RAID 1, and RAID 10. * 1 x 24-pin ATX main power connector. * 1 x water cooling CPU fan header. * 1 x CPU cooler LED strip/RGB LED strip header. * 2 x USB 3.2 Gen 1 headers.1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only). 4 x USB 3.2 Gen 1 ports on the back panel. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps). High Definition Audio. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands. BLUETOOTH 5.2. This Gigabyte X570S AORUS ELITE AX AMD AM4 Motherboard. Support for Windows 10 64-bit. You can enjoy 03 Years Warranty. Buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
