Gigabyte X570S AERO G AMD AM4 ATX Motherboard

Price :           To be announced
Status :           Out of Stock
Brand :           Gigabyte
Product Code :           X570S AERO G

Short Details:

  • • Model: Gigabyte X570S AERO G
  • • Chipset: AMD X570
  • • Socket: AM4
  • • Form Factor: ATX Form Factor; 30.5cm x 24.4cm

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model Gigabyte X570S AERO G
Brand Gigabyte
Supported Processor Support Ryzen 5000, 4000 G, 3000, 3000 G, 2000, 2000 G series processors
Chipset AMD X570
Socket AM4
BIOS

* 1 x 256 Mbit flash

* Use of licensed AMI UEFI BIOS

* PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor ATX Form Factor; 30.5cm x 24.4cm
Memory Information
Memory Type DDR4
Channel Dual-channel
Slot 4 x DDR4 DIMM
Supported Bus Speed Support for DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
Maximum Memory 128 GB
Graphics Information
Graphics

* Integrated Graphics Processor:

* 1 x USB Type-C® port, supporting USB Type-C® and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz

* Support for drawing tablets and 20V@3A of power delivery.

* * Support for DisplayPort 1.4 version and HDCP 2.3

* 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

* Maximum shared memory of 16 GB

Expansion Slots
PCI

* 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

* AMD Ryzen™ 5000 Series/3000 Series Processors

* support PCIe 4.0 x16 mode

* AMD Ryzen™ 5000 G-Series/4000 G-Series/2000 Series Processors

* support PCIe 3.0 x16 mode

* AMD Ryzen™ 3000 G-Series/2000 G-Series Processors

* support PCIe 3.0 x8 mode

* 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:

* AMD Ryzen™ 5000 Series/3000 Series Processors

* support PCIe 4.0 x8 mode

* AMD Ryzen™ 5000 G-Series/4000 G-Series/2000 Series Processors

* support PCIe 3.0 x8 mode

* AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 G-Series

* Processors do not support this slot

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.

* 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:

* Supporting PCIe 4.0* /3.0 x4 mode

* For AMD Ryzen™ 5000 Series/3000 Series Processors only.

* The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector.

Storage Information
M.2

* 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs:

* 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting

* 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting

* 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280/22110 SSDs

SATA

* AMD Ryzen™ 5000-Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs

* AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series/2000 Series/ 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs

* Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs

* Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs

* For AMD Ryzen™ 5000 Series/3000 Series Processors only. 6 x SATA 6Gb/s connectors, integrated in the Chipset

* Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

RAID Support for RAID 0, RAID 1, and RAID 10
Connector Information
Internal Connectors

* 1 x 24-pin ATX main power connector

* 1 x 8-pin ATX 12V power connector

* 1 x 4-pin ATX 12V power connector

* 1 x CPU fan header

* 1 x water cooling CPU fan header

* 4 x system fan headers

* 2 x system fan/water cooling pump headers

* 2 x addressable LED strip headers

* 2 x RGB LED strip headers

* 1 x CPU cooler LED strip/RGB LED strip header

* 4 x M.2 Socket 3 connectors

* 6 x SATA 6Gb/s connectors

* 1 x front panel header

* 1 x front panel audio header

* 1 x USB Type-C® header, with USB 3.2 Gen 2 support

* 2 x USB 3.2 Gen 1 headers

* 2 x USB 2.0/1.1 headers

* 1 x noise detection header

* 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

* 1 x Thunderbolt™ add-in card connector

* 1 x serial port header

* 1 x Clear CMOS jumper

* 2 x temperature sensor headers

* 1 x Q-Flash Plus button

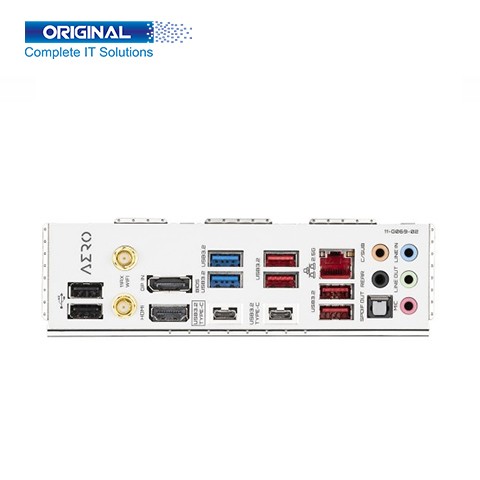

Port Information
USB Port

* 2 x USB 2.0/1.1 ports

* 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support

* 1 x USB Type-C® port, with USB 3.2 Gen 1 support

* 4 x USB 3.2 Gen 2 Type-A ports (red)

* 2 x USB 3.2 Gen 1 ports

HDMI Port 1 x HDMI port
Display Port 1 x DisplayPort In port
LAN Port 1 x RJ-45 port
Audio Jack

* Internal: 1 x front panel audio header

* Back Panel: 5 x audio jacks

Operating System
Supported OS Support for Windows 10 64-bit
Warranty
Warranty 03 Years Warranty

Description:


Gigabyte X570S  AERO G AMD AM4 ATX Motherboard


The Gigabyte X570S  AERO G AMD AM4 ATX Motherboard supports Support Ryzen 5000, 4000 G, 3000, 3000 G, 2000, and 2000 G series processors. It comes with high-end audio capacitors. These Gigabyte Motherboard high-quality capacitors help deliver high resolution and high fidelity audio to provide gamers with the most realistic sound effects. Buy Gigabyte X570S AERO G AMD AM4 ATX Motherboard at the best price in BD.


For more Motherboard information Please Check Gigabyte MotherboardMSI MotherboardAsus MotherboardEsonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.


The Gigabyte x570sS AERO G AMD AM4 ATX Motherboard for Model x570sS AERO G and brand Gigabyte. It Supported Processor Ryzen 5000, 4000 G, 3000, 3000 G, 2000, and 2000 G series processors with Chipset AMD x570s. This is Socket AM4, BIOS * 1 x 256 Mbit flash, * Use of licensed AMI UEFI BIOS, * PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, Form Factor ATX Form Factor; 30.5cm x 24.4cm. Memory Type is DDR4, Channel Dual-channel, Slot 4 x DDR4 DIMM, Supported Bus Speed Support for DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules, Maximum Memory 128 GB. Graphics is * Integrated Graphics Processor, * 1 x USB Type-C® port, supporting USB Type-C® and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz, * Support for drawing tablets and 20V@3A of power delivery, * Support for DisplayPort 1.4 version and HDCP 2.3* 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz,* Support for HDMI 2.1 version, HDCP 2.3, and HDR, * Maximum shared memory of 16 GB. PCI * 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU, * AMD Ryzen™ 5000 Series/3000 Series Processors, * support PCIe 4.0 x16 mode, * AMD Ryzen™ 5000 G-Series/4000 G-Series/2000 Series Processors, * support PCIe 3.0 x16 mode, * AMD Ryzen™ 3000 G-Series/2000 G-Series Processors, * support PCIe 3.0 x8 mode, * 1 x PCI Express x16 slot (PCIEX8), integrated into the CPU, * AMD Ryzen™ 5000 Series/3000 Series Processors, * support PCIe 4.0 x8 mode, * AMD Ryzen™ 5000 G-Series/4000 G-Series/2000 Series Processors, * support PCIe 3.0 x8 mode, * AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 G-Series, * Processors do not support this slot, * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot, * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode, * 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset, * Supporting PCIe 4.0* /3.0 x4 mode,* For AMD Ryzen™ 5000 Series/3000 Series Processors only, * The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector, M.2 * 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs, * 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting,* 1 x M.2 connector (M2C_SB), integrated with the Chipset, supporting, * 1 x M.2 connector (M2D_SB), integrated with the Chipset, supporting Socket 3, M key, type 2280/22110 SSDs, SATA is * AMD Ryzen™ 5000-Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs, * AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series/2000 Series/ 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs, * Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs, * Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs, * For AMD Ryzen™ 5000 Series/3000 Series Processors only. 6 x SATA 6Gb/s connectors, integrated into the Chipset, * Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors, RAID Support for RAID 0, RAID 1, and RAID 10. The Gigabyte x570sS AERO G AMD AM4 ATX Motherboard has a 03 Years Warranty.
