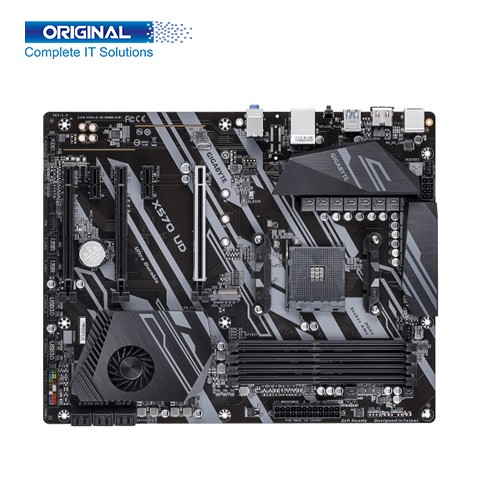

Gigabyte X570 Ultra Durable DDR4 RAM AM4 Socket AMD Motherboard

Price :           To be announced
Status :           Out of Stock
Brand :           Gigabyte
Product Code :           X570 UD

Short Details:

  • • Model: X570 UD
  • • Chipset: AMD X570
  • • Form Factor: ATX Form Factor; 30.5cm x 24.4cm
  • • Memory Types: DDR4

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model

X570 UD

Supported Processor AMD Socket AM4, support for: 3rd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/ AMD Ryzen with Radeon Vega Graphics processors
Chipset AMD X570
Socket AM4
Bios

* 1 x 128 Mbit flash

* Use of licensed AMI UEFI BIOS

* PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor ATX Form Factor; 30.5cm x 24.4cm
Memory Information
Memory Types

DDR4

Channel Dual channel
Slot 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Supported Bus Speed 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133MHz
Maximum Memory 128 GB
Graphics Information
Graphics

* 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.0 version, HDCP 2.2, and HDR.

* Maximum shared memory of 16 GB

Expansion Slots
PCI

* 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

* 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

* 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1)

* 2 x PCI Express x16 slots, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4)

* For 3rd Generation AMD Ryzen™ processors only.

2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0

* For 3rd Generation AMD Ryzen™ processors only.

Storage Information
M.2

* 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)

* 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)

SATA 6 x SATA 6Gb/s connectors
RAID Support for RAID 0, RAID 1, and RAID 10
Connector Information
Internal Connectors

* 1 x 24-pin ATX main power connector

* 1 x 8-pin ATX 12V power connector

* 1 x CPU fan header

* 1 x water cooling CPU fan header

* 2 x system fan headers

* 1 x RGB LED strip header

* 6 x SATA 6Gb/s connectors

* 1 x M.2 Socket 3 connector

* 1 x front panel header

* 1 x front panel audio header

* 2 x USB 3.2 Gen 1 headers

* 2 x USB 2.0/1.1 headers

* 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

* 1 x Clear CMOS jumper

Port Information
PS/2 Port

1 x PS/2 keyboard/mouse port

USB Port

* 4 x USB 3.2 Gen 1 ports on the back panel

* 4 x USB 3.2 Gen 1 ports available through the internal USB headers

* 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

HDMI Port 1 x HDMI port
LAN Port Realtek® GbE LAN chip (10/100/1000 Mbit)
Audio Port

* Realtek® ALC887 codec

* High Definition Audio

* 2/4/5.1-channel

Q-Flash Plus Button 1 x Q-Flash Plus button
Operating System
Supported OS

Support for Windows 10 64-bit

Warranty
Warranty

03 Years Warranty

Description:


Gigabyte X570 UD DDR4 AM4 Socket DDR4 AMD Motherboard



This Gigabyte X570 UD Motherboard comes with AMD Socket AM4, AM4 Socket: AMD Ryzen 3rd Gen Ryzen/ 2nd Gen Ryzen RadeonAthlon with Radeon Vega Graphics Processors. AM4 Socket, Chipset AMD X570, Bios is 1 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, DMI 2.7, WfM 2.0, PnP 1.0a, SM BIOS 2.7, ACPI 5.0 and 24.4cm x 24.4cm ATX Form Factor. X570 UD Gigabyte Motherboard Maximum 128 GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133MHz.


Gigabyte X570 UD Motherboard comes with standard Graphics such as 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz, The DVI-D port does not support D-Sub connection by the adapter, 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Actual support may vary by CPU, Support for HDMI 2.0 version and HDCP 2.2 and HDR. Maximum shared memory of 16 GB. Gigabyte X570 UD AM4 Socket Motherboard Expansion PCI Slots is 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots, 6 x SATA 6 GB/s connectors and 1. 1 x M.2 connector also various Internal Connectors such as 4 x 24-pin ATX main power connector, 1 x CPU fan header, 1 x front panel audio header, etc. This Motherboard has 5 x USB 3.2 Gen 1 ports, 6 x USB 2.0/1.1 ports, 1 x HDMI port, 1 x D-Sub port, Realtek GbE LAN chip (1000 Mbit/100 Mbit), and High Definition Audio 2/4/5.1/7.1-channel.


This Gigabyte X570 UD Motherboard Support for Windows 10 64-bit. You can enjoy a 03 Years Warranty. Buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
