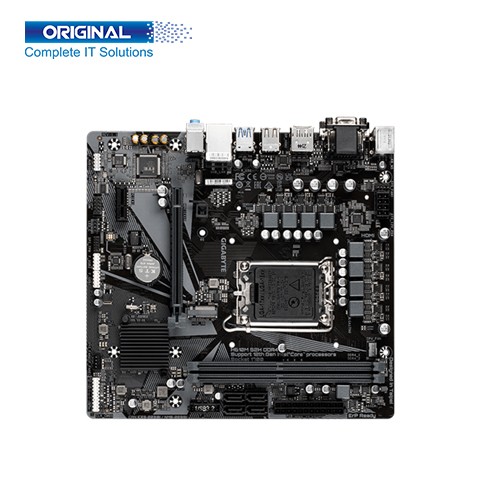

Gigabyte H610M S2H DDR4 12th Gen Micro ATX Motherboard

Special Price :           ৳11,250
Regular Price(EMI) :           ৳12,100
Status :           In Stock
Brand :           Gigabyte
Product Code :           H610M S2H

Short Details:

  • • Model: H610M S2H
  • • Chipset: Intel H610 Express Chipset
  • • Socket: LGA1700
  • • Form Factor: Micro ATX

See More Details

৳11,250

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model H610M S2H
Brand Gigabyte
Supported Processor Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
Chipset Intel® H610 Express Chipset
Socket LGA1700
BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm
Memory Information
Memory Type DDR4
Channel Dual-Channel
Slot 4 x DDR DIMM
Supported Bus Speed Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
Maximum Memory Up to 64 GB
Graphics Information
Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

* The DVI-D port does not support D-Sub connection by adapter.

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support native HDMI 2.1 TMDS compatible ports

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

Expansion Slots
PCI

1 x PCI Express x16 slot, running at x16

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

(The PCI Express x16 slot conforms to PCI Express 4.0 standard.)

1 x PCI Express x1 slot

(The PCI Express x1 slot conforms to PCI Express 3.0 standard.)

Storage Information
M.2 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)
SATA 4 x SATA 6Gb/s connectors
Connector Information
Internal Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x M.2 Socket 3 connector

4 x SATA 6Gb/s connectors

1 x CPU fan header

2 x system fan headers

1 x RGB LED strip header

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x serial port header

1 x Clear CMOS jumper

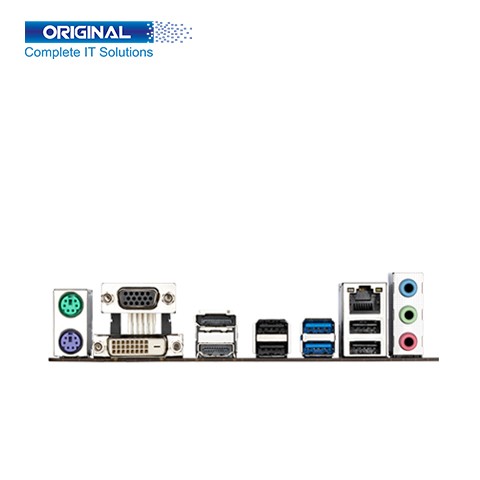

Port Information
PS/2 Port 1 x PS/2 keyboard & mouse combo port
USB Port

2 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

HDMI Port 1 x HDMI 2.0 port
Display Port 1 x DisplayPort
D-Sub 1 x D-Sub port
DVI-D 1 x DVI-D port
LAN Port

1 x RJ-45 port

Realtek GbE LAN chip (1 Gbps/100 Mbps)

Audio Jack 3 x audio jacks
Operating System
Supported OS

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Warranty
Warranty 03 Years

Description:


Gigabyte H610M S2H DDR4 12th Gen Micro ATX Motherboard


The Gigabyte H610M S2H DDR4 12th Gen Micro ATX Motherboard. Its delivery and dominant thermal design, are glorified with the complete memory overclocking technology to crown your PC with the best Alder Lake performance in all its gaming glory. It ensures maximum Turbo Boost and overclocking performance of Intel's new generation CPU. Buy Gigabyte H610M S2H DDR4 12th Gen Micro ATX Motherboard at the best price in BD.


For more Motherboard information Please Check Gigabyte MotherboardMSI MotherboardAsus MotherboardEsonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.


Gigabyte H610M S2H DDR4 12th Gen Micro ATX Motherboard. The model is H610M S2H. The Brand is Gigabyte. The Motherboard Supported Processor Support for 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors. Intel® H610 Express Chipset. Socket LGA1700. BIOS 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. Micro ATX Form Factor; 23.0cm x 21.5cm. Memory Type DDR4. Dual-Channel. Slot 4 x DDR DIMM. Supported Bus Speed Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules. Maximum MemoryUp to 64 GB. Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz, 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz, The DVI-D port does not support D-Sub connection by the adapter, 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Support for HDMI 2.1 version and HDCP 2.3., Support native HDMI 2.1 TMDS compatible ports, 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz, Support for DisplayPort 1.2 version and HDCP 2.3. PCI 1 x PCI Express x16 slot, running at x16, For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCI Express x16 slot conforms to PCI Express 4.0 standard.) 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 3.0 standard.). 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support), 4 x SATA 6Gb/s connectors. Internal Connectors 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x M.2 Socket 3 connector, 4 x SATA 6Gb/s connectors, 1 x CPU fan header, 2 x system fan headers, 1 x RGB LED strip header, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), 1 x serial port header, 1 x Clear CMOS jumper. 1 x PS/2 keyboard & mouse combo port, 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x HDMI 2.0 port, 1 x DisplayPort, 1 x D-Sub port, 1 x DVI-D port, 1 x RJ-45 port, Realtek GbE LAN chip (1 Gbps/100 Mbps), 3 x audio jacks. Support for Windows 11 64-bit and Windows 10 64-bit. Gigabyte H610M S2H DDR4 12th Gen Micro ATX Motherboard has Three years warranty.
