Gigabyte H510M S2H Intel Micro ATX Motherboard

Price :           To be announced
Status :           Out of Stock
Brand :           Gigabyte
Product Code :           H510M S2H

Short Details:

  • • Model: Gigabyte H510M S2H
  • • Chipset: Intel® H510 Express Chipset
  • • Socket: LGA1200
  • • Memory Types: DDR4

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model

Gigabyte H510M S2H

Supported Processor

* 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors

* 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors

* Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family.

Chipset Intel® H510 Express Chipset
Socket LGA1200
BIOS

* 1 x 256 Mbit flash

* Use of licensed AMI UEFI BIOS

* PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor Micro ATX Form Factor; 24.4cm x 21.0cm
Memory Information
Memory Types

DDR4

Channel Dual channel
Slot 2 x DDR4 DIMM sockets
Supported Bus Speed 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz
Maximum Memory 64 GB (32 GB single DIMM capacity)
Graphics Information
Graphics

* 1 x D-Sub port*, supporting a maximum resolution of [email protected] Hz

* 1 x DVI-D port, supporting a maximum resolution of [email protected] Hz

* 1 x HDMI ports, supporting a maximum resolution of [email protected] Hz

* 1 x DisplayPort*, supporting a maximum resolution of [email protected] Hz

Expansion Slots
PCI

* 1 x PCI Express x16 slot, running at x16

(The PCI Express x16 slot conforms to PCI Express 4.0 standard.)*

* 2 x PCI Express x1 slots

Storage Information
M.2

* 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)

SATA 4 x SATA 6Gb/s connectors
Connector Information
Internal Connectors

* 1 x 24-pin ATX main power connector

* 1 x 8-pin ATX 12V power connector

* 4 x SATA 6Gb/s connectors

* 1 x CPU fan header

* 2 x system fan headers

* 1 x RGB LED strip header

* 1 x front panel header

* 1 x front panel audio header

* 1 x USB 3.2 Gen 1 header

* 2 x USB 2.0/1.1 headers

* 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

* 1 x serial port header

* 1 x Clear CMOS jumper

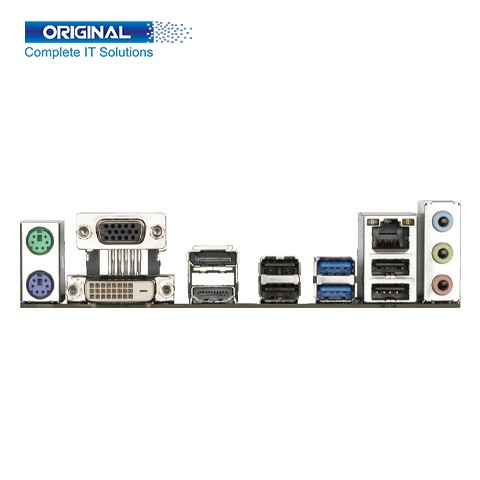

Port Information
PS/2 Port

* 1 x PS/2 keyboard port

* 1 x PS/2 mouse port

USB Port

* 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

* 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB header)

HDMI Port 1 x HDMI port
DVI-D port 1 x DVI-D port
D-Sub port 1 x D-Sub port
LAN Port Realtek® GbE LAN chip (1 Gbit/100 Mbit)
Audio Port

* Realtek® Audio CODEC

* High Definition Audio

* 2/4/5.1/7.1-channel

Display Port 1 x DisplayPorts
Operating System
Supported OS

Support for Windows 10 64-bit

Warranty
Warranty

03 Years Warranty

Descripton:


Gigabyte H510M S2H Intel Micro ATX Motherboard


Gigabyte H510M S2H Intel Micro ATX Motherboard with Intel Core i5, i7, i9 Processors with 11th Generation also Intel Core i3, i5, i7, i9 Pentium/Celeron Processors with 10th Generation including 4 MB Intel Smart Cache, Intel Celeron G5xx5 family. Has Intel H510 Express Chipset, LGA1200 Socket, Bios is 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 and 24.4cm x 21.0cm Micro ATX Form Factor. This Gigabyte H510M S2H Motherboard Maximum 64 GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz. Buy Gigabyte H510M S2H Intel Micro ATX Motherboard Chipset at the best price in BD.


For more Motherboard information Please Check Gigabyte MotherboardMSI MotherboardAsus MotherboardEsonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.


Gigabyte H510M S2H Intel Micro ATX Motherboard comes with standard Graphics such as 1 x DVI-D port, supporting a maximum resolution of [email protected] Hz, 1 x HDMI port, Support for HDMI [email protected] Hz, Expansion PCI Slots is 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots, 4 x SATA 6 GB/s connectors and 1. 1 x M.2 connector also various Internal Connectors such as 4 x 24-pin ATX main power connector, 1 x CPU fan header, 1 x front panel audio header, etc. This Gigabyte H510M S2H Motherboard has 5 x USB 3.2 Gen 1 ports, 6 x USB 2.0/1.1 ports, 1 x HDMI port, 1 x D-Sub port, Realtek GbE LAN chip (1 Gbit/100 Mbit), and High Definition Audio 2/4/5.1/7.1-channel. This Gigabyte H510M S2H Motherboard Support for Windows 10 64-bit. You can enjoy 03 Years Warranty. Buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
