ORIGINAL STORE LTD.

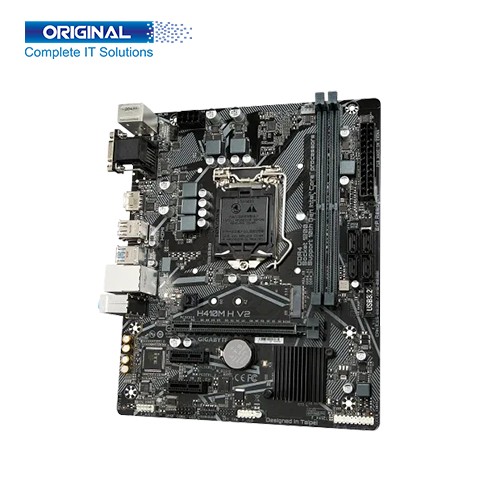

Gigabyte H410M H V2 Intel 10th Gen Micro ATX Motherboard

Special Price :           ৳8,900
Regular Price(EMI) :           ৳9,200
Status :           In Stock
Brand :           Gigabyte
Product Code :           H410M H V2

Short Details:

  • • Model: H410M H V2
  • • Chipset: Intel H470 Express
  • • Socket: LGA1200
  • • Form Factor: Micro ATX

See More Details

৳8,900

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model H410M H V2
Brand Gigabyte
Supported Processor

Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package


L3 cache varies with the CPU

Chipset Intel H470 Express Chipset
Socket LGA1200
BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor Micro ATX Form Factor; 22.6cm x 18.5cm
Memory Information
Memory Types DDR4
Channel Dual Channel
Slot 2 x DIMM
Supported Bus Speed

Intel Core i9/i7 processors:

Support for DDR4 2933/2666/2400/2133 MHz memory modules


Intel Core i5/i3/Pentium/Celeron processors:

Support for DDR4 2666/2400/2133 MHz memory modules

Maximum Memory up to 64 GB (32 GB single DIMM capacity)
Graphics Information
Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz


* Support for HDMI 1.4 version and HDCP 2.3.

The maximum shared memory of 512 MB

Expansion Slots
PCI

1 x PCI Express x16 slot, running at x16

2 x PCI Express x1 slots

(The PCI Express slots conform to PCI Express 3.0 standard.)

Storage Information
M.2

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)

SATA 4 x SATA 6Gb/s connectors
RAID Support for RAID 0, RAID 1, RAID 5, and RAID 10
Connector Information
Internal Connector

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

1 x RGB LED strip header

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x serial port header

1 x Clear CMOS jumper

Port Information
PS/2 Port 1 x PS/2 keyboard/mouse port
USB Port

4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

HDMI Port 1 x HDMI port
D-Sub Port 1 x D-Sub port
LAN Port

Intel GbE LAN chip (1 Gbit/100 Mbit)

1 x RJ-45 port

Audio Jack 3 x audio jacks
Operating System
Supported OS Support for Windows 10 64-bit
Warranty
Warranty 03 Years

Description:


Gigabyte H410M H V2 Intel 10th Gen Motherboard


Gigabyte H410M H V2 Intel 10th Gen Motherboard. The Gigabyte H410M series provides customers with advanced features and the latest technologies. GIGABYTE motherboards are equipped with upgraded power solutions, the latest storage standards, and outstanding connectivity to enable optimized performance for gaming.


Gigabyte H410M H V2 Intel 10th Gen Motherboard. The model is H410M H V2. The brand is Gigabyte. The Motherboard Support for 10th Generation Intel Core i9 /Intel® Core™ i7 /Intel® Core™ i5 /Intel® Core™ i3 /Intel® Pentium® /Intel® Celeron® processors in the LGA1200 package. Intel H470 Express Chipset. Socket LGA1200. BIOS 1 x 256 Mbit flash. Use of licensed AMI UEFI BIOS. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. Micro ATX Form Factor; 22.6cm x 18.5cm. Memory 2 x DIMM DDR4. Dual Channel. Supported Bus Speed Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules. Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules. Maximum Memory up to 64 GB (32 GB single DIMM capacity). 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support). 4 x SATA 6Gb/s connectors. Support for RAID 0, RAID 1, RAID 5, and RAID 10. 1 x PS/2 keyboard/mouse port. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header). 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header). 1 x HDMI port. 1 x D-Sub port. Intel GbE LAN chip (1 Gbit/100 Mbit). 1 x RJ-45 port. 3 x audio jacks. Supported Operating System Windows 10 64-bit. The Gigabyte H410M H V2 Intel 10th Gen Motherboard has comes 03 years warranty.
