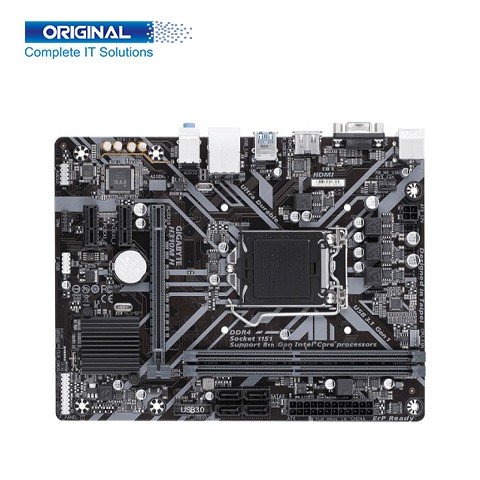

Gigabyte H310M H 8th Gen Micro ATX Motherboard

Special Price :           ৳6,300
Regular Price(EMI) :           ৳6,940
Status :           In Stock
Brand :           Gigabyte
Product Code :           H310M H

Short Details:

  • • Model: Gigabyte H310M H
  • • Chipset: Intel® H310 Express Chipset
  • • Socket: LGA1151
  • • Memory Types: DDR4

See More Details

৳6,300

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model

Gigabyte H310M H

Supported Processor 9th Generation Intel Celeron, Pentium, Core i3, i5, i7, i9 Processors
Chipset Intel® H310 Express Chipset
Socket LGA1151
Bios

1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor Micro ATX Form Factor; 22.6cm x 17.4cm
Memory Information
Memory Types

DDR4

Channel Dual channel
Slot 2 x DDR4 DIMM sockets
Supported Bus Speed 9th Gen: 2666/2400/2133 MHz
Maximum Memory 32 GB
Graphics Information
Graphics

1 x D-Sub port, supporting a maximum resolution of [email protected] Hz

1 x HDMI port, supporting a maximum resolution of [email protected] Hz

* Support for HDMI 1.4 version and HDCP 2.2.

Maximum shared memory of 1 GB

Expansion Slots
PCI

1 x PCI Express x16 slot, running at x16

(The PCIEX16 slot conforms to PCI Express 3.0 standard.)

2 x PCI Express x1 slots

(The PCI Express x1 slots conform to PCI Express 2.0 standard.)

Storage Information
SATA

4 x SATA 6Gb/s connectors

Connector Information
Internal Connectors

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

4 x SATA 6Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

1 x USB 3.1 Gen 1 header

1 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x Clear CMOS jumper

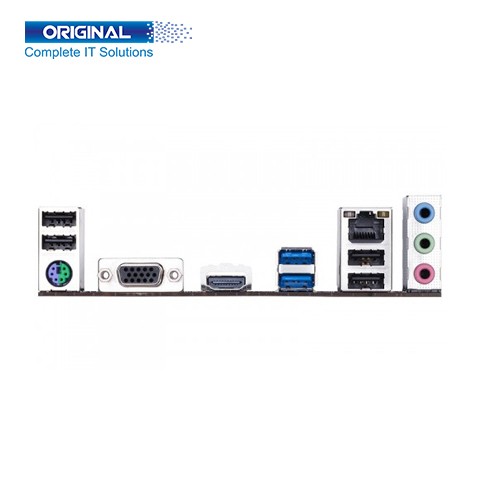

Port Information
PS/2 Port

1 x PS/2 keyboard/mouse port

USB Port

4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

HDMI Port 1 x HDMI port
D-SUB Port 1 x D-Sub port
LAN Port Realtek® GbE LAN chip (10/100/1000 Mbit)
Audio Port

Realtek® ALC887 codec

High Definition Audio

2/4/5.1/7.1-channel

Operating System
Supported OS

Support for Windows 10 64-bit

Warranty
Warranty

03 Years Warranty

Descripton:


Gigabyte H310M H 8th Gen Micro ATX Motherboard


This Gigabyte H310M H Motherboard comes with Intel Core i3, i5, i7, and i9 Processors with 9th Generation. Has Intel H310 Express Chipset, LGA1151 Socket, Bios is 1 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 and 22.6cm x 17.4cm and Micro ATX Form Factor. This Gigabyte H310M H Motherboard Maximum 32 GB DDR4 Dual Channel Memory, 2 x DDR4 DIMM sockets, Supported Bus Speed 9th Gen: 2666/2400/2133 MHz. Buy Gigabyte H310M H 8th Gen Micro ATX Motherboard at the best price in BD.


For more Motherboard information Please Check Gigabyte MotherboardMSI MotherboardAsus MotherboardEsonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.


Gigabyte H310M H 8th Gen Micro ATX Motherboard comes with standard Graphics such as 1 x D-Sub port, supporting a maximum resolution of [email protected] Hz, 1 x HDMI port, supporting a maximum resolution of [email protected] Hz, Support for HDMI 1.4 version and HDCP 2.2, and Maximum shared memory of 1 GB. Expansion PCI Slots is 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots, 4 x SATA 6Gb/s connectors also various Internal Connectors such as 1 x 24-pin ATX main power connector, 1 x CPU fan header, 1 x front panel audio header, etc. This Gigabyte H310M H Motherboard has 4 x USB 3.1 Gen 1 ports, 6 x USB 2.0/1.1 ports, 1 x HDMI port, 1 x D-Sub port, Realtek GbE LAN chip (10/100/1000 Mbit), and High Definition Audio 2/4/5.1/7.1-channel. This Gigabyte H310M H Motherboard Support for Windows 10 64-bit. You can enjoy 03 Years Warranty.
