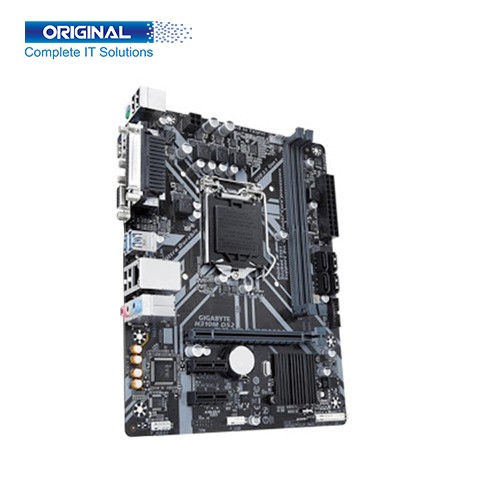

Gigabyte H310M DS2 DDR4 8th-9th Gen Intel LGA1151 Socket Motherboard

Price :           To be announced
Status :           Out of Stock
Brand :           Gigabyte
Product Code :           H310M DS2

Short Details:

  • • Model: Gigabyte H310M DS2
  • • Chipset: 8th/9th Generation Intel Pentium, Core i3, i5, i7, i9 processor
  • • From Factor: Micro ATX Form Factor; 22.6cm x 17.4cm
  • • Memory Type: DDR4

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model

Gigabyte H310M DS2

Supported Processor 8th/9th Generation Intel Pentium, Core i3, i5, i7, i9 processor
Chipset Intel® H310 Express Chipset
Socket LGA1151
BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
From Factor Micro ATX Form Factor; 22.6cm x 17.4cm
Memory Information
Memory Type

DDR4

Channel Dual channel
Slot 2 x DDR4 DIMM
Supported Bus Speed DDR4 2666/2400/2133 MHz
Maximum Memory 32 GB
Graphics Information
Graphics

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

Maximum shared memory of 1 GB

Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
Storage Information
SATA 4 x SATA 6Gb/s connectors
Connector Information
Internal Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper
Port Information
PS/2 Port 1 x PS/2 keyboard/mouse port
USB Port 2 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports
D-Sub Port 1 x D-Sub port
LAN Port Realtek® GbE LAN chip (10/100/1000 Mbit) 1 x RJ-45 port
Audio Port 3 x audio jacks
Operating System
Supported OS

Support for Windows 10 64-bit

Warranty
Warranty

3 Years

Description:


Gigabyte H310M DS2 DDR4 8th-9th Gen Intel LGA1151 Socket Motherboard



This Gigabyte H310M DS2 Motherboard comes with 8th/9th Generation Intel Pentium, Core i3, i5, i7, i9 processor. Chipset Intel H310, AM4 Socket, Bios is 1 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 and 22.6cm x 17.4cm ATX Form Factor. This Gigabyte H310M DS2 Motherboard Maximum 32 GB DDR4 Dual Channel Memory, 2 x DDR4 DIMM sockets, Supported Bus Speed DDR4 2666/2400/2133 MHz.


Gigabyte H310M DS2 Motherboard comes with standard Graphics such as a 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz, Maximum shared memory of 1 GB. H310M DS2 Gigabyte Motherboard Expansion PCI slot is 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots, 4 x SATA 6 GB/s connectors also various Internal Connectors such as 4 x 24-pin ATX main power connector, 1 x CPU fan header, 1 x front panel audio header, etc. This H310M DS2 Gigabyte Motherboard has 5 x USB 3.2 Gen 1 ports, 6 x USB 2.0/1.1 ports, 1 x HDMI port, 1 x D-Sub port, Realtek GbE LAN chip  (10/100/1000 Mbit), and High Definition Audio with  3 x audio jacks.


This Gigabyte H310M DS2 Motherboard Support for Windows 10 64-bit. You can enjoy 03 Years Warranty. Buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
