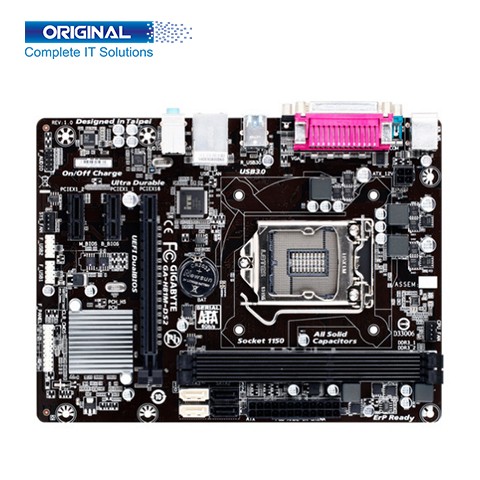

Gigabyte GA-H81M-DS2 4th Gen Micro ATX Motherboard

Special Price :           ৳7,750
Regular Price(EMI) :           ৳8,200
Status :           In Stock
Brand :           Gigabyte
Product Code :           GA-H81M-DS2

Short Details:

  • • Model: Gigabyte GA-H81M-DS2
  • • Chipset: Intel® H81 Express Chipset
  • • Form Factor: Micro ATX Form Factor; 22.6cm x 17cm
  • • Memory Type: DDR3

See More Details

৳7,750

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model Gigabyte GA-H81M-DS2
Supported Processor 4th Gen Intel Core i3/i5/i7 Pentium processors
Chipset Intel® H81 Express Chipset
Socket LGA1150
BIOS

* 2 x 64 Mbit flash
* Use of licensed AMI EFI BIOS
* Support for DualBIOS™
* PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor Micro ATX Form Factor; 22.6cm x 17cm
Memory Information
Memory Type DDR3
Channel Dual channel
Slot 2 x 1.5V DDR3 DIMM
Supported Bus Speed DDR3 1600/1333 MHz
Maximum Memory 16 GB
Graphics Information
Graphics

* 1 x D-Sub port, supporting a maximum resolution of 1920x1200
* Maximum shared memory of 1 GB

Expansion Slots
PCI

* 1 x PCI Express x16 slot, running at x16
* 2 x PCI Express x1 slots
 (The PCI Express slots conform to PCI Express 2.0 standard.)

Storage Information
SATA

* 2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices
* 2 x SATA 3Gb/s connectors (SATA2 2/3) supporting up to 2 SATA 3Gb/s devices

Connector Information
Internal Connectors

* 1 x 24-pin ATX main power connector
* 1 x 4-pin ATX 12V power connector
* 2 x SATA 6Gb/s connectors
* 2 x SATA 3Gb/s connectors
* 1 x CPU fan header
* 1 x system fan header
* 1 x front panel header
* 1 x front panel audio header
* 2 x USB 2.0/1.1 headers
* 1 x Clear CMOS jumper

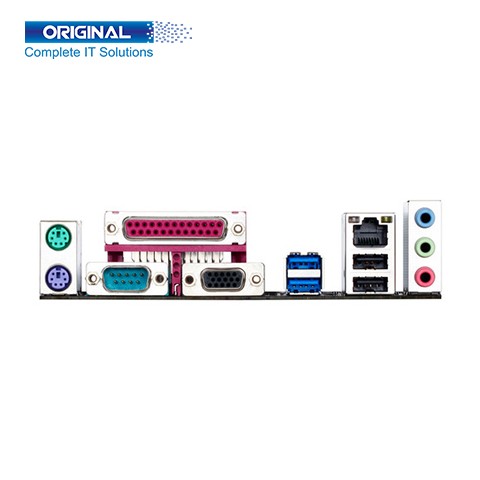

Port Information
PS/2 Port

* 1 x PS/2 mouse port
* 1 x PS/2 Keyboard port

USB Port

* 2 x USB 3.0/2.0 ports
* 2 x USB 2.0/1.1 ports

D-Sub Port 1 x D-Sub port
LAN Port

* Realtek® GbE LAN chip (10/100/1000 Mbit)
* 1 x RJ-45 port

Audio Port

* Realtek® ALC887 codec
* High Definition Audio
* 2/4/5.1/7.1-channel

Operating System
Supported OS Support for Windows 10/8.1/8/7
Warranty
Warranty 03 Years Warranty

Description:


Gigabyte GA-H81M-DS2 4th Gen Micro ATX Motherboard


Gigabyte GA-H81M-DS2 4th Gen Micro ATX Motherboard comes with 4th Gen Intel Core i3/i5/i7 Pentium processors, Core i3, i5, i7, i9 processors. Socket LGA1150, Chipset Intel H81, Bios is 2 x 64 Mbit flash, Use of licensed AMI UEFI BIOS, DMI 2.7, WfM 2.0, PnP 1.0a, SM BIOS 2.7, ACPI 5.0, 22.6cm x 17cm ATX Form Factor. Gigabyte GA-H81M-DS2 DDR3 Motherboard Maximum 16 GB DDR3 Dual Channel Memory, 2 x DDR3 DIMM sockets, Supported Bus Speed DDR3 1600/1333 MHz. Buy Gigabyte GA-H81M-DS2 4th Gen Micro ATX Motherboard at the best price in BD.


For more Motherboard information Please Check Gigabyte MotherboardMSI MotherboardAsus MotherboardEsonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.


Gigabyte GA-H81M-DS2 Motherboard comes with standard Graphics such as a 1 x D-Sub port, supporting a maximum resolution of 1920x1200, Maximum shared memory of 1 GB. Gigabyte GA-H81M-DS2 DDR3 Motherboard Expansion PCI slot is 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots also various Internal Connectors such as 4 x 24-pin ATX main power connector, 2 x SATA 6Gb/s connectors, 1 x CPU fan header, 1 x front panel audio header, etc. GA-H81M-DS2 Gigabyte Motherboard has 5 x USB 3.2 Gen 1 ports, 6 x USB 2.0/1.1 ports, 1 x HDMI port, 1 x D-Sub port, Realtek GbE LAN chip (10/100/1000 Mbit), and High Definition Audio with 2/4/5.1/7.1-channel. This Gigabyte GA-H81M-DS2 Motherboard Support for Windows 10 64-bit. You can enjoy 03 Years Warranty. Buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
