| Special Price | : | ৳15,900 |
| Regular Price(EMI) | : | ৳17,500 |
| Status | : | In Stock |
| Brand | : | Gigabyte |
| Product Code | : | B760M D2H |
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।
| General Information | ||
| Model | B760M D2H DDR4 | |
| Brand | Gigabyte | |
| Supported Processor | * Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors * L3 cache varies with CPU |
|
| Chipset | Intel® B760 Express Chipset | |
| Socket | LGA1700 | |
| BIOS | * 1 x 128 Mbit flash * Use of licensed AMI UEFI BIOS * PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 22.5cm | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual Channel | |
| Slot | 2 x DIMM | |
| Supported Bus Speed | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules |
|
| Maximum Memory | up to 64GB (32 GB single DIMM capacity) | |
| Graphics Information | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: * 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz * 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. |
|
| Expansion Slots | ||
| PCI | CPU: * 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: * 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
|
| Storage Information | ||
| M.2 | CPU: * 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: * 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
|
| SATA | 4 x SATA 6Gb/s connectors | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| Connector Information | ||
| Internal Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
|

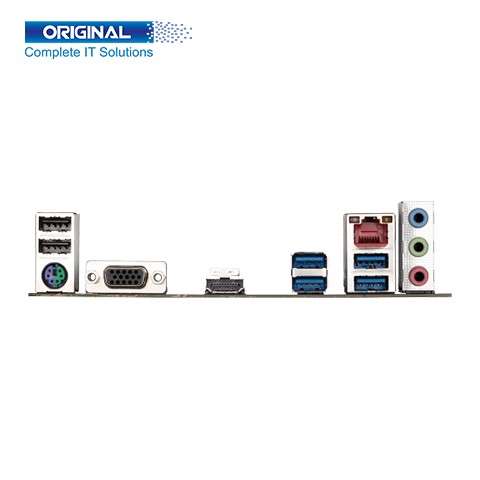

| Port Information | ||
| PS/2 Port | 1 x PS/2 keyboard/mouse port | |
| USB Port | Chipset: * 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) * 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: * 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| HDMI Port | 1 x HDMI port | |
| D-Sub Port | 1 x D-Sub port | |
| LAN Port | 1 x RJ-45 port Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|
| Audio Jack | 3 x audio jacks | |
| Operating System | ||
| Supported OS | Support for Windows 11 64-bit Support for Windows 10 64-bit |
|
| Warranty | ||
| Warranty | 03 Years | |

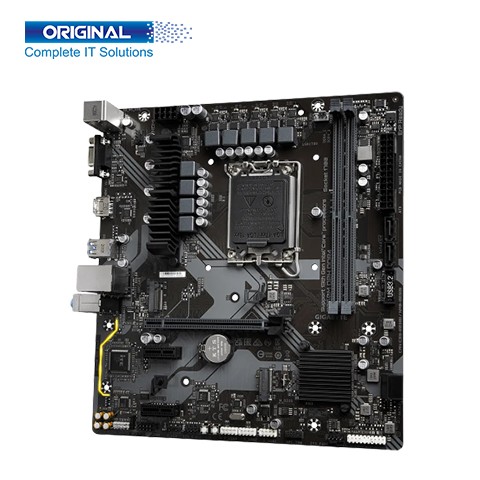

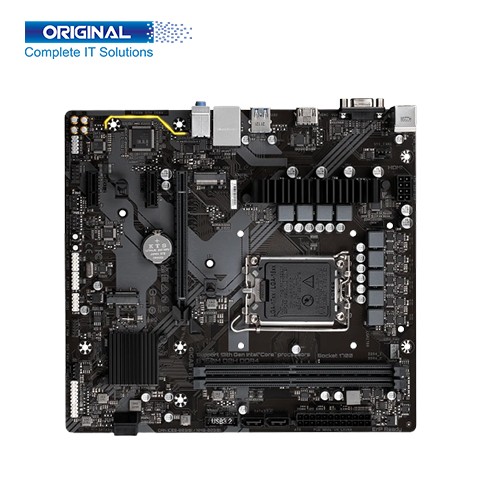

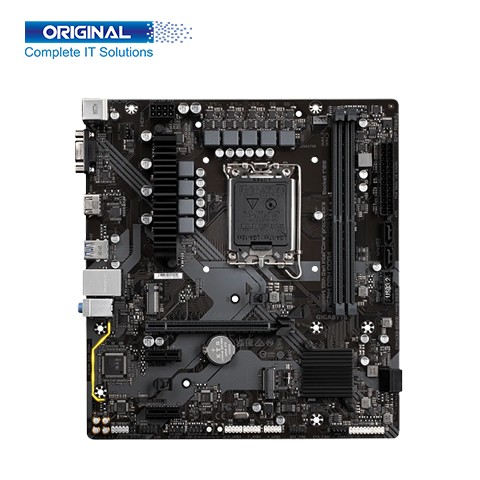

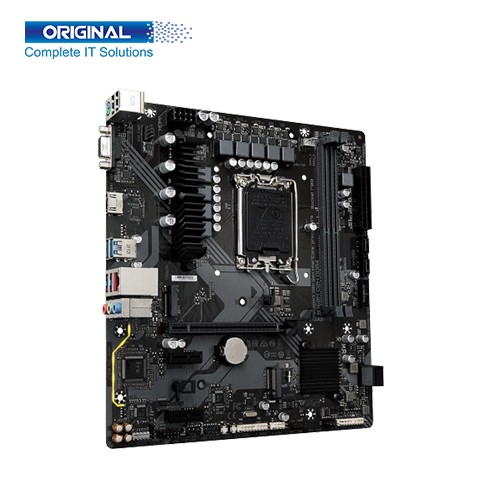

Gigabyte B760M D2H DDR4 13th and 12th Gen Motherboard. The Gigabyte B760 provides customers with advanced features and the latest technologies. Gigabyte motherboards have upgraded power solutions, the latest storage standards, and outstanding connectivity to optimize gaming performance.
Gigabyte B760M D2H DDR4 13th and 12th Gen Motherboard. The model is B760M D2H DDR4. The brand is Gigabyte—the Motherboard Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors. L3 cache varies with the CPU. Intel® B760 Express Chipset. Socket LGA1700. 1 x 128 Mbit flash. Use of licensed AMI UEFI BIOS. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. Micro ATX Form Factor; 24.4cm x 24.4cm. Memory Dual Channel DDR4 2 x DIMM. Maximum Memory up to 64GB (32 GB single DIMM capacity). 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16. 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1. 4 x SATA 6Gb/s connectors. RAID 0, RAID 1, RAID 5, and RAID 10 support SATA storage devices. Port 1 x PS/2 keyboard/mouse port. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header). 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header). 4 x USB 2.0/1.1 ports are available through the internal USB headers. 1 x HDMI port. 1 x D-Sub port. 1 x RJ-45 port. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps). 3 x audio jacks. Intel® Wi-Fi 6E AX210. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands. BLUETOOTH 5.3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate. They supported Operating System Support for Windows 11 64-bit & Support for Windows 10 64-bit. The Gigabyte B760M D2H DDR4 13th and 12th Gen Motherboard comes with 03 years warranty.
