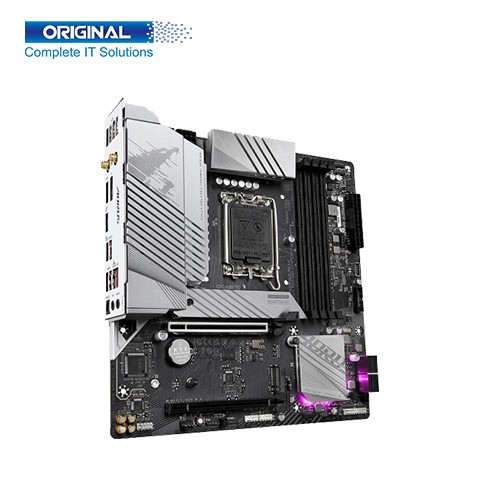

Gigabyte B760M AORUS ELITE AX DDR5 13th and 12th Gen Motherboard

Special Price :           ৳26,150
Regular Price(EMI) :           ৳28,200
Status :           In Stock
Brand :           Gigabyte
Product Code :           B760M AORUS ELITE AX

Short Details:

  • • Model: B760M AORUS ELITE AX
  • • Chipset: Intel® B760 Express
  • • Socket: LGA1700
  • • Form Factor: Micro ATX

See More Details

৳26,150

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model B760M AORUS ELITE AX
Brand Gigabyte
Supported Processor

* Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors


* L3 cache varies with CPU

Chipset Intel® B760 Express Chipset
Socket LGA1700
BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Memory Information
Memory Types DDR5
Channel Dual Channel
Slot 4 x DIMM
Supported Bus Speed

Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules

Maximum Memory up to 128 GB (32 GB single DIMM capacity)
Graphics Information
Graphics

Integrated Graphics Processor-Intel® HD Graphics support:


* 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.0 version and HDCP 2.3.

* 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

Expansion Slots
PCI

CPU:

* 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.


Chipset:

* 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Storage Information
M.2

CPU:

* 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)


Chipset:

* 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

SATA 4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Connector Information
Internal Connector

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

2 x addressable LED strip headers

2 x RGB LED strip headers

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

2 x Thunderbolt™ add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x Q-Flash Plus button

1 x reset button

1 x reset jumper

1 x Clear CMOS jumper

Port Information
USB Port

1 x USB Type-C® port, with USB 3.2 Gen 2x2 support

1 x USB 3.2 Gen 2 Type-A port (red)

3 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

HDMI Port 1 x HDMI port
Display Port 1 x DisplayPort
SMA Antenna Connectors 2 x SMA antenna connectors (2T2R)
Optical S/PDIF 1 x optical S/PDIF Out connector
LAN Port

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

1 x RJ-45 port

Audio Jack 2 x audio jacks
Other Information
Wireless & Bluetooth

Intel® Wi-Fi 6E AX211

WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

BLUETOOTH 5.3

Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Operating System
Supported OS

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Warranty
Warranty 03 Years

Description:


Gigabyte B760M AORUS ELITE AX DDR5 Motherboard


Gigabyte B760M AORUS ELITE AX DDR5 Motherboard. The Gigabyte B760M series provides customers with advanced features and the latest technologies. GIGABYTE motherboards have upgraded power solutions, the latest storage standards, and outstanding connectivity to optimize gaming performance.


Gigabyte B760M AORUS ELITE AX DDR5 Motherboard. The model is B760M AORUS ELITE AX. The brand is Gigabyte. The Motherboard Support 13th and 12th Gen Series Processors. Intel B760 Express Chipset. Socket LGA1700. Q-Flash Plus: Update BIOS Without Installing the CPU, Memory, and Graphics Card. Micro ATX Form Factor; 24.4cm x 24.4cm. Dual Channel DDR5:4*SMD DIMMs with XMP 3.0 Memory Module Support. Maximum Memory up to 128 GB (32 GB single DIMM capacity). Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors. Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance. 4 x SATA 6Gb/s connectors. RAID 0, RAID 1, RAID 5, and RAID 10 support SATA storage devices. Fast Networks:2.5GbE LAN & Intel® Wi-Fi 6E 802.11ax Extended Connectivity:1 x USB Type-C® port, with USB 3.2 Gen 2x2 support. 1 x USB 3.2 Gen 2 Type-A port (red). 3 x USB 3.2 Gen 1 ports. 4 x USB 2.0/1.1 ports. 1 x HDMI port. 1 x DisplayPort. 2 x SMA antenna connectors (2T2R). 1 x optical S/PDIF Out connector. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps). 1 x RJ-45 port. 2 x audio jacks. Supported Operating System Windows 11 64-bit & Windows 10 64-bit. The Gigabyte B760M AORUS ELITE AX DDR5 Motherboard has come with 03 years warranty.
