| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Gigabyte |
| Product Code | : | B760 AORUS ELITE AX Wi-Fi |
| General Information | ||
| Model | B760 AORUS ELITE AX Wi-Fi | |
| Brand | Gigabyte | |
| Supported Processor | * LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors * L3 cache varies with CPU |
|
| Chipset | Intel® B760 Express Chipset | |
| Socket | LGA1700 | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Memory Information | ||
| Memory Types | DDR5 | |
| Channel | Dual Channel | |
| Slot | 4 x DDR5 DIMM sockets | |
| Supported Bus Speed | Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules |
|
| Maximum Memory | up to 192 GB (48 GB single DIMM capacity) | |
| Graphics Information | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 |
|
| Expansion Slots | ||
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) |
|
| Storage Information | ||
| M.2 | CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) |
|
| SATA | 4 x SATA 6Gb/s connectors | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| Connector Information | ||
| Internal Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
|
| Port Information | ||
| USB Port | 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports |
|
| HDMI Port | 1 x HDMI port | |
| Display Port | 1 x DisplayPort | |
| SMA Antenna Connectors | 2 x SMA antenna connectors (2T2R) | |
| S/PDIF | 1 x optical S/PDIF Out connector | |
| LAN Port | 1 x RJ-45 port
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|
| Audio Jack | 2 x audio jacks | |
| Other Information | ||
| Wireless & Bluetooth | Intel® Wi-Fi 6E AX211 (For PCB rev. 1.0) * WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands * BLUETOOTH 5.3 * Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Realtek® Wi-Fi 6E RTL8852CE (For PCB rev. 1.1) * WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands * BLUETOOTH 5.3 * Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|
| Operating System | ||
| Supported OS | Windows 11 64-bit Windows 10 64-bit |
|
| Warranty | ||
| Warranty | 03 Years | |

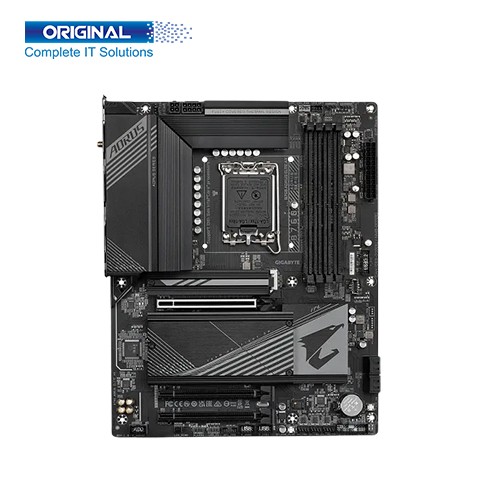

Gigabyte B760 AORUS ELITE AX Wi-Fi DDR5 Motherboard. The Gigabyte B760 series provides customers with advanced features and the latest technologies. GIGABYTE motherboards have upgraded power solutions, the latest storage standards, and outstanding connectivity to optimize gaming performance.
Gigabyte B760 AORUS ELITE AX Wi-Fi DDR5 Motherboard. The model is B760 AORUS ELITE AX Wi-Fi. The brand is Gigabyte. The Motherboard Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors. L3 cache varies with the CPU. Intel® B760 Express Chipset. Socket LGA1700. 1 x 256 Mbit flash. Use of licensed AMI UEFI BIOS. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. ATX Form Factor; 30.5cm x 24.4cm. Dual Channel 4 x DDR5 DIMM sockets. Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules. Maximum Memory up to 192 GB (48 GB single DIMM capacity). 2*PCIe 4.0 x4 M.2 Connectors. PCIe 4.0x16 Slot with Quick Release Design. Fast Networks 2.5GbE LAN & Wi-Fi 6E 802.11ax. 1 x PS/2 keyboard/mouse port. 1 x USB Type-C® port, with USB 3.2 Gen 2 support. 1 x USB 3.2 Gen 2 Type-A port (red). 4 x USB 3.2 Gen 1 ports. 4 x USB 2.0/1.1 ports. 1 x HDMI port. 1 x DisplayPort. 2 x SMA antenna connectors (2T2R). 1 x optical S/PDIF Out connector. Realtek® GbE LAN chip (1 Gbps/100 Mbps). 2 x audio jacks. Supported Operating System Windows 11 64-bit & Windows 10 64-bit. The Gigabyte B760 AORUS ELITE AX Wi-Fi DDR5 Motherboard has come with 03 years warranty.
