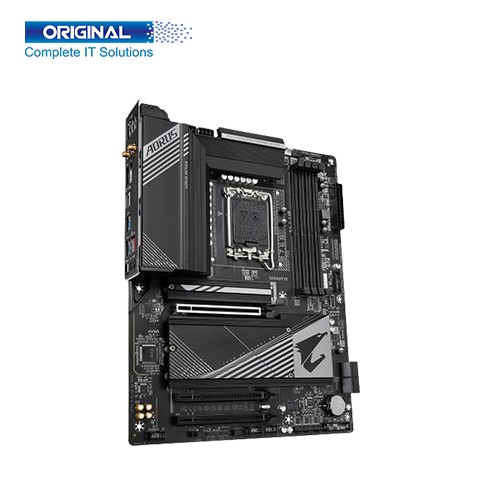

Gigabyte B760 AORUS ELITE AX DDR4 13th and 12th Gen Motherboard

Price :           To be announced
Status :           Out of Stock
Brand :           Gigabyte
Product Code :           B760 AORUS ELITE AX DDR4

Short Details:

  • • Model: B760 AORUS ELITE AX DDR4
  • • Chipset: Intel B760 Express Chipset
  • • Socket: LGA1700
  • • Form Factor: ATX

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model B760 AORUS ELITE AX DDR4
Brand Gigabyte
Supported Processor

* Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors


* L3 cache varies with CPU

Chipset Intel B760 Express Chipset
Socket LGA1700
BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor ATX Form Factor; 30.5cm x 24.4cm
Memory Information
Memory Types DDR4
Channel Dual Channel
Slot 4 x DIMM
Supported Bus Speed

Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules

Maximum Memory up to 128 GB (32 GB single DIMM capacity)
Graphics Information
Graphics

Integrated Graphics Processor-Intel® HD Graphics support:


* 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.0 version and HDCP 2.3.

* 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

Expansion Slots
PCI

CPU:

* 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.


Chipset:

* 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)

Storage Information
M.2

CPU:

* 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)


Chipset:

* 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)

SATA 4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Connector Information
Internal Connector

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

1 x CPU fan/water cooling pump header

3 x system fan headers

1 x system fan/water cooling pump header

2 x addressable LED strip headers

2 x RGB LED strip headers

3 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x reset button

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper

Port Information
USB Port

1 x USB Type-C® port, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 2 Type-A port (red)

4 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

HDMI Port 1 x HDMI port
Display Port 1 x DisplayPort
Optical S/PDIF 1 x optical S/PDIF Out connector
SMA Antenna Connectors 2 x SMA antenna connectors (2T2R)
LAN Port

1 x RJ-45 port

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Audio Jack 2 x audio jacks
Operating System
Supported OS

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Warranty
Warranty 03 Years

Description:


Gigabyte B760 AORUS ELITE AX DDR4 Motherboard


Gigabyte B760 AORUS ELITE AX DDR4 Motherboard. The Gigabyte B760 series provides customers with advanced features and the latest technologies. GIGABYTE motherboards have upgraded power solutions, the latest storage standards, and outstanding connectivity to optimize gaming performance.


Gigabyte B760 AORUS ELITE AX DDR4 Motherboard. The model is B760 AORUS ELITE AX DDR4. The brand is Gigabyte. The Motherboard Support 13th and 12th Gen Series Processors. Intel B760 Express Chipset. Socket LGA1700. Q-Flash Plus: Update BIOS Without Installing the CPU, Memory, and Graphics Card. Micro ATX Form Factor; 24.4cm x 24.4cm. Dual Channel DDR4:4*DIMMs with XMP Memory Module Support. Maximum Memory up to 128 GB (32 GB single DIMM capacity). Next Generation Storage:3*PCIe 4.0 x4 M.2 Connectors. Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance. 4 x SATA 6Gb/s connectors. RAID 0, RAID 1, RAID 5, and RAID 10 support SATA storage devices. Fast Networks:2.5GbE LAN. 1 x USB Type-C® port, with USB 3.2 Gen 2 support. 1 x USB 3.2 Gen 2 Type-A port (red). 4 x USB 3.2 Gen 1 port. 4 x USB 2.0/1.1 ports. 1 x HDMI port. 1 x DisplayPort. 1 x optical S/PDIF Out connector. 1 x RJ-45 port. 2 x audio jacks. Supported Operating System Windows 11 64-bit & Windows 10 64-bit. The Gigabyte B760 AORUS ELITE AX DDR4 Motherboard has come with 03 years warranty.
