| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Gigabyte |
| Product Code | : | B660M GAMING X |
| General Information | ||
| Model | B660M GAMING X | |
| Brand | Gigabyte | |
| Supported Processor | Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors | |
| Chipset | Intel B660 Express Chipset | |
| Socket | LGA1700 | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Memory Information | ||
| Memory Type | DDR4 | |
| Channel | Dual-channel | |
| Slot | 4 x DDR DIMM | |
| Supported Bus Speed | Support for DDR5 5600(O.C.) / 5400(O.C.) / 5200(O.C.) /4800/4000 MHz memory modules | |
| Maximum Memory | Up to 128 GB | |
| Graphics Information | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) (The PCIEX4 slot conforms to PCI Express 3.0 standard.) |
|
| Storage Information | ||
| M.2 | 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
|
| SATA | 4 x SATA 6Gb/s connectors | |
| RAID | Support for RAID 0, RAID 1, RAID 5, and RAID 10 | |
| Connector Information | ||
| Internal Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x S/PDIF Out header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
|

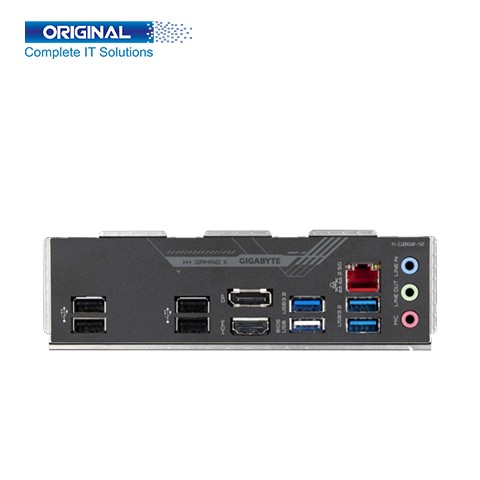

| Port Information | ||
| USB Port | 3 x USB 3.2 Gen 1 ports 5 x USB 2.0/1.1 ports |
|
| HDMI Port | 1 x HDMI 2.1 port | |
| Display Port | 1 x DisplayPort | |
| LAN Port | 1 x RJ-45 port 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|
| Audio Jack | 3 x audio jacks | |
| Operating System | ||
| Supported OS | * Windows 11 64-bit * Windows 10 64-bit |
|
| Warranty | ||
| Warranty | 03 Years Warranty | |
The Gigabyte B660M GAMING X DDR4 12th Gen Intel Motherboard with the B660M GAMING X motherboard. Its delivery and dominant thermal design, are glorified with the complete memory overclocking technology to crown your PC with the best Alder Lake performance in all its gaming glory. It ensures maximum Turbo Boost and overclocking performance of Intel's new generation CPU. Buy Gigabyte B660M GAMING X DDR4 12th Gen Intel Motherboard at the best price in BD
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
Gigabyte B660M GAMING X DDR4 12th Gen Intel Motherboard Model is B660M gaming x DDR4. The Brand is Gigabyte. The Motherboard Supported 12th Generation Intel Core, Pentium Gold, and Celeron Processors. Chipset Intel B660 Express Chipset. Socket LGA1700. BIOS 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. Micro ATX Form Factor; 24.4cm x 24.4cm. Memory Type DDR4. Dual-channel. Slot 4 x DDR DIMM. Supported Bus Speed DDR5 5600(O.C.) / 5400(O.C.) / 5200(O.C.) /4800/4000 MHz memory modules. Maximum Memory Up to 128 GB. Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Support for HDMI 2.1 version and HDCP 2.3. Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz, Support for DisplayPort 1.2 version and HDCP 2.3. PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) (The PCIEX4 slot conforms to PCI Express 3.0 standard.). 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU), 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB). 4 x SATA 6Gb/s connectors. Support for RAID 0, RAID 1, RAID 5, and RAID 10. 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 3 x system fan headers, 2 x addressable LED strip headers, 2 x RGB LED strip headers, 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C® header, with USB 3.2 Gen 2 support, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x S/PDIF Out header, 2 x Thunderbolt™ add-in card connectors, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), 1 x serial port header, 1 x reset button, 1 x Q-Flash Plus button, 1 x reset jumper, 1 x Clear CMOS jumper. USB Port 3 x USB 3.2 Gen 1 ports, 5 x USB 2.0/1.1 ports, 1 x HDMI 2.1 port, 1 x DisplayPort, 1 x RJ-45 port, 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps), 3 x audio jacks. Supported Operating System Windows 11 64-bit * Windows 10 64-bit. Gigabyte B660M GAMING X DDR5 12th Gen Micro ATX Motherboard has Three years warranty.
