| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Gigabyte |
| Product Code | : | B660M GAMING X AX DDR4 |
| General Information | ||
| Model | B660M GAMING X AX DDR4 |
|
| Brand | Gigabyte | |
| Supported Processor | Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors | |
| Chipset | Intel® B660 Express Chipset | |
| Socket | LGA1700 | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Memory Information | ||
| Memory Types | DDR4 |
|
| Channel | Dual channel | |
| Slot | 4 x DDR DIMM | |
| Supported Bus Speed | Support for DDR4 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) /3200/3000/2933/2666/2400/2133 MHz memory modules | |
| Maximum Memory | up to 128 GB | |
| Graphics Information | ||
| Graphics | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x4 (PCIEX4) |
|
| Storage Information | ||
| M.2 | 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
|
| SATA | 4 x SATA 6Gb/s connectors | |
| RAID | Support for RAID 0, RAID 1, RAID 5, and RAID 10 | |
| Connector Information | ||
| Internal Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x S/PDIF Out header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
|

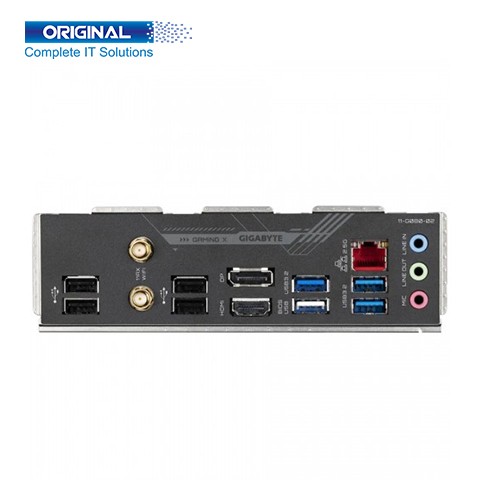

| Port Information | ||
| USB Port | * Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 1 x USB 2.0/1.1 port on the back panel * Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
| HDMI Port | 1 x HDMI 2.1 port | |
| Display Port | 1 x DisplayPort | |
| LAN Port | 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Audio Jack | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| Antenna | 2 x SMA antenna connectors (2T2R) | |
| Other Information | ||
| WIFI & BLUETOOTH | * Intel® Wi-Fi 6 AX200 (For PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Intel® Wi-Fi 6E AX211 (For PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|
| Operating System | ||
| Supported OS | Support for Windows 11 64-bit Support for Windows 10 64-bit |
|
| Warranty | ||
| Warranty | 3 Years Warranty |
|

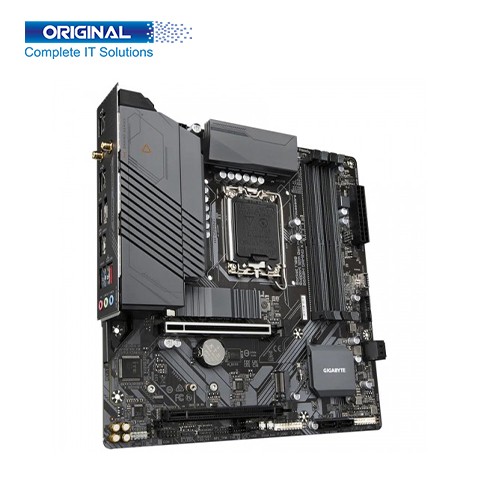

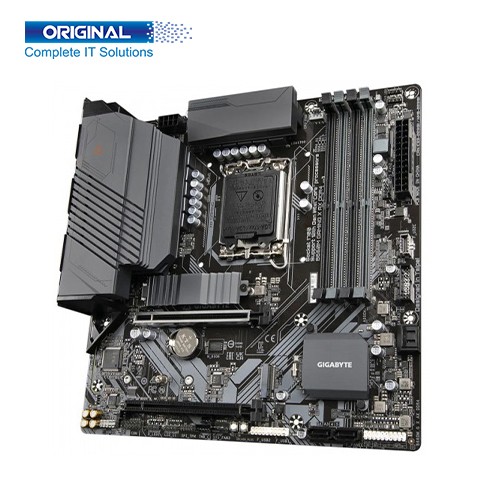

Gigabyte B660M GAMING X AX DDR4 12th Gen Micro ATX Motherboard With more cores’ processors, thermal and power design is more important to ensure the temperature keeps lower. Support for 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors. GIGABYTE extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPU run at full speed with Gigabyte B660M GAMING X AX DDR4 Motherboard.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different types of IT Product information please Click here.
Gigabyte B660M Aorus Pro DDR5 12th Gen Micro ATX Motherboard. Support for 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors. Intel® B660 Express Chipset. Socket LGA1700. Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm. Gigabyte B660M GAMING X AX DDR4 Memory Types DDR4, Dual-Channel. Slot 4 x DIMM. Supported Bus Speed is Support for DDR4 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) /3200/3000/2933/2666/2400/2133 MHz memory modules. Maximum Memory 128 GB. Graphics is 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, and 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz. PCI is 1 x PCI Express x16 slot, running at x16 (PCIEX16), 1 x PCI Express x16 slot, running at x4 (PCIEX4). Storage is 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU), 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB), 4 x SATA 6Gb/s connectors, Support for RAID 0, RAID 1, RAID 5, and RAID 10. USB Port is Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header, 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header), 1 x USB 2.0/1.1 port on the back panel, Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers), HDMI Port is 1 x HDMI 2.1 port, Display Port is 1 x DisplayPort, LAN Port is Intel®2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps), Audio Port is 7.1-Channel High Definition Audio, Supports S/PDIF output and Antenna is 2 x SMA antenna connectors (2T2R). Supported Operating System Support for Windows® 11 64-bit, and Windows® 10 64-bit. Gigabyte B660M Aorus Pro DDR5 12th Gen Micro ATX Motherboard has Three years warranty.
