Gigabyte B660M DS3H AX DDR4 12th Gen Micro ATX Motherboard

Special Price :           ৳13,900
Regular Price(EMI) :           ৳15,500
Status :           In Stock
Brand :           Gigabyte
Product Code :           B660M DS3H AX

Short Details:

  • • Model: Gigabyte B660M DS3H AX
  • • Chipset: Intel® B660 Express Chipset
  • • Socket: LGA1700
  • • Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm

See More Details

৳13,900

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model Gigabyte B660M DS3H AX
Brand Gigabyte
Supported Processor Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
Chipset Intel® B660 Express Chipset
Socket LGA1700
BIOS

* 1 x 256 Mbit flash

* Use of licensed AMI UEFI BIOS

* PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Memory Information
Memory Types DDR4
Channel Dual channel
Slot 4 x DIMM Slots
Supported Bus Speed

* Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules

* 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

* Dual channel memory architecture

* Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

* Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

* Support for Extreme Memory Profile (XMP) memory modules

Maximum Memory up to 128 GB
Graphics Information
Graphics

1 x D-Sub port, supporting a maximum resolution of [email protected] Hz

1 x HDMI port, supporting a maximum resolution of [email protected] Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support native HDMI 2.1 TMDS compatible ports.

1 x DisplayPort, supporting a maximum resolution of [email protected] Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

1 x DisplayPort, supporting a maximum resolution of [email protected] Hz

* Support for DisplayPort 1.2 version.

Expansion Slots
PCI

1 x PCI Express x16 slot, running at x16

(The PCIEX16 slot conforms to PCI Express 4.0 standard.)

2 x PCI Express x1 slots

(The PCIEX1 slots conform to PCI Express 3.0 standard.)

Storage Information
M.2 2 x M.2 Socket 3 connectors
SATA 4 x SATA 6Gb/s connectors
RAID Support for RAID 0, RAID 1, RAID 5, and RAID 10
Connector Information
Internal Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

1 x addressable LED strip header

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x S/PDIF Out header

1 x Q-Flash Plus button

1 x reset button

1 x reset jumper

1 x Clear CMOS jumper

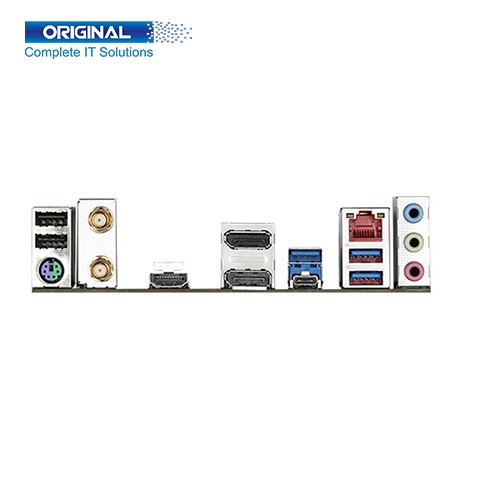

Port Information
USB Port


2 x USB 2.0/1.1 ports

1 x PS/2 keyboard/mouse port

2 x SMA antenna connectors (2T2R)

1 x HDMI port

2 x DisplayPorts

3 x USB 3.2 Gen 1 ports

1 x USB Type-C® port, with USB 3.2 Gen 2 support

1 x RJ-45 port

3 x audio jacks


LAN Port Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Audio Port

* Realtek® Audio CODEC

* High Definition Audio

* 2/4/5.1/7.1-channel

Display Port 1 x DisplayPort, supporting a maximum resolution of [email protected] Hz
Q-Flash Plus Button 1 x Q-Flash Plus button
Clear CMOS Button 1 x Clear CMOS jumper
Operating System
Supported OS

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Warranty
Warranty 03 Years

Descripton:


Gigabyte B660M DS3H AX DDR4 12th Gen Micro ATX Motherboard


Gigabyte B660M DS3H Layoff Motherboard From Gigabyte. Gigabyte B660M DS3H Layoff Motherboard is offering a tested and proven platform that ensures proper comity with biographies up to 5333 MHz and beyond. All druggies need to do to attain this performance boost is to insure that their memory module is XMP able and that the XMP function is actuated and enabled on their GIGABYTE motherboard.  Adoption of2.5 G LAN gives up to2.5 GbE network connectivity, with at least 2 times faster transfer pets compared to general 1 GbE networking, impeccably designed for gamers with ultimate online gaming experience. Buy Gigabyte B660M DS3H AX DDR4 12th Gen Micro ATX Motherboard at the best price in BD.


For more Motherboard information Please Check Gigabyte MotherboardMSI MotherboardAsus MotherboardEsonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.


Gigabyte B660M DS3H AX DDR4 12th Gen Micro ATX Motherboard Brand is Gigabyte, Supported Processor Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors, Chipset Intel® B660 Express Chipset, Socket LGA1700,BIOS 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0,Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm. The Memory Types DDR4,Channel Dual channel, Slot 4 x DIMM Slots, Supported Bus Speed Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules,4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory, Dual channel memory architecture, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode),Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules, Maximum Memory up to 128 GB. This motherboard  Graphics 1 x D-Sub port, supporting a maximum resolution of [email protected] Hz,1 x HDMI port, supporting a maximum resolution of [email protected] Hz, Support for HDMI 2.1 version and HDCP 2.3.Support native HDMI 2.1 TMDS compatible ports.1 x DisplayPort, supporting a maximum resolution of [email protected] Hz, Support for DisplayPort 1.2 version and HDCP 2.3,1 x DisplayPort, supporting a maximum resolution of [email protected] Hz, Support for DisplayPort 1.2 version. The PCI 1 x PCI Express x16 slot, running at x16(The PCIEX16 slot conforms to PCI Express 4.0 standard.),2 x PCI Express x1 slots(The PCIEX1 slots conform to PCI Express 3.0 standard.),M.2 2 x M.2 Socket 3 connectors, SATA 4 x SATA 6Gb/s connectors, RAID Support for RAID 0, RAID 1, RAID 5, and RAID 10. Internal Connectors 1 x 24-pin ATX main power connector,1 x 8-pin ATX 12V power connector,1 x CPU fan header,3 x system fan headers,1 x addressable LED strip header 1 x RGB LED strip header,2 x M.2 Socket 3 connectors,4 x SATA 6Gb/s connectors,1 x front panel header,1 x front panel audio header,1 x USB 3.2 Gen 1 header,2 x USB 2.0/1.1 headers,1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only),1 x S/PDIF Out header,1 x Q-Flash Plus button,1 x reset button,1 x reset jumper,1 x Clear CMOS jumper. Gigabyte B660M DS3H AX USB Port 2 x USB 2.0/1.1 ports,1 x PS/2 keyboard/mouse port,2 x SMA antenna connectors (2T2R),1 x HDMI port,2 x Display Ports 3 x USB 3.2 Gen 1 ports,1 x USB Type-C® port, with USB 3.2 Gen 2 support,1 x RJ-45 por 3 x audio jacks, LAN Port Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)Audio Port Realtek® Audio CODEC, High Definition Audio 2/4/5.1/7.1-channel,Display Port 1 x DisplayPort, supporting a maximum resolution of [email protected] Hz,Q-Flash Plus Button 1 x Q-Flash Plus button, Clear CMOS Button 1 x Clear CMOS jumper, Supported OS Support for Windows 11 64-bit,Support for Windows 10 64-bit.Gigabyte B660M DS3H AX DDR4 12th Gen Micro ATX Motherboard.
