| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Gigabyte |
| Product Code | : | B660M Aorus Pro AX |
| General Information | ||

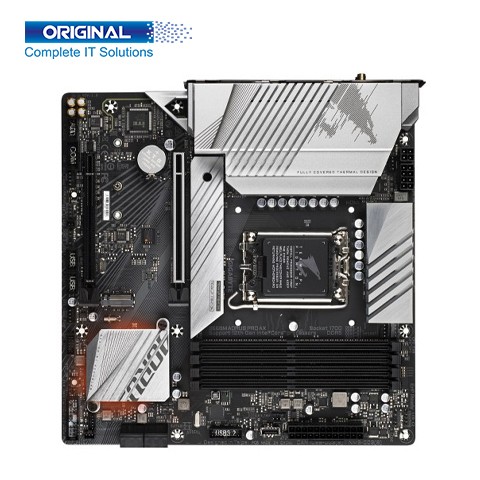

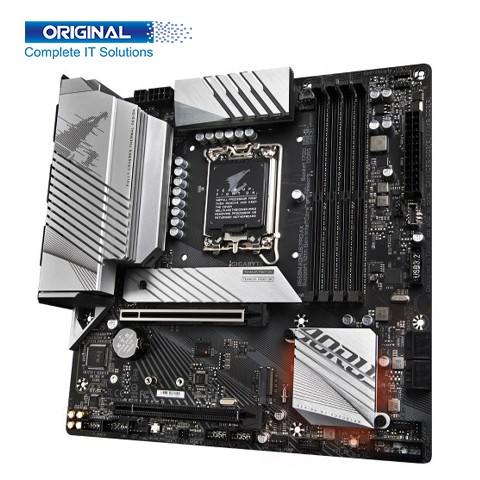

| Model | Gigabyte B660M Aorus Pro AX | |
| Brand | Gigabyte | |
| Supported Processor | LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors* | |
| Chipset | Intel B660 Express Chipset | |
| Socket | LGA1700 | |
| Bios | * 1 x 256 Mbit flash
* Use of licensed AMI UEFI BIOS
* PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Memory Information | ||
| Memory Types | DDR5 | |
| Channel | Dual Channel | |
| Slot | 4 x DIMM | |
| Supported Bus Speed | * Support for DDR5 5600(O.C.) / 5400(O.C.) / 5200(O.C.) /4800/4000 MHz memory modules
* Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
* Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
* Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | up to 128 GB (32 GB single DIMM capacity) of system memory | |
| Graphics Information | ||
| Graphics | * Integrated Graphics Processor-Intel® HD Graphics support:
* 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
* Support native HDMI 2.1 TMDS compatible ports
* 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
* (Graphics specifications may vary depending on CPU support.) |
|
| Expansion Slots | ||
| PCI | * 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.)
* 1 x PCI Express x16 slot, running at x4 (PCIEX4) (The PCIEX4 slot conforms to PCI Express 3.0 standard.) |
|
| Storage Information | ||
| M.2 | * 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
* 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
|
| SATA | 4 x SATA 6Gb/s connectors | |
| RAID | Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 | |
| Connector Information | ||
| Internal Connectors | * 1 x 24-pin ATX main power connector * 1 x 8-pin ATX 12V power connector * 1 x 4-pin ATX 12V power connector * 1 x CPU fan header * 1 x water cooling CPU fan header * 3 x system fan headers * 1 x system fan/water cooling pump header * 2 x addressable LED strip headers * 2 x RGB LED strip headers * 2 x M.2 Socket 3 connectors * 4 x SATA 6Gb/s connectors * 1 x front panel header * 1 x front panel audio header * 1 x USB Type-C® header, with USB 3.2 Gen 2 support * 1 x USB 3.2 Gen 1 header * 2 x USB 2.0/1.1 headers * 2 x Thunderbolt™ add-in card connectors * 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) * 1 x serial port header * 1 x reset button * 1 x Q-Flash Plus button * 1 x reset jumper * 1 x Clear CMOS jumper |
|

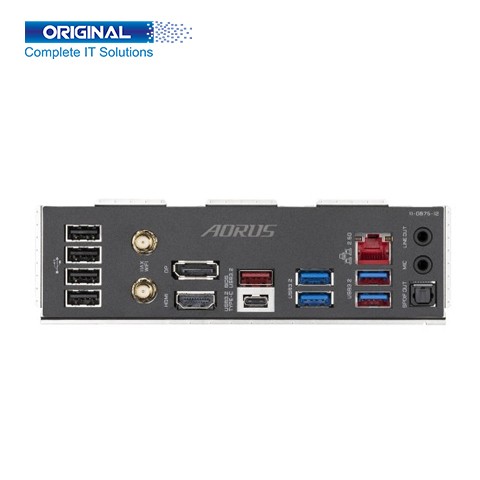

| Port Information | ||
| USB Port | * 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
* 1 x USB 3.2 Gen 2 Type-A port (red)
* 4 x USB 3.2 Gen 1 ports
* 4 x USB 2.0/1.1 ports |
|
| HDMI Port | 1 x HDMI port | |
| Display Port | 1 x DisplayPort | |
| LAN Port | * Intel®2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
* 1 x RJ-45 port |
|
| Audio Port | * Realtek® Audio CODEC
* 2 x audio jacks |
|
| S/PDIF Port | 1 x optical S/PDIF Out connector | |
| Antnna | 2 x SMA antenna connectors (2T2R) | |
| Unique Information | ||
| Unique Features | * Support for APP Center * Available applications in APP Center may vary by motherboard * model. Supported functions of each application may also vary * depending on motherboard specifications. * @BIOS * EasyTune * Fast Boot * Game Boost * ON/OFF Charge * RGB Fusion * Smart Backup * System Information Viewer * Support for Q-Flash Plus * Support for Q-Flash * Support for Xpress Install |
|
| Operating Systems | ||
| Supported OS | * Support for Windows 11 64-bit
* Support for Windows 10 64-bit |
|
| Warranty | ||
| Warranty | 3 Years Warranty | |
Gigabyte B660M Aorus Pro AX DDR5 12th Gen Micro ATX Motherboard. The new king of gaming platforms continues the legendary AORUS bloodline with the most robust power delivery and dominant thermal design. GIGABYTE still keeps up with the latest trends and provides our customers with advanced features and the latest technology. Gigabyte B660M Series Motherboards come with an upgraded power solution, the latest storage standards, and outstanding connectivity to enable optimized performance for gaming. Buy Gigabyte B660M Aorus Pro AX DDR5 12th Gen Micro ATX Motherboard at the best price in BD.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
Gigabyte B660M Aorus Pro AX DDR5 12th Gen Micro ATX Motherboard. Its Supported Processor LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold, and Celeron Processors Chipset Intel B660 Express, Chipset Socket LGA1700, Bios * 1 x 256 Mbit flash, * Use of licensed AMI UEFI BIOS, * PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm, Memory Types DDR5, Channel Dual Channel, Slot 4 x DIMM, Supported Bus Speed, * Support for DDR5 5600(O.C.) / 5400(O.C.) / 5200(O.C.) /4800/4000 MHz memory modules,* Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode),* Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules,* Support for Extreme Memory Profile (XMP) memory modules, Maximum Memory up to 128 GB (32 GB single DIMM capacity) of system memory. This is Graphics * Integrated Graphics Processor-Intel® HD Graphics support:* 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz,* Support for HDMI 2.1 version and HDCP 2.3,* Support native HDMI 2.1 TMDS compatible ports,* 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz,* Support for DisplayPort 1.2 version and HDCP 2.3,* (Graphics specifications may vary depending on CPU support.). Is PCI * 1 x PCI Express x16 slot, running at x16 (PCIEX16),* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot? (The PCIEX16 slot conforms to PCI Express 4.0 standard.),* 1 x PCI Express x16 slot, running at x4 (PCIEX4) (The PCIEX4 slot conforms to PCI Express 3.0 standard.). The USB Port * 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support,* 1 x USB 3.2 Gen 2 Type-A port (red),* 4 x USB 3.2 Gen 1 ports,* 4 x USB 2.0/1.1 ports, HDMI Port 1 x HDMI port, Display Port1 x DisplayPort LAN Port* Intel®2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps),* 1 x RJ-45 port, Audio Port * Realtek® Audio CODEC,* 2 x audio jacks, S/PDIF Port 1 x optical S/PDIF Out connector, Antenna 2 x SMA antenna connectors (2T2R). The Gigabyte B660M Aorus Pro AX DDR5 12th Gen Micro ATX Motherboard has a 3 Years Warranty.
