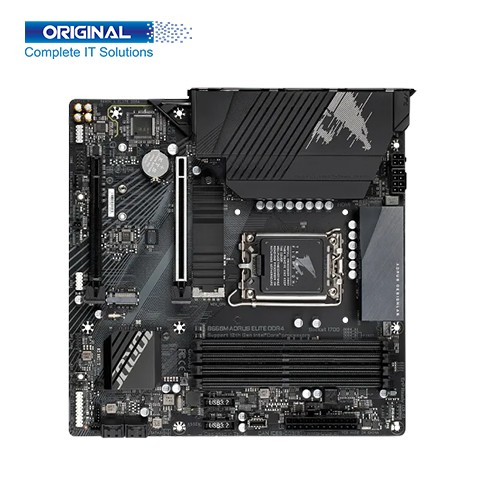

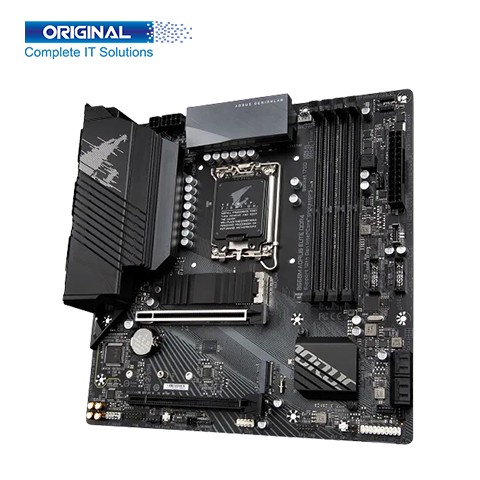

Gigabyte B660M AORUS ELITE DDR4 12th Gen Micro ATX Motherboard

Price :           To be announced
Status :           Out of Stock
Brand :           Gigabyte
Product Code :           B660M AORUS ELITE DDR4

Short Details:

  • • Model: B660M AORUS ELITE
  • • Chipset: Intel® B660 Express
  • • Socket: LGA1700
  • • Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model B660M AORUS ELITE
Brand Gigabyte
Supported Processor

LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*

L3 cache varies with the CPU

Chipset Intel® B660 Express Chipset
Socket LGA1700
BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Memory Information
Memory Types DDR4
Channel Dual Channel
Slot 4 x DIMM
Supported Bus Speed

5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules


4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Maximum Memory 128 GB (32 GB single DIMM capacity)
Graphics Information
Graphics

Integrated Graphics Processor-Intel HD Graphics support:

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support native HDMI 2.1 TMDS compatible ports

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

Expansion Slots
PCI

1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

(The PCIEX16 slot conforms to PCI Express 4.0 standard.)

1 x PCI Express x16 slot, running at x4 (PCIEX4)

(The PCI Express x4 slot conforms to PCI Express 3.0 standard.)

Storage Information
M.2

1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

SATA 4 x SATA 6Gb/s connectors
RAID Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
Connector Information
Internal Connector

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

2 x addressable LED strip headers

2 x RGB LED strip headers

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 2 support

2 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

2 x Thunderbolt™ add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x serial port header

1 x reset button

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper

Port Information
USB Port

Chipset:

1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support

1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal

USB header

1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

2 x USB 3.2 Gen 1 ports on the back panel

2 x USB 2.0/1.1 ports available through the internal USB header

Chipset+USB 3.2 Gen 1 Hub:

4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset+USB 2.0 Hub:

4 x USB 2.0/1.1 ports on the back panel

HDMI Port 1 x HDMI 2.0 port
Display Port 1 x DisplayPort
SMA Antenna 2 x SMA antenna connectors (2T2R)
S/PDIF 1 x optical S/PDIF Out connector
LAN Port

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

1 x RJ-45 port

Audio Jack 2 x audio jacks
Other Information
Wireless & Bluetooth

Intel® Wi-Fi 6E AX211

WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

BLUETOOTH 5.3

Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Operating System
Supported OS

Windows 11 64-bit

Windows 10 64-bit

Warranty
Warranty 03 Years

Description:


Gigabyte B660M AORUS ELITE DDR4 12th Gen Micro ATX Motherboard


Gigabyte B660M AORUS ELITE DDR4 12th Gen Motherboard. The motherboard could critically bottleneck the system's performance, especially when it falls short on both the power and thermal design. With a limited budget, it is even more important to spend it wisely. Introducing AORUS ELITE motherboards, featuring the best-in-class digital power design, the best-in-class full-metal heatsink, and the best-in-class DDR4 XMP compatibility. It only takes a small step up to be the best-in-class. Build Smart. Go ELITE.


Gigabyte B660M AORUS ELITE DDR4 12th Gen Motherboard. The model is B660M AORUS ELITE. The Intel® B660 AORUS Motherboard with 12*+1+1 Twin Hybrid Phases Digital VRM Design, Fully Covered Thermal Design, 2 x PCIe 4.0 M.2 with Thermal Guard, 2.5GbE LAN, WIFI 6E 802.11ax, RGB FUSION 2.0, Q-Flash Plus. The Motherboard Supports 12th Gen Intel® Core™ Series Processors. Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs. 12*+1+1 Twin Hybrid Digital VRM Design with 60A DrMOS. Shielded Memory Routing for Better Memory Overclocking. Fully Covered Thermal Design with High Coverage MOSFET Heatsinks. WIFI 6E 802.11ax 2T2R & BT5 with AORUS Antenna. Blazing Fast 2.5GbE LAN with Bandwidth Management. Dual Ultra-Fast NVMe PCIe 4.0* x4 M.2 with Thermal Guard. Rear and Front USB 3.2 Type-C® for Fast and Versatile Connections. Pre-installed IO Shield for easy and quick installation. RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips. Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card. Supported Operating System Windows 10 64-bit. Gigabyte B660M AORUS ELITE DDR4 12th Gen Motherboard comes with 03 years warranty.
