| Special Price | : | ৳27,600 |
| Regular Price(EMI) | : | ৳30,400 |
| Status | : | In Stock |
| Brand | : | Gigabyte |
| Product Code | : | B650M AORUS ELITE |
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।
| General Information | ||
| Model | B650M AORUS ELITE | |
| Brand | Gigabyte | |
| Supported Processor | support for: AMD Ryzen™ 7000 Series Processors | |
| Chipset | AMD B650 | |
| Socket | AM5 | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Memory Information | ||
| Memory Types | DDR5 | |
| Channel | Dual Channel | |
| Slot | 4 x DDR5 DIMM | |
| Supported Bus Speed | Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules | |
| Maximum Memory | up to 192 GB (48 GB single DIMM capacity) | |
| Graphics Information | ||
| Graphics | Integrated Graphics Processor: * 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. * 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. * Support native HDMI 2.1 TMDS compatible ports. |
|
| Expansion Slots | ||
| PCI | CPU: * 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: * 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
|
| Storage Information | ||
| M.2 | CPU: * 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU) * Actual support may vary by CPU. * 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) |
|
| SATA | 4 x SATA 6Gb/s connectors | |
| RAID | * RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices * RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| Connector Information | ||
| Internal Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x THB_U4 add-in card connector 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
|
| Port Information | ||
| USB Port | * 1 x USB Type-C® port, with USB 3.2 Gen 2 support * 2 x USB 3.2 Gen 2 Type-A ports (red) * 5 x USB 3.2 Gen 1 ports * 4 x USB 2.0/1.1 ports |
|
| HDMI Port | 1 x HDMI port | |
| Display Port | 1 x Display Port | |
| Optical S/PDIF | 1 x optical S/PDIF Out connector | |
| LAN Port | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port |
|
| Audio Jack | 2 x audio jacks | |
| Operating System | ||
| Supported OS | Support for Windows 11 64-bit Support for Windows 10 64-bit |
|
| Warranty | ||
| Warranty | 03 Years | |

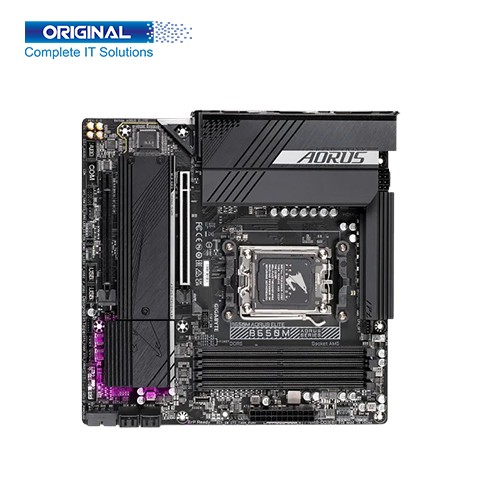

Gigabyte B650M AORUS ELITE AMD Micro ATX Motherboard. The Gigabyte B650M series provides customers with advanced features and the latest technologies. GIGABYTE motherboards are equipped with upgraded power solutions, the latest storage standards, and outstanding connectivity to enable optimized performance for gaming.
Gigabyte B650M AORUS ELITE AMD Micro ATX Motherboard. The model is B650M AORUS ELITE. The Motherboard support for: AMD Ryzen™ 7000 Series Processors. Chipset AMD B650. Socket AM5. BIOS 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. Micro ATX Form Factor; 24.4cm x 24.4cm. Memory Types 4 x DDR5 DIMM, Dual Channel. The Motherboard Supported Bus Speed for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules. Maximum Memory up to 192 GB (48 GB single DIMM capacity). Graphics Processor 1x Display Port, 1 x HDMI. Superfast Storage 1 x PCIe 5.0 x 4 and 1* PCIe 4.0 x 4 M.2 Connector. PCIe x 16 Slot & M.2 Connectors with Quick Release & Screwless Design. 4 x SATA 6Gb/s connectors. RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices & RAID 0, RAID 1, and RAID 10 support for SATA storage devices. USB Port 1 x USB Type-C® port, with USB 3.2 Gen 2 support, 2 x USB 3.2 Gen 2 Type-A ports (red), 5 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports. 1 x HDMI port. 1 x Display Port. 1 x optical S/PDIF Out connector. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) & 1 x RJ-45 port. 2 x audio jacks. Supported Operating System Windows 11 64-bit & Windows 10 64-bit. Gigabyte B650M AORUS ELITE AMD Micro ATX Motherboard with 03 years warranty.
