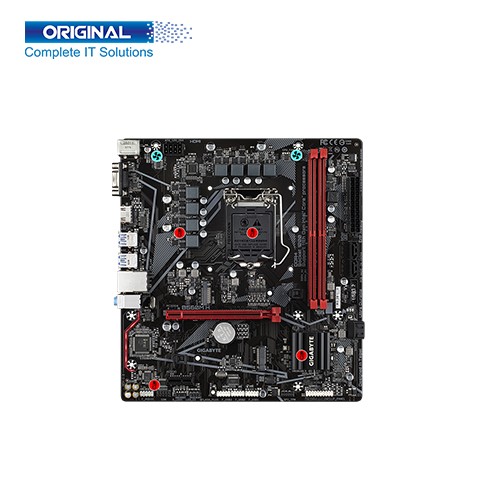

Gigabyte B560M H 10th and 11th Gen Micro ATX Motherboard

Description:

Gigabyte B560M H 10th and 11th Gen Micro ATX Motherboard

Gigabyte B560M H 10th and 11th Gen Micro ATX Motherboard is featured with Direct 6 + 2 Phases Digital VRM Design, DDR5 XTREME MEMORY Design, It has Shielded Memory Routing for Better Memory Overclocking. It comes with a Fully Covered Thermal Design with High Coverage MOSFET Heatsinks. It is powered by an Exclusive 8118 Gaming LAN with Bandwidth Management. It supports Dual Ultra-Fast NVMe PCIe. It's supported with an LGA1200 socket Support for 11th Generation Intel Core i9,i5, and i7 processors. It comes with Dual ChannelNon-ECC Unbuffered DDR5, 4 DIMMs. Buy Gigabyte B560M H 10th and 11th Gen Micro ATX Motherboard at the best price in BD.

For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.

Gigabyte B560M H 10th and 11th Gen Micro ATX Motherboard Supported Processor 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors, Chipset Intel® B560 Express Chipset, Socket LGA1200,BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0,Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm. The Memory Types DDR4 Channel Dual channel, Slot 4 x DIMM, Supported Bus Speed 11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules,10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory, Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.), Maximum Memory 64 GB (32 GB single DIMM capacity). This motherboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz,1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz, Support for HDMI 2.0 version and HDCP 2.3.,(Graphics specifications may vary depending on CPU support.), PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16),(The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note),1 x PCI Express x1 slot (PCIEX1),(The PCIEX1 slot conforms to PCI Express 3.0 standard.), M.2 2 x M.2 Socket 3 connectors, SATA 4 x SATA 6Gb/s connectors. The Internal Connectors 1 x 24-pin ATX main power connector,1 x 8-pin ATX 12V power connector,1 x CPU fan header,1 x system fan header 1 x addressable LED strip header,1 x RGB LED strip header,2 x M.2 Socket 3 connectors,4 x SATA 6Gb/s connectors,1 x front panel header,1 x front panel audio header,1 x USB 3.2 Gen 1 header,3 x USB 2.0/1.1 headers,1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only),1 x serial port header,1 x Clear CMOS jumper,1 x Q-Flash Plus button, USB Port 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header), Chipset+USB 2.0 Hub:8 x USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers),LAN Port Realtek® GbE LAN chip (1 Gbit/100 Mbit) Audio Port Realtek® Audio CODE, high Definition Audio,2/4/5.1/7.1-channe * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. Q-Flash Plus Button 1 x Q-Flash Plus button, Clear CMOS Button 1 x Clear CMOS jumper. The Supported OS Support for Windows 10 64-bit. Gigabyte B560M H 10th and 11th Gen Micro ATX Motherboard 03 years Warranty.
