| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Gigabyte |
| Product Code | : | B560M DS3H |
| General Information | ||
| Model | Gigabyte B560M DS3H |
|
| Supported Processor | * 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors * 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors |
|
| Chipset | Intel® B560 Express Chipset | |
| Socket | LGA1200 | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Memory Information | ||
| Memory Types | DDR4 |
|
| Channel | Dual channel | |
| Slot | 4 x DDR4 DIMM sockets | |
| Supported Bus Speed | 11th Gen: 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz, 10th Gen: 2933/2666/2400/2133 MHz | |
| Maximum Memory | 128GB | |
| Graphics Information | ||
| Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots |
|
| Storage Information | ||
| M.2 | 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB) |
|
| SATA | 6 x SATA 6Gb/s connectors | |
| Connector Information | ||
| Internal Connectors | * 1 x 24-pin ATX main power connector * 1 x 8-pin ATX 12V power connector * 1 x CPU fan header * 3 x system fan headers * 1 x addressable LED strip header * 1 x RGB LED strip header * 6 x SATA 6Gb/s connectors * 2 x M.2 Socket 3 connectors * 1 x front panel header * 1 x front panel audio header * 1 x USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers * 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) * 1 x serial port header * 1 x parallel port header * 1 x Clear CMOS jumper * 1 x Q-Flash Plus button |
|

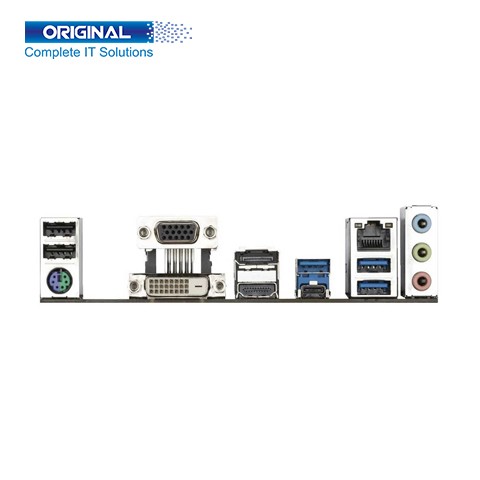

| Port Information | ||
| PS/2 Port | 1 x PS/2 keyboard/mouse port |
|
| USB Port | * 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support * 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) * 4 x USB 2.0/1.1 ports available through the internal USB headers *2 x USB 2.0/1.1 ports on the back panel |
|
| HDMI Port | 1 x HDMI port | |
| DVI-D Port | 1 x DVI-D port | |
| D-Sub Port | 1 x D-Sub port | |
| LAN Port | Realtek® GbE LAN chip (1000/100 Mbit) | |
| Audio Port | * Realtek® Audio CODEC * High Definition Audio * 2/4/5.1/7.1-channel |
|
| Display Port | 1 x DisplayPort | |
| Operating System | ||
| Supported OS | Support for Windows 10 64-bit |
|
| Warranty | ||
| Warranty | 03 Years Warranty |
|
Gigabyte B560M DS3H Intel Micro ATX Motherboard comes with Intel Core i5, i7, i9 Processors with 11th Generation also Intel Core i3, i5, i7, i9 Pentium/Celeron Processors with 10th Generation, Intel Celeron G5xx5 family. Has Intel H560 Express Chipset, LGA1200 Socket, Bios is 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 and 24.4cm x 24.4cm Micro ATX Form Factor. This Gigabyte B560M DS3H Motherboard Maximum 128 GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed 11th Generation Intel Core i9/i7/i5 processor Support for DDR4 11th Gen: 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz, 10th Gen: 2933/2666/2400/2133 MHz. Buy Gigabyte B560M DS3H Intel Micro ATX Motherboard at the best price in BD.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
This Gigabyte B560M DS3H Motherboard comes with standard Graphics such as 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz, 1 x HDMI port, Support for HDMI 4096x2160@30 Hz, Expansion PCI Slots is 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots, 6 x SATA 6 GB/s connectors and 1. 1 x M.2 connector also various Internal Connectors such as 4 x 24-pin ATX main power connector, 1 x CPU fan header, 1 x front panel audio header, etc. This Gigabyte B560M DS3H Motherboard has 5 x USB 3.2 Gen 1 ports, 6 x USB 2.0/1.1 ports, 1 x HDMI port, 1 x D-Sub port, Realtek GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit), and High Definition Audio 6 x audio jacks. This Gigabyte B560M DS3H Motherboard Support for Windows 10 64-bit. You can enjoy 03 Years Warranty. Buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
