| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Gigabyte |
| Product Code | : | B560M AORUS PRO AX |
| General Information | ||
| Model | Gigabyte B560M AORUS PRO AX |
|
| Supported Processor | 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors L3 cache varies with CPU |
|
| Chipset | Intel® B560 Express Chipset | |
| Socket | LGA1200 | |
| BIOS | * 1 x 256 Mbit flash * Use of licensed AMI UEFI BIOS * PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Memory Information | ||
| Memory Types | DDR4 |
|
| Channel | Dual channel | |
| Slot | 4 x DDR4 DIMM sockets | |
| Supported Bus Speed | 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz | |
| Maximum Memory | 128 GB (32 GB single DIMM capacity) | |
| Graphics Information | ||
| Graphics | * 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
|
| Expansion Slots | ||
| PCI | * 1 x PCI Express x16 slot, running at x16 (PCIEX16) * 1 x PCI Express x16 slot, running at x4 (PCIEX4) * 1 x PCI Express x1 slot |
|
| Storage Information | ||
| M.2 | * 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)* * 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) |
|
| SATA | 6 x SATA 6Gb/s connectors | |
| Connector Information | ||
| Internal Connectors | * 1 x 24-pin ATX main power connector * 1 x 8-pin ATX 12V power connector * 1 x CPU fan header * 1 x water cooling CPU fan header * 3 x system fan headers * 2 x addressable LED strip headers * 2 x RGB LED strip headers * 6 x SATA 6Gb/s connectors * 2 x M.2 Socket 3 connectors * 1 x front panel header * 1 x front panel audio header * 1 x USB Type-C® header, with USB 3.2 Gen 1 support * 1 x USB 3.2 Gen 1 header * 2 x USB 2.0/1.1 headers * 2 x Thunderbolt™ add-in card connectors * 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) * 1 x serial port header * 1 x Clear CMOS jumper * 1 x Q-Flash Plus button |
|
| Port Information | ||
| PS/2 Port | 1 x PS/2 keyboard/mouse port |
|

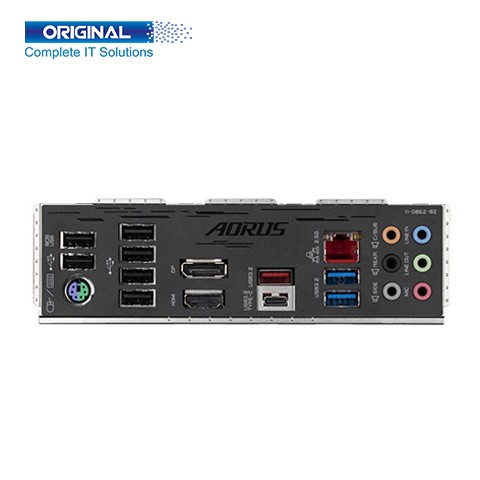

| USB Port | * 1 x USB Type-C® port on the back panel, with USB 3.2 Gen2x2 support * 1 x USB 3.2 Gen2 Type-A ports (red) on the back panel * 2 x USB 3.2 Gen1 ports on the back panel * 2 x USB 2.0/1.1 ports on the back panel * 1 x USB Type-C® port with USB 3.2 Gen1 support, available through the internal USB header * 2 x USB 3.2 Gen1 ports available through the internal USB header * 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
| HDMI Port | 1 x HDMI port | |
| LAN Port | Intel®2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) | |
| Audio Port | * Realtek® Audio codec * High Definition Audio * 2/4/5.1/7.1-channel |
|
| Antenna | 2 x SMA antenna connectors (2T2R) | |
| Display Port | 1 x DisplayPort | |
| Operating System | ||
| Supported OS | Support for Windows 10 64-bit |
|
| Warranty | ||
| Warranty | 03 Years Warranty |
|
Gigabyte B560M AORUS PRO AX Intel Micro ATX Motherboard comes with Intel Core i5, i7, i9 Processors with 11th Generation also Intel Core i3, i5, i7, i9 Pentium/Celeron Processors with 10th Generation, Intel Celeron G5xx5 family, L3 cache varies with CPU. Has Intel B560 Express Chipset, LGA1200 Socket, Bios is 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 and 24.4cm x 24.4cm Micro ATX Form Factor. This Gigabyte B560M AORUS PRO AX Motherboard Maximum 128 GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz. Buy Gigabyte B560M AORUS PRO AX Intel Micro ATX Motherboard at the best price in BD.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
Gigabyte B560M AORUS PRO AX Intel Micro ATX Motherboard comes with standard Graphics such as 1 x HDMI port Support for HDMI 4096x2160@60 Hz, 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz, Expansion PCI Slots is 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots, 6 x SATA 6 GB/s connectors and 1. x M.2 connector also various Internal Connectors such as 4 x 24-pin ATX main power connector, 1 x CPU fan header, 1 x front panel audio header, etc. This Gigabyte B560M AORUS PRO AX Motherboard has 5 x USB 3.2 Gen 1 ports, 6 x USB 2.0/1.1 ports, 1 x HDMI port, 1 x D-Sub port, Realtek GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit), and High Definition Audio 5 x audio jacks. The wireless facility has BLUETOOTH 5.1, Intel Wi-Fi 6 AX200, Antenna 2 x SMA antenna connectors (2T2R), and Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate. This Gigabyte B560M AORUS PRO AX Motherboard Support for Windows 10 64-bit. You can enjoy 03 Years Warranty. Buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
