| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Gigabyte |

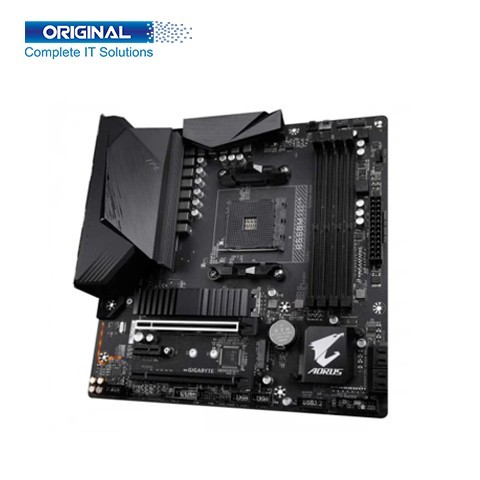

| Product Code | : | B550M Aorus Pro |
| General Information | ||
| Model | B550M AORUS PRO | |
| Supported Processor | AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors | |
| Chipset | AMD B550 | |
| Socket | AMD Socket AM4 | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual-channel | |
| Slot | 4 x DDR4 DIMM | |
| Supported Bus Speed | Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz | |
| Maximum Memory | 128 GB | |
| Graphics Information | ||
| Graphics | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. Maximum shared memory of 16 GB |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX4), integrated with the Chipset: Supporting PCIe 3.0 x4 mode 1 x PCI Express x1 slot (PCIEX1), integrated into the Chipset: Supporting PCIe 3.0 x1 mode |
|
| Storage Information | ||
| M.2 | 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs | |
| SATA | 4 x SATA 6Gb/s connectors | |
| RAID | Support for RAID 0, RAID 1, and RAID 10 | |
| Connector Information | ||
| Internal Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Thunderbolt™ add-in card connector 1 x Clear CMOS jumper |
|
| Port Information | ||
| USB Port | 4 x USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C™ port, with USB 3.2 Gen 2 support | |
| HDMI Port | 1 x HDMI port | |
| LAN Port | 1 x RJ-45 port | |
| Audio Port | 5 x audio jacks | |
| Operating System | ||
| Supported OS | Support for Windows 10 64-bit | |
| Warranty | ||
| Warranty | 03 Years Warranty | |
This Gigabyte B550M Aorus Pro AMD 3rd Gen Motherboard comes with AMD Socket AM4, AMD Socket AM4, support for AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors, Chipset AMD B550, AM4 Socket, Bios is 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 and 24.4cm x 24.4cm ATX Form Factor. Gigabyte B550M Aorus Pro Motherboard Maximum 128 GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz. Buy Gigabyte B550M Aorus Pro AMD 3rd Gen Motherboard at the best price in BD.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
Gigabyte B550M Aorus Pro Micro ATX Motherboard comes with standard Graphics such as 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, The DVI-D port does not support D-Sub connection by the adapter, Support for HDMI 1.4 version and HDCP 2.3 with Maximum shared memory of 16 GB. B550M Aorus Pro Gigabyte Motherboard Expansion PCI Slots is 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots, 4 x SATA 6 GB/s connectors, and 1. 1 x M.2 connector also various Internal Connectors such as 4 x 24-pin ATX main power connector, 1 x CPU fan header, 1 x front panel audio header, etc. B550M Aorus Pro Micro ATX Gigabyte Motherboard has 5 x USB 3.2 Gen 1 ports, 6 x USB 2.0/1.1 ports, 1 x HDMI port, 1 x D-Sub port, Realtek GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit), and High Definition Audio 5 x audio jacks. This Gigabyte B550M Aorus Pro Motherboard Support for Windows 64-bit. You can enjoy 03 Years Warranty.
