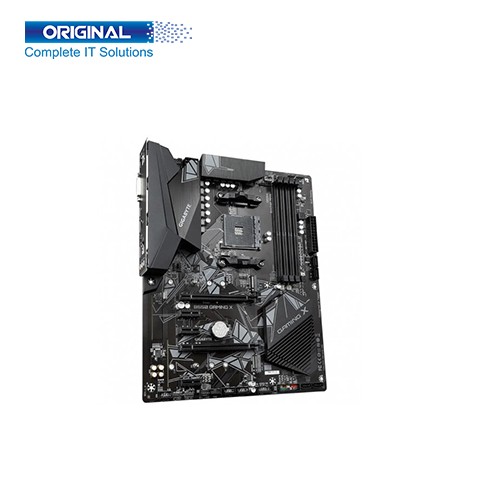

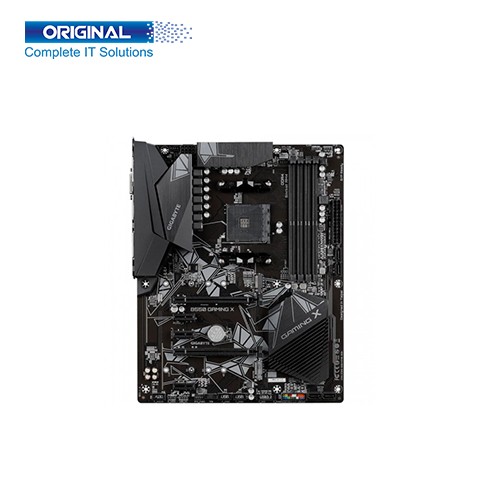

Gigabyte B550 Gaming X AM4 DDR4 3rd Gen ATX Motherboard

Special Price :           ৳15,800
Regular Price(EMI) :           ৳16,500
Status :           In Stock
Brand :           Gigabyte
Product Code :           B550 Gaming X AM4

Short Details:

  • • Model: Gigabyte B550 Gaming X AM4
  • • Chipset: AMD B550
  • • Socket: AM4
  • • Memory Types: DDR4

See More Details

৳15,800

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model Gigabyte B550 Gaming X AM4
Brand Gigabyte
Supported Processor AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
Chipset AMD B550
Socket AM4
BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor ATX Form Factor; 30.5cm x 24.4cm
Memory Information
Memory Types DDR4
Channel Dual channel
Slot 4 x DDR4 DIMM sockets
Supported Bus Speed AMD Ryzen 5000 series processors/ 3rd Generation AMD Ryzen: Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory Up to 128GB (32 GB single DIMM capacity)
Graphics Information
Graphics

Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors:

1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 @60 Hz

* The DVI-D port does not support D-Sub connection by adapter.

1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Expansion Slots
PCI

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

* AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode

* AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

* 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:

Supporting PCIe 3.0 x2 mode

* 3 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2, PCIEX1_3), integrated in the Chipset:

Supporting PCIe 3.0 x1 mode

Storage Information
M.2 2 x M.2 Socket 3 connectors
SATA 4 x SATA 6Gb/s connectors
RAID Support for RAID 0, RAID 1, and RAID 10
Connector Information
Internal Connectors

* 1 x 24-pin ATX main power connector

* 1 x 8-pin ATX 12V power connector

* 1 x CPU fan header

* 1 x water cooling CPU fan header

* 3 x system fan headers

* 2 x addressable LED strip headers

* 2 x RGB LED strip headers

* 1 x CPU cooler LED strip/RGB LED strip header

* 2 x M.2 Socket 3 connectors

* 4 x SATA 6Gb/s connectors

* 1 x front panel header

* 1 x front panel audio header

* 1 x USB 3.2 Gen 1 header

* 2 x USB 2.0/1.1 headers

* 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

* 1 x Clear CMOS jumper

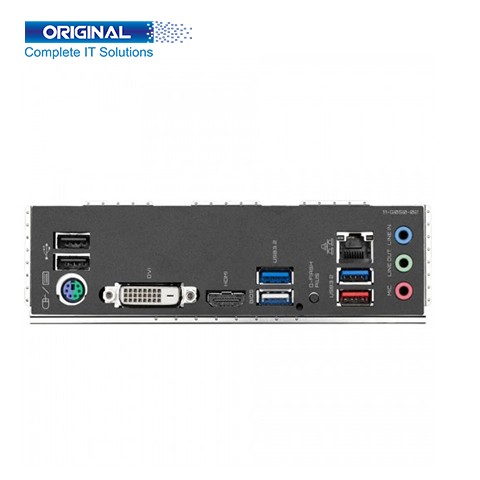

Port Information
USB Port

* 2 x USB 2.0/1.1 ports

* 1 x PS/2 keyboard/mouse port

* 1 x DVI-D port

* 1 x HDMI port

* 3 x USB 3.2 Gen 1 ports

* 1 x USB 3.2 Gen 2 Type-A port (red)

* 1 x Q-Flash Plus button

* 1 x RJ-45 port

* 3 x audio jacks

LAN Port Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
Audio Port

* Realtek® ALC887 codec

* High Definition Audio

* 2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

Q-Flash Plus Button 1 x Q-Flash Plus button
Clear CMOS Button 1 x Clear CMOS jumper
Operating System
Supported OS Support for Windows 10 64-bit
Warranty
Warranty 03 Years

Descripton:


Gigabyte B550 Gaming X AM4 DDR4 3rd Gen ATX Motherboard


Gigabyte B550 Gaming X AM4 DDR4 3rd Gen ATX Motherboard comes with NVMe PCIe4.0/3.0 x4 and PCIe3.0 x4M. 2 connectors onboard, GIGABYTE Motherboards bring druggies to witness NVMe mode or SATA mode connectivity forM. 2 SSD bias. This motherboard is delivering up to 64 Gb/ s data transfer speed, the binary M. 2 connectors design provides an ideal storehouse result while also supporting RAID modes. The used Realtek 8118 LAN is a high-performance and friendly network chip for gaming players with automatic bandwidth allocation, which ensures the loftiest network precedence of the game or operation. This motherboard also provides druggies with the most comprehensive features and the fastest and smoothest Internet experience. Buy Gigabyte B550 Gaming X AM4 DDR4 3rd Gen ATX Motherboard at the best price in BD.


For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.


Gigabyte B550 Gaming X AM4 DDR4 3rd Gen ATX Motherboard Supported Processor AMD Socket AM4, support for AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors, Chipset AMD B550, Socket AM4, BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, Form Factor ATX Form Factor; 30.5cm x 24.4cm. This motherboard Memory Types DDR4 Channel Dual channel, Slot 4 x DDR4 DIMM sockets, Supported Bus Speed AMD Ryzen 5000 series processors/ 3rd Generation AMD Ryzen: Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules, Maximum Memory Up to 128GB (32 GB single DIMM capacity). The Graphics Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors:1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 @60 H, The DVI-D port does not support D-Sub connection by adapter.1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz, Support for HDMI 2.1 version, HDCP 2.3, and HDR. The PCI 1 x PCI Express x16 slot (PCIEX16), integrated with the CPU: AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode, AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode, For optimum performance if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.,1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: Supporting PCIe 3.0 x2 mode 3 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2, PCIEX1_3), integrated in the Chipset: Supporting PCIe 3.0 x1 mode.M.2 2 x M.2 Socket 3 connectors SATA 4 x SATA 6Gb/s connectors, RAID Support for RAID 0, RAID 1, and RAID 10.Internal Connectors 1 x 24-pin ATX main power connector,1 x 8-pin ATX 12V power connector,1 x CPU fan header,1 x water cooling CPU fan header 3 x system fan headers,2 x addressable LED strip headers,2 x RGB LED strip headers,1 x CPU cooler LED strip/RGB LED strip header,2 x M.2 Socket 3 connectors,4 x SATA 6Gb/s connectors,1 x front panel header,1 x front panel audio header,1 x USB 3.2 Gen 1 header,2 x USB 2.0/1.1 headers,1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only),1 x Clear CMOS jumper. The USB Port 2 x USB 2.0/1.1 ports,1 x PS/2 keyboard/mouse port,1 x DVI-D port,1 x HDMI port,3 x USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 2 Type-A port (red),1 x Q-Flash Plus button,1 x RJ-45 port 3 x audio jacks, LAN Port Realtek® GbE LAN chip (1000 Mbit/100 Mbit) Audio Port, Realtek® ALC887 codec, High Definition Audio,2/4/5.1/7.1-channel, To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. Q-Flash Plus Button 1 x Q-Flash Plus button. Clear CMOS Button 1 x Clear CMOS jumper. The Supported OS Support for Windows 10 64-bit.gigabyte B550 Gaming X AM4 DDR4 3rd Gen ATX Motherboard 03 Years Warranty.
