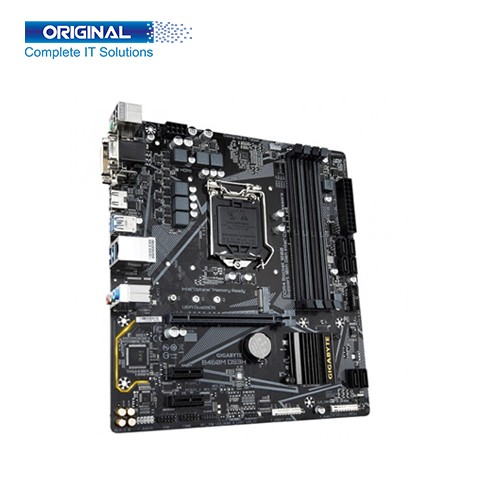

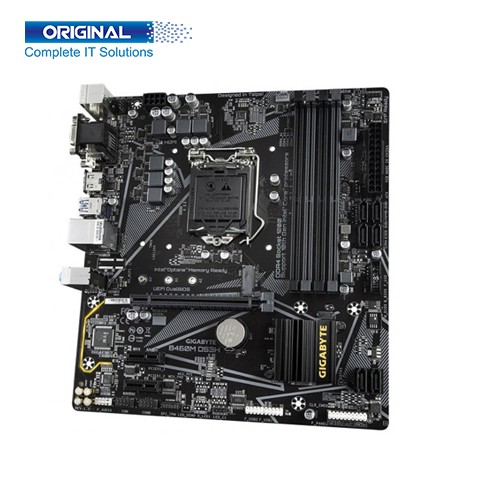

    Gigabyte B460M DS3H 10th Gen Micro ATX Motherboard

    Special Price :           ৳8,500
    Regular Price(EMI) :           ৳9,800
    Status :           In Stock
    Brand :           Gigabyte
    Product Code :           B460M DS3H

    Short Details:

    • • Model: B460M DS3H
    • • Chipset: Intel® B460 Express Chipset
    • • Socket: LGA1200
    • • Form Factor Micro ATX

    See More Details

    ৳8,500
    EMI Offer(EMI for 6 to 24 Months)
    Quantity
    General Information
    Model B460M DS3H
    Brand Gigabyte
    Supported Processor Support for 10th Generation Intel Core i9 /i7 /i5 /i3 /Pentium® /Intel® Celeron® processors
    Chipset Intel® B460 Express Chipset
    Socket LGA1200
    BIOS

    2 x 128 Mbit flash

    Use of licensed AMI UEFI BIOS

    Support for DualBIOS™

    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm
    Memory Information
    Memory Type DDR4
    Channel Dual-channel
    Slot 4 x DDR4 DIMM sockets
    Supported Bus Speed

    * Intel® Core™ i9/i7 processors:

    * Support for DDR4 2933/2666/2400/2133 MHz

    * Intel® Core™ i5/i3/Pentium®/Celeron® processors:

    * Support for DDR4 2666/2400/2133 MHz

    Maximum Memory UP to 128 GB
    Graphics Information
    Graphics

    Integrated Graphics Processor-Intel® HD Graphics support:

    1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

    1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

    * The DVI-D port does not support D-Sub connection by adapter.

    1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

    * Support for HDMI 1.4 version and HDCP 2.3.

    Expansion Slots
    PCI

    1 x PCI Express x16 slot, running at x16 (PCIEX16)

    2 x PCI Express x1 slots

    Storage Information
    M.2 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
    SATA 6 x SATA 6Gb/s connectors
    RAID Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
    Connector Information
    Internal Connectors

    * 1 x 24-pin ATX main power connector

    * 1 x 8-pin ATX 12V power connector

    * 1 x CPU fan header

    * 2 x system fan headers

    * 2 x RGB LED strip headers

    * 6 x SATA 6Gb/s connectors

    * 1 x M.2 Socket 3 connector

    * 1 x front panel header

    * 1 x front panel audio header

    * 1 x USB 3.2 Gen 1 header

    * 2 x USB 2.0/1.1 headers

    * 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

    * 2 x serial port headers

    * 1 x Clear CMOS jumper

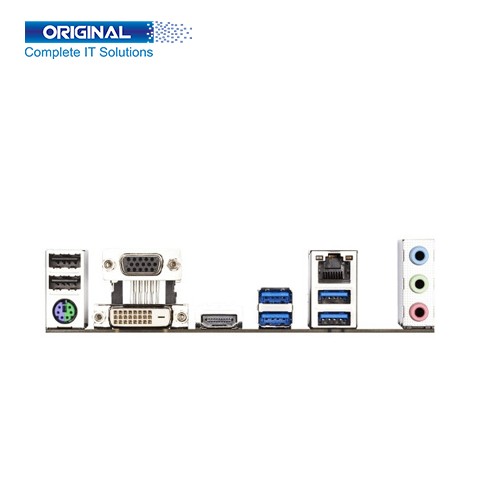

    Port Information
    PS/2 Port 1 x PS/2 keyboard/mouse port
    USB Port

    4 x USB 3.2 Gen 1 ports

    2 x USB 2.0/1.1 ports

    HDMI Port 1 x HDMI port
    DVI-D port 1 x DVI-D port
    D-Sub port 1 x D-Sub port
    LAN Port

    1 x RJ-45 port

    Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

    Audio Port 3 x audio jacks
    Operating System
    Supported OS Windows 10 64-bit
    Warranty
    Warranty 3 Years Warranty

    Descripton:


    Gigabyte B460M DS3H 10th Gen Micro ATX Motherboard


    The Gigabyte B460M DS3H 10th Gen Micro ATX Motherboard with the B460M AORUS gaming motherboard. Its delivery and dominant thermal design, glorified with the complete memory overclocking technology to crown your PC with the best Alder Lake's performance in all its gaming glory. It ensures maximum Turbo Boost and overclocking performance of Intel's new generation CPU.


    Gigabyte B460M DS3H 10th Gen Micro ATX Motherboard Model is B460M AORUS ELITE AX. The Brand is Gigabyte. The Motherboard Supported Processor 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors. Intel® Z690 Express Chipset. LGA1200 socket. BIOS 2 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, Support for DualBIOS™, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. Memory Type DDR4, Channel Dual channel, Slot 4 x DDR DIMM, Supported Bus Speed Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz, Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz. Maximum Memory up to 128 GB. Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz, 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz, The DVI-D port does not support D-Sub connection by adapter, 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz, Support for HDMI 1.4 version and HDCP 2.3. PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16), 2 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.). M.2 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU), 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support). SATA 6 x SATA 6Gb/s connectors. RAID Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10. Internal Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 2 x RGB LED strip headers, 6 x SATA 6Gb/s connectors, 1 x M.2 Socket 3 connector, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), 2 x serial port headers, 1 x Clear CMOS jumper. 1 x PS/2 keyboard/mouse port 1 x D-Sub port, 1 x DVI-D port, 1 x HDMI port, 4 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks. Support for Windows 10 64-bit.

    Gigabyte B460M DS3H 10th Gen Micro ATX Motherboard has Three years warranty.
