| Special Price | : | ā§ŗ10,400 |
| Regular Price(EMI) | : | ā§ŗ11,500 |
| Status | : | In Stock |
| Brand | : | Gigabyte |
| Product Code | : | B450M S2H |
āĻ āĻ°ā§āĻĄāĻžāĻ° āĻāĻ°āĻžāĻ° āĻĒā§āĻ°ā§āĻŦā§ āĻāĻžāĻ¸ā§āĻāĻŽāĻžāĻ° āĻā§ā§āĻžāĻ° āĻĨā§āĻā§ āĻĒāĻŖā§āĻ¯ā§āĻ° āĻ¸ā§āĻāĻ āĻ¸āĻŽā§āĻĒāĻ°ā§āĻā§ āĻā§āĻ¨ā§ āĻ¨ā§ā§āĻžāĻ° āĻāĻ¨ā§āĻ¯ āĻ āĻ¨ā§āĻ°ā§āĻ§ āĻāĻ°āĻž āĻ¯āĻžāĻā§āĻā§āĨ¤ āĻĒā§āĻ°āĻ¯ā§āĻā§āĻ¤āĻŋ āĻĒāĻŖā§āĻ¯ā§āĻ° āĻŽā§āĻ˛ā§āĻ¯ āĻ āĻ¸ā§āĻĨāĻŋāĻ¤āĻŋāĻļā§āĻ˛ āĻšāĻā§āĻžāĻ° āĻāĻžāĻ°āĻ¨ā§ āĻ¯ā§āĻā§āĻ¨ā§ āĻŽā§āĻšā§āĻ°ā§āĻ¤ā§ āĻŽā§āĻ˛ā§āĻ¯ āĻĒāĻ°āĻŋāĻŦāĻ°ā§āĻ¤āĻ¨ āĻšāĻ¤ā§ āĻĒāĻžāĻ°ā§āĨ¤
| General Information | ||

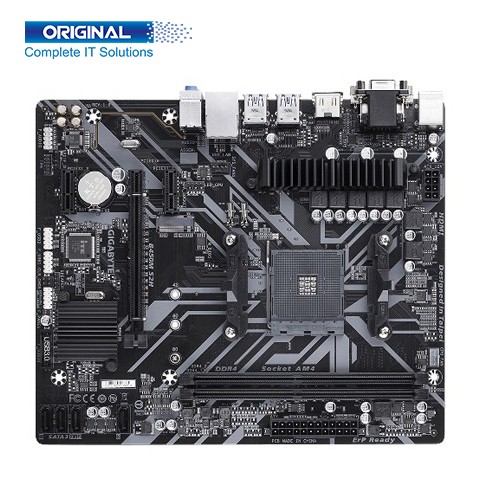

| Model | Gigabyte B450M S2H | |
| Supported Processor | AM4 Socket: AMD Ryzen 1st/2nd/3rd Generation with Radeon Vega Graphics processors | |
| Chipset | AMD B450 | |
| Socket | AM4 | |
| BIOS | * 1 x 128 Mbit flash * Use of licensed AMI UEFI BIOS * PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 20.5cm | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual channel | |
| Slot | 2 x DDR4 DIMM | |
| Supported Bus Speed | 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz | |
| Maximum Memory | 64 GB | |
| Graphics Information | ||
| Graphics | * 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz * 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. * 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note) * Support for HDMI 2.0 version and HDCP 2.2.(Note) |
|
| Expansion Slots | ||
| PCI | * 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) * 2 x PCI Express x1 slots (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) |
|
| Storage Information | ||
| M.2 | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support) |
|
| SATA | 4 x SATA 6Gb/s connectors | |
| RAID | Support for RAID 0, RAID 1, and RAID 10 | |
| Connector Information | ||
| Internal Connectors | * 1 x 24-pin ATX main power connector * 1 x 8-pin ATX 12V power connector * 1 x CPU fan header * 1 x system fan header * 1 x M.2 Socket 3 connector * 4 x SATA 6Gb/s connectors * 1 x front panel header * 1 x front panel audio header * 1 x S/PDIF Out header * 1 x CPU cooler LED strip/RGB LED strip header * 1 x USB 3.1 Gen 1 header * 2 x USB 2.0/1.1 headers * 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) * 1 x speaker header * 1 x Clear CMOS jumper * 1 x chassis intrusion header |
|

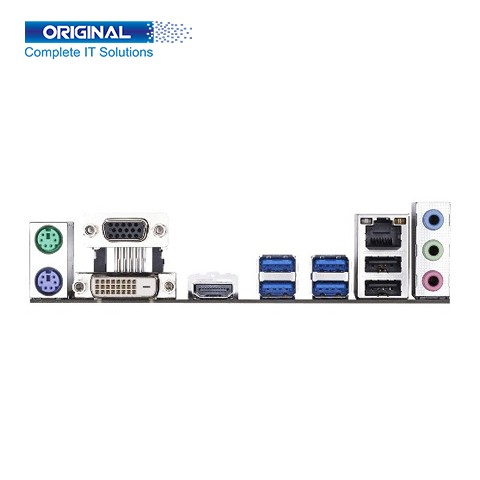

| Port Information | ||
| PS/2 Port | * 1 x PS/2 keyboard port * 1 x PS/2 mouse port |
|
| USB Port | * 4 x USB 3.1 Gen 1 ports * 2 x USB 2.0/1.1 ports |
|
| HDMI Port | 1 x HDMI port | |
| DVI-D Port | 1 x DVI-D port | |
| D-Sub port | 1 x D-Sub port | |
| LAN Port | * RealtekÂŽ GbE LAN chip (10/100/1000 Mbit) * 1 x RJ-45 port |
|
| Audio Port | * RealtekÂŽ Audio CODEC * 3 x audio jacks |
|
| Operating System | ||
| Supported OS | Support for Windows 7,10 64-bit | |
| Warranty | ||
| Warranty | 03 Year Warranty | |
This Gigabyte B450M S2H Motherboard comes with AMD Socket AM4, support for 2nd/3rd Generation AMD Ryzen processors with Radeon Vega Graphics processors, Chipset AMD B450, AM4 Socket, Bios is 1 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 and 24.4cm x 20.5cm ATX Form Factor. B450M S2H Gigabyte Motherboard Maximum 64 GB DDR4 Dual Channel Memory, 2 x DDR4 DIMM sockets, Supported Bus Speed 3600(O.C.)/ 3466(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz. Buy Gigabyte B450M S2H AMD AM4 Micro ATX Motherboard at the best price in BD.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
Gigabyte B450M S2H AMD AM4 Micro ATX Motherboard comes with standard Graphics such as a 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz, supporting a maximum resolution of 1920x1200@60 Hz, This DVI-D port does not support D-Sub connection by the adapter, The Support for HDMI 1.4 version and HDCP 2.2. Gigabyte B450M S2H Motherboard Expansion PCI slot is 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots, 4 x SATA 6 GB/s connectors, and 1. 1 x M.2 connector also various Internal Connectors such as 4 x 24-pin ATX main power connector, 1 x CPU fan header, 1 x front panel audio header, etc. This Motherboard has 5 x USB 3.2 Gen 1 ports, 6 x USB 2.0/1.1 ports, 1 x HDMI port, 1 x D-Sub port, Realtek GbE LAN chip (10/100/1000 Mbit), and High Definition Audio 3 x audio jacks. This Gigabyte B450M S2H Motherboard Support for Windows 7,10 64-bit. You can enjoy 03 Years Warranty. Buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
