| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Gigabyte |
| Product Code | : | B450M |
| General Information | ||
| Model | B450M H | |
| Supported Processor | AMD Socket AM4, support for: AMD Ryzen™ 5000 series/ 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 1st Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ 1st Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors | |
| Chipset | AMD B450 | |
| Socket | AM4 | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 20.5cm | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual channel | |
| Slot | 2 x DDR4 DIMM | |
| Supported Bus Speed | r DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz | |
| Maximum Memory | 64 GB | |
| Graphics Information | ||
| Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note) * Support for HDMI 2.0 version and HDCP 2.2.(Note) Maximum shared memory of 16 GB |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) |
|
| Storage Information | ||
| M.2 | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support) | |
| SATA | 4 x SATA 6Gb/s connectors | |
| RAID | Support for RAID 0, RAID 1, and RAID 10 | |
| Connector Information | ||
| Internal Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header Back Panel Connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
|
| Port Information | ||
| USB Port | 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel | |
| LAN Port | Realtek® GbE LAN chip (10/100/1000 Mbit) | |
| Audio Port | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out | |
| Q-Flash Plus Button | Support for Q-Flash | |
| Operating System | ||
| Supported OS | Support for Windows 10 64-bit Support for Windows 7 64-bit * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7. | |
| Warranty | ||
| Warranty | 03 Years Warranty | |

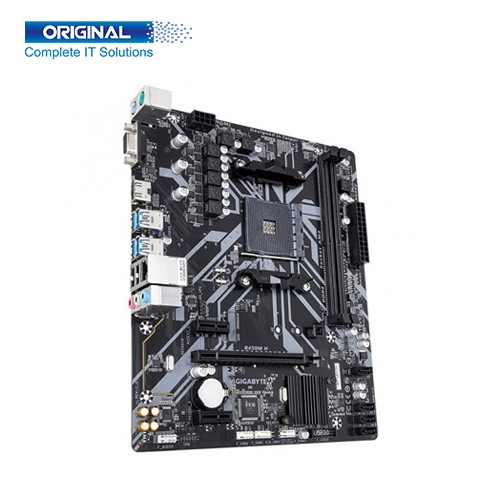

This Gigabyte B450M H Motherboard comes with AMD Socket AM4, AMD Ryzen 5000 series 3rd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen processors, 1st Generation AMD Ryzen processors, 2nd Generation AMD Ryzen with Radeon Vega Graphics Processors. B450M H Gigabyte Motherboard Has AMD B450 Express Chipset, Bios is 1 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 and 24.4cm x 20.5cm Micro ATX Form Factor. Gigabyte B450M H Motherboard Maximum 128 GB DDR4 Dual Channel Memory, 4 x DDR4 DIMM sockets, Supported Bus Speed 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz. Buy Gigabyte B450M H Ultra Durable Micro ATX Motherboard at the best price in BD.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
Gigabyte B450M H Motherboard comes with standard Graphics such as a 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz. The DVI-D port does not support D-Sub connection by the adapter, 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, HDCP 2.2, Maximum shared memory of 16 GB, Support for HDMI 2.0 version. B450M H Gigabyte Motherboard Expansion PCI slot is 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots, 4 x SATA 6 GB/s connectors, and 1. x M.2 connector also various Internal Connectors such as 4 x 24-pin ATX main power connector, 1 x CPU fan header, 1 x front panel audio header, etc. This Gigabyte B450M H Motherboard has 5 x USB 3.2 Gen 1 ports, 6 x USB 2.0/1.1 ports, 1 x HDMI port, 1 x D-Sub port, Realtek GbE LAN chip (10/100/1000 Mbit), and High Definition Audio 3 x audio jacks. This Gigabyte B450M H Motherboard Support for Windows 10 64-bit. You can enjoy a 03 Years Warranty. Buy Motherboard from Original Store Ltd and get online delivery at any corner of Bangladesh.
