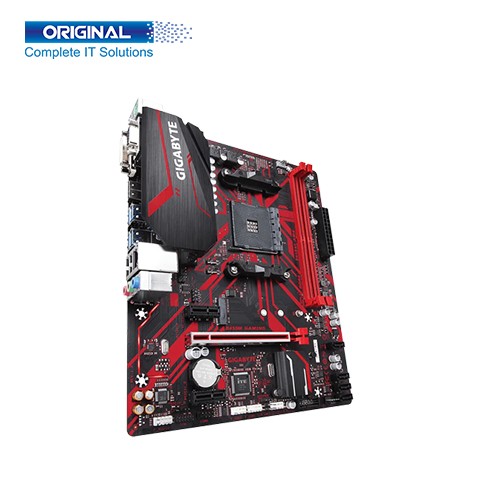

Gigabyte B450M GAMING AMD Micro ATX Motherboard

Special Price :           ৳10,400
Regular Price(EMI) :           ৳11,300
Status :           In Stock
Brand :           Gigabyte
Product Code :           B450M GAMING

Short Details:

  • • Model: B450M GAMING
  • • Chipset: AMD B450
  • • Socket: AM4
  • • Form Factor: Micro ATX

See More Details

৳10,400

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model B450M GAMING
Brand Gigabyte
Supported Processor

Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors

Chipset AMD B450
Socket AM4
BIOS

1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor Micro ATX Form Factor; 24.4cm x 20.5cm
Memory Information
Memory Types DDR4
Channel Dual Channel
Slot 2 x DIMM
Supported Bus Speed

Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules

Maximum Memory up to 64 GB
Graphics Information
Graphics

Integrated Graphics Processor:

* 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

* 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

* The DVI-D port does not support D-Sub connection by adapter.

* 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.0 version and HDCP 2.2.

* Actual support may vary by CPU.

* Maximum shared memory of 16 GB

Expansion Slots
PCI

* 1 x PCI Express x16 slot, running at x16

(The PCIEX16 slot conforms to PCI Express 3.0 standard.)

* 2 x PCI Express x1 slot

(The PCI Express x1 slot conforms to PCI Express 2.0 standard.)

Storage Information
M.2

* 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support)

* Actual support may vary by CPU.

* Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU.

SATA 4 x SATA 6Gb/s connectors
RAID Support for RAID 0, RAID 1, and RAID 10
Connector Information
Internal Connector

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

1 x M.2 Socket 3 connector

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x CPU cooler LED strip/RGB LED strip header

1 x USB 3.1 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x speaker header

1 x serial port header

1 x Clear CMOS jumper

1 x chassis intrusion header

Port Information
PS/2 Port

1 x PS/2 keyboard port

1 x PS/2 mouse port

USB Port

4 x USB 3.1 Gen 1 ports

2 x USB 2.0/1.1 ports

HDMI Port 1 x HDMI port
D-Sub Port 1 x D-Sub port
DVI-D Port 1 x DVI-D port
LAN Port

1 x RJ-45 port

Realtek® GbE LAN chip (10/100/1000 Mbit)

Audio Jack 3 x audio jacks
Operating System
Supported OS

Support for Windows 10 64-bit

Support for Windows 7 64-bit

Warranty
Warranty 03 Years

Description:


Gigabyte B450M GAMING AMD Micro ATX Motherboard


Gigabyte B450M GAMING AMD Micro ATX Motherboard. The Gigabyte B450M provides customers with advanced features and the latest technologies. Gigabyte motherboards have upgraded power solutions, the latest storage standards, and outstanding connectivity to optimize gaming performance.


Gigabyte B450M GAMING AMD Micro ATX Motherboard. The model is B450M GAMING. The brand is Gigabyte. The Motherboard Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors. Chipset AMD B450. Socket AM4. 1 x 128 Mbit flash. Use of licensed AMI UEFI BIOS. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. Micro ATX Form Factor; 24.4cm x 20.5cm. Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs. Maximum Memory up to 64 GB. HDMI, D-sub Ports for Multiple Display. Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support. Realtek GbE LAN with Bandwidth Management. RGB Fusion supports RGB LED Strips in 7 colors. High-Quality Audio Capacitors and Audio Noise Guard Design. Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers. APP Center Including EasyTune™ and Cloud Station™ Utilities. Supported Operating System Windows 10 64-bit & Windows 7 64-bit. The Gigabyte B450M GAMING AMD Micro ATX Motherboard comes with 03 years warranty.
