| Special Price | : | ৳11,900 |
| Regular Price(EMI) | : | ৳12,900 |
| Status | : | In Stock |
| Brand | : | Gigabyte |
| Product Code | : | B450M DS3H V2 |
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।
| General Information | ||
| Model | B450M DS3H V2 | |
| Brand | Gigabyte | |
| Supported Processor | Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors |
|
| Chipset | AMD B450 | |
| Socket | AM4 | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 21.5cm | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual Channel | |
| Slot | 4 x DIMM | |
| Supported Bus Speed | Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules |
|
| Maximum Memory | up to 128 GB (32 GB single DIMM capacity) | |
| Graphics Information | ||
| Graphics | Integrated Graphics Processor: * 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. * 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note) * Support for HDMI 2.0 version and HDCP 2.2.(Note) * Maximum shared memory of 16 GB |
|
| Expansion Slots | ||
| PCI | * 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) * 1 x PCI Express x16 slot, running at x4 (PCIEX4) * 1 x PCI Express x1 slot (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.) |
|
| Storage Information | ||
| M.2 | * 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support) * Actual support may vary by CPU. * Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU. |
|
| SATA | 4 x SATA 6Gb/s connectors | |
| RAID | Support for RAID 0, RAID 1, and RAID 10 | |
| Connector Information | ||
| Internal Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) 1 x serial port header 1 x Clear CMOS jumper |
|

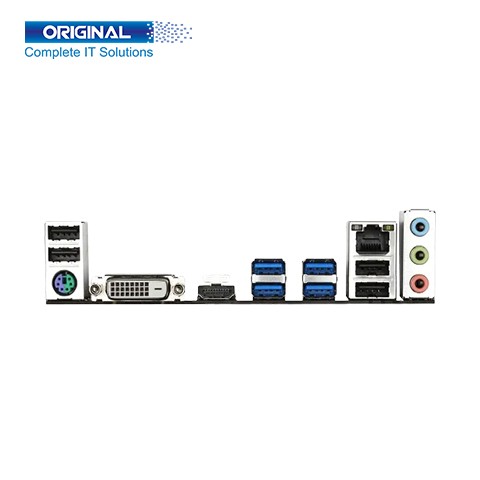

| Port Information | ||
| PS/2 Port | 1 x PS/2 keyboard/mouse port | |
| USB Port | Chipset: * 2 x USB 3.1 Gen 1 port available through the internal USB header * 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) CPU: * 4 x USB 3.1 Gen 1 ports on the back panel |
|
| HDMI Port | 1 x HDMI port | |
| DVI-D Port | 1 x DVI-D port | |
| LAN Port | 1 x RJ-45 port
Realtek® GbE LAN chip (10/100/1000 Mbit) |
|
| Audio Jack | 3 x audio jacks | |
| Operating System | ||
| Supported OS | Support for Windows 11 64-bit Support for Windows 10 64-bit |
|
| Warranty | ||
| Warranty | 03 Years | |
Gigabyte B450M DS3H V2 AMD Micro ATX Motherboard
Gigabyte B450M DS3H V2 AMD Micro ATX Motherboard. The Gigabyte B450M provides customers with advanced features and the latest technologies. Gigabyte motherboards have upgraded power solutions, the latest storage standards, and outstanding connectivity to optimize gaming performance.
Gigabyte B450M DS3H V2 AMD Micro ATX Motherboard. The model is B450M DS3H V2. The brand is Gigabyte. The Motherboard Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors. Chipset AMD B450. Socket AM4. 1 x 128 Mbit flash. Use of licensed AMI UEFI BIOS. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. Micro ATX Form Factor; 24.4cm x 20.5cm. Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs. Maximum Memory up to 128GB. HDMI, DVI-D Ports for Multiple Display. Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support. Realtek GbE LAN with Bandwidth Management. RGB Fusion supports RGB LED Strips in 7 colors. High-Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting. Realtek GbE LAN with Bandwidth Management. RGB Fusion supports RGB LED Strips in 7 colors. Smart Fan 5 Features 5 Temperature Sensors and 2 Hybrid Fan Headers with FAN STOP. PP Center Including EasyTune™ and Cloud Station™ Utilities. CEC 2019 Ready, Save Power with a Simple Click. Supported Operating System Support for Windows 11 64-bit & Support for Windows 10 64-bit. The Gigabyte B450M DS3H V2 AMD Micro ATX Motherboard has come with 03 years warranty.
