| Price | : | To be announced |
| Status | : | Up Comming |
| Brand | : | Uniview |
| General Information | ||
| Model | NVR516-128 | |
| Brand | Uniview | |
| Type | 128 Channel NVR | |
| Chassis | 19-inch rack-mounted 3U chassis | |
| Video Information | ||
| Camera Input | 128 Channel | |
| Network Bandwidth | * Incoming Bandwidth : 512Mbps * Outgoing Bandwidth : 384Mbps |
|
| Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Decoding Capability | 4 x 12MP@20, 4 x 4K@30, 16 x 1080p@30, 36 x 720p@30, 64 x D1 | |
| HDMI Output | *HDMI1 : 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz *HDMI2 : 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz |
|
| VGA Output | 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz | |
| Multi-Screen Display | 3/4/5/7/9/10/12/16/32 | |
| Compression Information | ||
| Video | Ultra 265, H.265, H.264 | |
| Network Information | ||
| Network Protocol | P2P, UPnP, NTP, DHCP, PPPoE | |
| Remote Users | 128 | |
| Mobile Phone Access | Android; iOS | |
| Record Playback Information | ||
| Multi-channel Playback | Up to 16 channels for playback | |
| Record Mode | Manual record; alarm recording; smart recording | |
| Storage | Storage | |
| Backup | USB storage device / network | |
| Playback Function | live view, storage, and playback | |
| Alarm Information | ||
| Alarm In | 24-ch | |
| Alarm Out | 8-ch | |
| External Port Information | ||
| Audio Input | 1-ch, BNC | |
| HDD | 16 SATA Interface Up to 10TB Capacity | |
| USB | Rear panel: 4 x USB3.0 | |
| HDMI | 2-Channe | |
| VGA | 1-Channe | |
| Network Interface | 4 RJ-45 10M/100M/1000M adaptive Ethernet Interface2 1000M SFP Ethernet Interface | |
| Power Information | ||
| Power Supply | 100 ~ 240V AC | |
| Power Consumption | ≤ 50 W( without HDD ) | |
| Physical Information | ||
| Dimensions | 482mm ×477mm × 131mm (18.8"× 19.0" ×5.1") | |
| Net Weight | ≤ 10 Kg ( 22.05 lb ) | |
| Environment Information | ||
| Operating Conditions | -10°C ~ + 55°C ( +14°F ~ +131°F ) | |
| Working Humidity | Humidity ≤ 90% RH(non-condensing) | |
| Warranty Information | ||
| Warranty | 1 Year | |

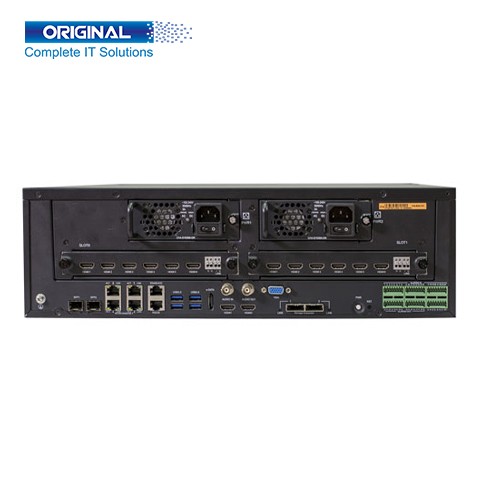

The Uniview NVR516-128 128-Channel NVR is capable of monitoring, recording, and playing back images from Up to 128 Channel IP cameras that can be connected.
For more NVR information Please Check Dahua NVR, Hikvision NVR, and Uniview NVR. And also If you Want to know more different types of IT Product information Please Click here.
Uniview NVR516-128 128-Channel NVR. It is model NVR516-128 for the brand Uniview and the Type is 128 Channel NVR. Chassis 19-inch rack-mounted 3U chassis. This is a Camera Input 128 Channel, Network Bandwidth Incoming Bandwidth : 512Mbps, Outgoing Bandwidth : 384Mbps. Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF. Decoding Capability 4 x 12MP@20, 4 x 4K@30, 16 x 1080p@30, 36 x 720p@30, 64 x D1. HDMI Output *HDMI1 : 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz, *HDMI2 : 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz. VGA Output 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz. Multi-Screen Display 3/4/5/7/9/10/12/16/32. Video Ultra 265, H.265, H.264. Network Protocol P2P, UPnP, NTP, DHCP, PPPoE. Remote Users 128. Mobile Phone Access Android; iOS. Multi-channel Playback Up to 16 channels for playback. Record Mode Manual record; alarm recording; smart recording. Storage Local HDD. Backup USB storage device/network. Playback Function lives view, storage, and playback. Alarm In 24-ch. Alarm Out 8-ch. Audio Input 1-ch, BNC. HDD 16 SATA Interface Up to 10TB Capacity. USB Rear panel: 4 x USB3.0. HDMI 2-Channe. VGA 1-Channe. Network Interface 4 RJ-45 10M/100M/1000M adaptive Ethernet Interface2 1000M SFP Ethernet Interface. The Power Supply is 100 ~ 240V AC and Power Consumption is ≤ 50 W( without HDD ). Its Dimensions are 482mm ×477mm × 131mm (18.8"× 19.0" ×5.1") and its Net Weight is ≤ 10 Kg ( 22.05 lb ). Operating Conditions -10°C ~ + 55°C ( +14°F ~ +131°F ). Working Humidity Humidity ≤ 90% RH(non-condensing). The Uniview NVR516-128 128-Channel NVR comes with One year warranty.
