| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Uniview |
| Product Code | : | NVR302-08E-P8 |
| General Information | ||
| Model | NVR302-08E-P8 | |
| Brand | Uniview | |
| Type | 8 Channel NVR | |
| Video Information | ||
| Camera Input | 8 Channel | |
| Network Bandwidth | * Incoming Bandwidth : 80Mbps * Outgoing Bandwidth : 96Mbps |
|
| Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Decoding Capability | 3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30 | |
| HDMI Output | 4K (3840x2160)/60Hz, 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| Multi-Screen Display | 3/4/5/7/9 | |
| Compression Information | ||
| Video | Ultra 265, H.265, H.264 | |
| Network Information | ||
| Network Protocol | P2P, UPnP, NTP, DHCP, PPPoE | |
| Mobile Phone Access | Android; iOS | |
| Record Playback Information | ||
| Multi-channel Playback | Up to 08 channels for playback | |
| Record Mode | Manual record; alarm recording; smart recording | |
| Storage | Local HDD; network | |
| Backup | USB storage device / network | |
| Playback Function | live view, storage, and playback | |
| Alarm Information | ||
| Alarm In | 4-ch | |
| Alarm Out | 1-ch | |
| External Port Information | ||
| Audio Input | 1-ch, RCA | |
| HDD | 2 SATA Interface Up to 10TB Capacity | |
| USB | Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 | |
| HDMI | 1-Channe | |
| VGA | 1-Channe | |
| Network Interface | 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface | |
| PoE Interface | 8 RJ-45 10M/100M self-adaptive Ethernet Interface | |
| Power Information | ||
| Power Supply | 100 ~ 240 V AC | |
| Power Consumption | ≤ 12 W (without HDD) | |
| Physical Information | ||
| Dimensions | 380 mm × 315mm × 53 mm (15" × 12.4"×2.1") | |
| Net Weight | ≤2.42kg (5.34lb) | |
| Environment Information | ||
| Operating Conditions | -10°C~+ 55°C (+14°F~+131°F) | |
| Working Humidity | Humidity ≤ 90% RH (non-condensing) | |
| Warranty Information | ||
| Warranty | 1 Year | |

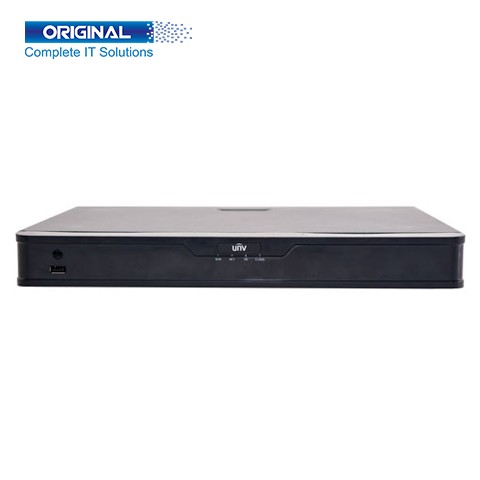

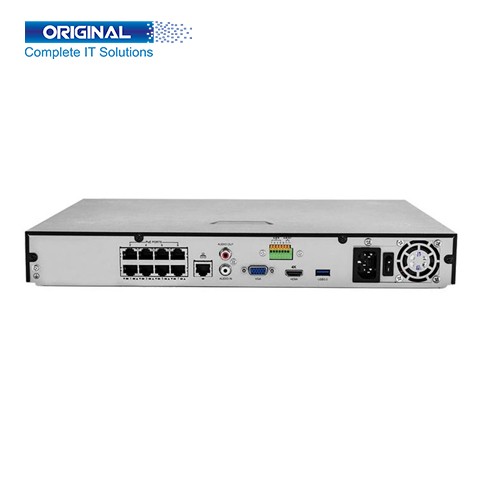

The Uniview NVR302-08E-P8 8-Channel NVR is capable of monitoring, recording, and playing back images from Up to 8 Channel IP cameras that can be connected.
For more NVR information Please Check Dahua NVR, Hikvision NVR, and Uniview NVR. And also If you Want to know more different types of IT Product information Please Click here.
Uniview NVR302-08E-P8 8-Channel NVR. It is model NVR302-08E-P8 for the brand Uniview and the Type is 8 Channel NVR. This is a Camera Input 8 Channel, Network Bandwidth Incoming Bandwidth: 80Mbps & Outgoing Bandwidth: 96Mbps. Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF. Decoding Capability 3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30. HDMI Output 4K (3840x2160)/60Hz, 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. VGA Output 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. Multi-Screen Display 3/4/5/7/9. Video Ultra265/H.265/H.264. Network Protocol P2P, UPnP, NTP, DHCP, PPPoE. Mobile Phone Access Android; iOS. Multi-channel Playback Up to 08 channels for playback. Record Mode Manual record; alarm recording; smart recording. Storage Local HDD; network. Backup USB storage device/network. Playback Function lives view, storage, and playback. Alarm Yes. Alarm management HTTP, FTP, SMTP, ONVIF Audio In 4-ch, Alarm Out 1-ch. Audio Output 1-ch, RCA. HDD 2 SATA Interface Up to 10TB Capacity. USB Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0. HDMI 1-Channe. VGA 1-Channe. Network Interface 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces. PoE Interface 8 RJ-45 10M/100M self-adaptive Ethernet Interface. The Power Supply is 100 ~ 240 V AC and the Power Consumption is ≤ 12W (without HDD). Its Dimensions are 380mm × 315mm ×53mm (15.0" × 12.4" ×2.1") and its Net Weight is ≤2.42kg (5.34lb). Operating Conditions -10°C~+55°C (+14°F~+131°F). Working Humidity ≤ 90% RH (non-condensing). The Uniview NVR302-08E-P8 8-Channel NVR comes with One year warranty.
