| General Information |
| Model |
IPC6222ER-X30(P) |
| Brand |
Uniview |
| Type |
Dome Camera |
| Camera Information |
| Image Sensor |
1/2.8", 2 megapixel, progressive scan, CMOS |
| Max. Resolution |
1920 × 1080 |
| Pixel |
2MP |
| Electronic Shutter Speed |
Auto/Manual; shutter time: 1/6 s ~ 1/8000 s |
| S/N Ratio |
>52dB |
| Min. Illumination |
Colour: 0.03 lux (F1.6, 50IRE)B/W: 0.01 lux (F1.6, 50IRE) |
| Day & Night |
IR-cut filter with auto switch (ICR) |
| Lens Information |
| Lens Type |
4.5 ~ 135 mm (30x optical zoom) |
| Viewing Angle |
62.9° (wide) ~ 2.3° (tele) |
| WDR |
Digital |
| Network Information |
| Protocols |
L2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP, NTP,FTP,HTTP,SNMP,SIP |
| General Features |
Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Compatible Integration |
ONVIF, IMOS,API |
| Network Storage |
ANR |
| Video Information |
| Video Compression |
H.264,MJPEG |
| Frame Rate |
1080P (1920*1080) 30 fps; 720P (1280*720) 30 fps; D1 (720*576) 25 fps |
| BLC |
Supported |
| Power Information |
| Power Supply |
24 V AC, 24 V DC |
| Power Consumption |
9 ~ 42W (IR:16W, heater: Max. 24 W) |
| Environment Information |
| Operating Temperature |
–40°C ~ +65°C (-40°F ~ 149°F), Humidity ≤ 90% RH(non-condensing) |
| Physical Information |
| Dimensions |
Ø227 x 359.4 mm (Ø8.9” x 14.2”) |
| Net Weight |
5.28 kg (11.6 lb) |
| Warranty Information |
| Warranty |
01 Year |
Description:

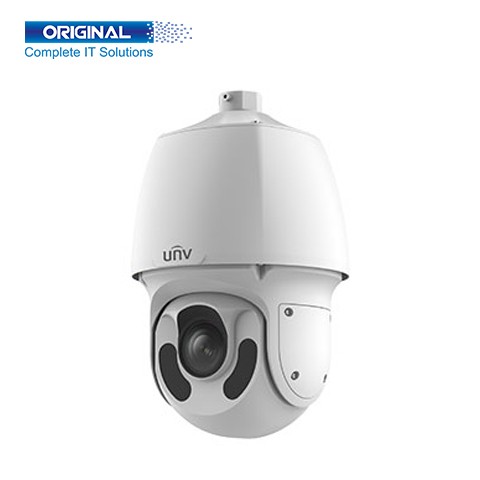

Uniview IR Network IPC6222ER 2MP 30x PTZ Dome Camera
Our security aspects make video surveillance easier to use. There is strong anecdotal evidence that the use of CCTV helps in identifying and convicting criminals. with police forces regularly searching for CCTV recordings after a crime. Large-scale CCTV installations have played an important role in our defense. The camera sends the feed to a central control center where a producer can select the feed on a television monitor for the user to watch. Many home or office owners choose to install CCTV systems inside or outside their own home or office. The Modern CCTV system is can be monitored via a mobile phone app that allows people to view live footage of their home or office from anywhere with internet coverage.
The Uniview IPC6222ER 2MP 30x IR Network PTZ Dome Camera is are the most widely used for indoor and outdoor security and video surveillance. Its Camera Max Resolution is 1920 × 1080 the type of Dome Camera. Its Camera Image Sensor is 1/2.8", 2 megapixel, progressive scan, CMOS, Its Pixel is 2MP. This Camera Electronic Shutter Speed is Auto/Manual shutter time is 1/6 s ~ 1/8000 s, its S/N Ratio is 52dB. Its Camera used Min Illumination is 0.01 lux (F1.6, 50IRE), Color is 0.03 lux (F1.6, 50IRE)B/W it Work Day & Night is IR-cut filter with auto switch (ICR). This Camera Lens Type of 4.5 ~ 135 mm (30x optical zoom), its Viewing Angle is 62.9° (wide) ~ 2.3° (tele), and WDR is Digital. Its Camera Protocol is L2TP, IPv4, IGMP, ICMP, ARP, TCP, RTSP, NTP, FTP, HTTP, SNMP, SIP, UDP, HCP, PPPoE, RTP, and its General Features is Watermark, Tampering Alarm, Alarm input, Access Policy, IP Address Filtering, ARP Protection, Alarm output, RTSP Authentication, User Authentication. Its Camera Compatible Integration is ONVIF, API, IMOS, and Network Storage is ANR. Its Camera Video Compression of H.264, MJPEG its Frame Rate of 1080P (1920*1080) 30 fps, 720P (1280*720) 30 fps, D1 (720*576) 25 fps, and BLC is Supported. The Power Supply is 24 V AC, 24 V DC and Power Consumption of 9 ~ 42W (IR 16W, heater Max. 24 W). Its Environment Operating Temperature is –40°C ~ +65°C (-40°F ~ 149°F), Humidity ≤ 90% RH(non-condensing). Its Camera Physical Dimensions of Ø227 x 359.4 mm (Ø8.9” x 14.2”) and Net Weight is 5.28 kg (11.6 lb). A camera is a basic tool that protects your home or office property, as well as keeps your employees under constant surveillance.
The Uniview IPC6222ER 2MP 30x IR Network PTZ Dome Camera iS 01 Years Warranty.
