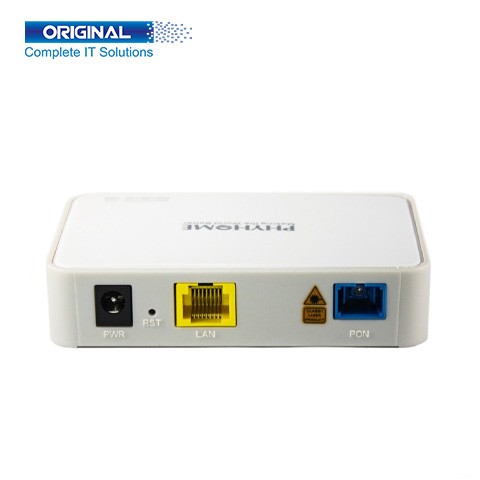

Phyhome FHR1100GZB 1GE EPON ONU

Price :           To be announced
Status :           Out of Stock
Brand :           Phyhome
Product Code :           FHR1100GZB

Short Details:

  • • Model: FHR1100GZB 1GE
  • • Power Supply: 12V 0.5A
  • • Operating Humidity: 10〜90%

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model

FHR1100GZB 1GE

Brand Phyhome
Type of the optical interface SC/PC
Operating Temperature -5〜+55℃(non-condensation)
Operating Humidity 10〜90%
Wavelength Tx 1310nm, Rx 1490nm
Receiving saturation -30℃〜+60℃
Receiving sensitivity 10〜90%(non-condensation)
Power Supply 12V 0.5A
Dimension 130*105*30mm(length*width*height)
Net weight ≤0.2Kg
Warranty 1 Year Warranty

Descripton:


Phyhome FHR1100GZB 1GE EPON ONU


The Phyhome FHR1100GZB 1GE EPON ONU. EPON ONU is designed for FTTH and networking service providers. FHR1100GZB is developed by FH-net Optoelectronics based on the Gigabit EPON technology, has a high-cost performance. It is high stability and easy to maintain, has a multi-service QoS quality guarantee. And It is fully compliant with technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment (V2.1 and above version).



The Phyhome FHR1100GZB 1GE EPON ONU. Fiber port 1 EPON interface, SC single-mode/single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps. Wavelength Tx 1310nm, Rx 1490nm. RX sensitivity <-28dBm (1490nm). WLAN IEEE802.11b/g/n,300Mbps, a built-in antenna. LAN 1*10/100/1000Mbps adaptive Ethernet ports, full/half-duplex, RJ45 interface. DC power 12V 0.5A, external AC-DC power adapter. Power ≤8W. Operation Working temperature: -5〜+55℃ working humidity:10〜90%(non-condensation). Dimension 130*105*30mm(length*width*height). Net weight ≤0.2Kg. With 1 Year Warranty.
