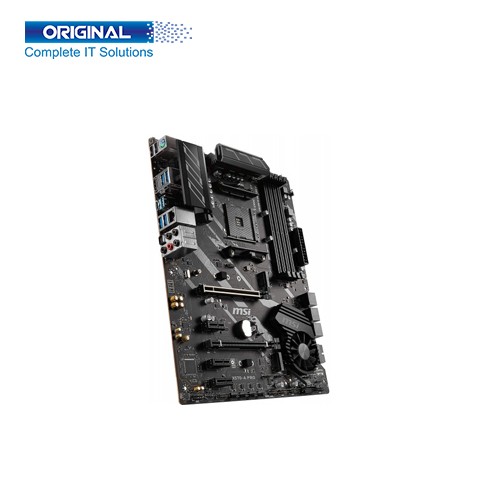

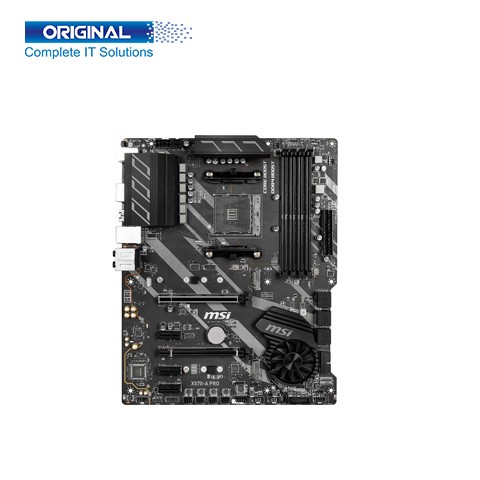

MSI X570-A Pro DDR4 AMD AM4 ATX Motherboard

Special Price :           ৳19,800
Regular Price(EMI) :           ৳21,480
Status :           In Stock
Brand :           MSI
Product Code :           X570-A Pro

Short Details:

  • • Model: X570-A Pro
  • • Chipset: AMD X570
  • • Socket: AM4
  • • Memory Type: DDR4

See More Details

৳19,800

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model X570-A Pro
Brand MSI
Supported Processor Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors
Chipset AMD X570
Socket AM4
BIOS

* 1 x 256MB flash

* UEFI AMI BIOS

* ACPI 6.1, SMBIOS 2.8

* Multi-language

Form Factor ATX
Memory Information
Memory Type DDR4
Channel Dual Channel
Slot 4
Supported Bus Speed

* 3rd Gen AMD Ryzen Processors support DDR4 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC

* 2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors support DDR4 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC

Maximum Memory 128GB
Graphics Information
Graphics

Supported only by CPU with integrated graphic:

- 1 x HDMI 1.4 port, supports a maximum resolution of [email protected]

Only support when using Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors

Expansion Slots
PCI

PCI Express 4.0 x16 :

- 1 x PCIe 4.0/3.0 x16 slot (PCIE_1)

- 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode

- 2nd Gen AMD Ryzen support PCIe 3.0 x16 mode

- Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode

-1 x PCIe 4.0/3.0 x16 slot (PCIE_3, supports x4 mode)

PCI Express x1 :

- 3 x PCIe 3.0 x1 slots*

Storage Information
M.2

2 x M.2 slot (Key M):

M2_1 slot (from AMD Processor)

Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen)

Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics)

Supports 2242/2260/2280/22110 storage devices

M2_2 slot (from AMD X570 Chipset)

Supports PCIe 3.0 x4 and SATA 6Gb/s

Supports 2242/2260/2280 storage devices

SATA 6 x SATA 6Gb/s
RAID 0/1/10
Connector Information
Internal Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

6 x SATA 6Gb/s connectors

2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

2 x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)

1 x 4-pin CPU fan connector

1 x 4-pin water-pump connector

4 x 4-pin system fan connectors

1 x Front panel audio connector

2 x System panel connectors

1 x Serial port connector

1 x Clear CMOS jumper

1 x Chassis Intrusion connector

2 x 4-pin RGB LED connectors

2 x 3-pin RAINBOW LED connectors

4 x EZ Debug LEDs

Port Information
USB Port


AMD X570 Chipset :

- 6 x USB 3.2 Gen 1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2

Gen 1 connectors)

- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0

connectors)

AMD Processor :

- 2 x USB 3.2 Gen 2 (3rd Gen AMD Ryzen) or USB 3.2 Gen1 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and

2nd Gen AMD Ryzen with Radeon Graphics) ports (1x Type-A & 1x Type-C) on the back panel

- 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

HDMI Port Yes (1.4 )
LAN Port 1 x Realtek 8111H Gigabit LAN Controller
Audio Port

* Realtek ALC1220 Codec

* 7.1-Channel High Definition Audio

* Supports Optical S/PDIF output

Operating Systems
Supported OS Support for Windows® 10 64-bit
Warranty
Warranty 03 year warranty

Descripton:


MSI X570-A Pro DDR4 AMD AM4 ATX Motherboard


MSI X570-A Pro DDR4 AMD AM4 ATX Motherboard series assists clients with working more intelligently by conveying a proficient and useful experience. Including stable usefulness and top-notch get-together, PRO series motherboards give streamlined proficient work processes as well as less investigating and life span. MSI X570-A Pro DDR4 Motherboard let you oversee paces and temperatures for all your framework and CPU fans. All out Fan Control permits you to really look at your essential framework qualities in a work on the graphical connection point. You can likewise set up 4 temperature focuses for the CPU and motherboard, which will change the fan speeds consequently. MSI PRO Series motherboards support all the most recent stockpiling norms, which permits clients to interface with any super quick stockpiling gadget. Higher effectiveness makes your work more straightforward.


For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.


MSI X570-A Pro DDR4 AMD AM4 ATX Motherboard Brand is MSI, Supported Processor Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors, Chipset AMD X570,Socket AM4,BIOS 1 x 256MB flash, UEFI AMI BIOS, ACPI 6.1, SMBIOS 2.8,Multi-language,Form Factor ATX, Memory Type DDR4, Channel Dual Channel, Slot 4,Supported Bus Speed 3rd Gen AMD Ryzen Processors support DDR4 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC,2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors support DDR4 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC, Maximum Memory 128GB. The MSI X570-A Pro DDR4 AMD Motherboard Graphics Supported only by CPU with integrated graphic: 1 x HDMI 1.4 port, supports a maximum resolution of [email protected],Only support when using Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors, PCI Express 4.0 x16 :1 x PCIe 4.0/3.0 x16 slot (PCIE_1),3rd Gen AMD Ryzen support PCIe 4.0 x16 mode,2nd Gen AMD Ryzen support PCIe 3.0 x16 mode Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode,1 x PCIe 4.0/3.0 x16 slot (PCIE_3, supports x4 mode),PCI Express x1 3 x PCIe 3.0 x1 slots,M.2 2 x M.2 slot (Key M):M2_1 slot (from AMD Processor),Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen),Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics),Supports 2242/2260/2280/22110 storage devices,M2_2 slot (from AMD X570 Chipset),Supports PCIe 3.0 x4 and SATA 6Gb/s, Supports 2242/2260/2280 storage devices, SATA 6 x SATA 6Gb/s,RAID 0/1/10,Internal Connectors 1 x 24-pin ATX main power connector,1 x 8-pin ATX 12V power connector,1 x 4-pin ATX 12V power connector,6 x SATA 6Gb/s connectors,2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports),2 x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports),1 x 4-pin CPU fan connector,1 x 4-pin water-pump connector,4 x 4-pin system fan connectors,1 x Front panel audio connector,2 x System panel connectors,1 x Serial port connector,1 x Clear CMOS jumper,1 x Chassis Intrusion connector,2 x 4-pin RGB LED connectors,2 x 3-pin RAINBOW LED connectors,4 x EZ Debug LEDs, USB Port AMD X570 Chipset :6 x USB 3.2 Gen 1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2,Gen 1 connectors),6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0connectors),AMD Processor :2 x USB 3.2 Gen 2 (3rd Gen AMD Ryzen) or USB 3.2 Gen1 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) ports (1x Type-A & 1x Type-C) on the back panel 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel, HDMI Port Yes (1.4 ),LAN Port 1 x Realtek 8111H Gigabit LAN Controller, Audio Port Realtek ALC1220 Codec,7.1-Channel High Definition Audio, Supports Optical S/PDIF output. The Supported OS Support for Windows® 10 64-bit.MSI X570-A Pro DDR4 AMD AM4 ATX Motherboard 03-year warranty.
