ORIGINAL STORE LTD.

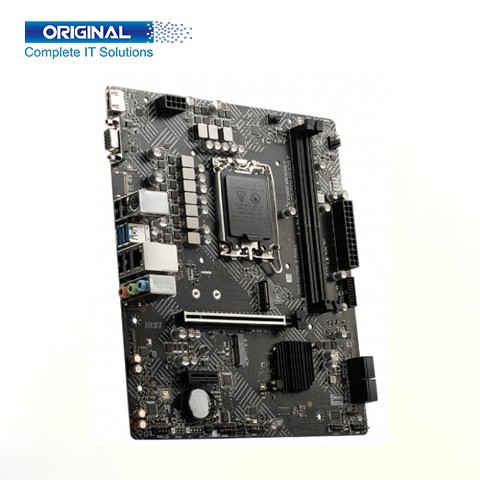

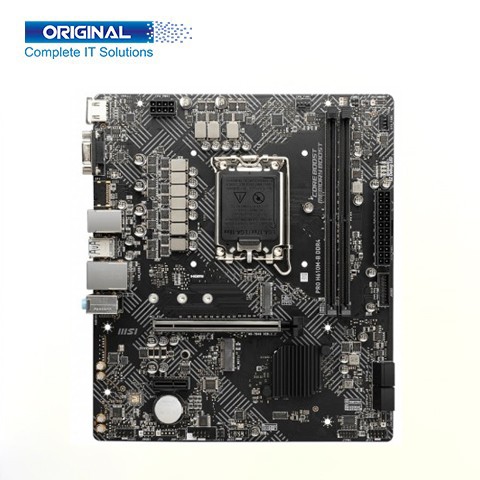

MSI PRO H610M-B DDR4 12th Gen Micro-ATX Motherboard

Special Price :           ৳10,500
Regular Price(EMI) :           ৳11,046
Status :           In Stock
Brand :           MSI
Product Code :           PRO H610M-B DDR4

Short Details:

  • • Model: MSI PRO H610M-B
  • • Socket: LGA1700
  • • Memory Types: DDR4
  • • Maximum Memory: 64GB

See More Details

৳10,500

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model MSI PRO H610M-B
Brand MSI
Supported Processor Supports 12th/ 13th Gen Intel Core Pentium Gold and Celeron Processors
Chipset Intel H610 Chipset
Socket LGA1700
Form Factor

M-ATX Form Factor

9.3 in. x 8.0 in. (24.4 cm x 21.1 cm)

Memory Information
Memory Types DDR4
Channel Dual-Channel
Slot 2x DDR4 memory slots
Supported Bus Speed Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
Maximum Memory 64GB
Graphics Information
Graphics

1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2

1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1 / 2

Expansion Slots
PCI

1x PCIe x16 slot (From CPU)

Supports up to PCIe 4.0 x16

1x PCIe x1 slot

Supports PCIe 3.0 x1

1x M.2 slot with E-key for PCIe WiFi module only (M2_WIFI1)

Storage Information
M.2

1x M.2 slot (Key M, from chipset)

SATA

* 4x SATA 6Gb/s ports

* Supports up to SATA 6Gb/s

Connector Information
Internal Connectors

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
FAN CONNECTORS:
1x 4-pin CPU fan connector
1x 4-pin system fan connector
SYSTEM CONNECTORS:
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
JUMPERS:
1x Clear CMOS jumper
LED FEATURES:
4x EZ Debug LED

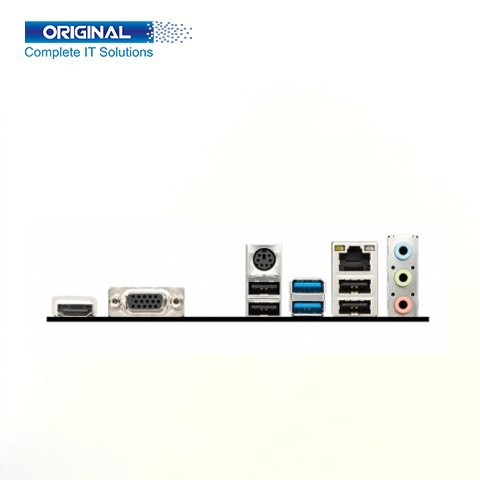

Port Information
PS/2 Port

PS/2 Keyboard/Mouse


VGA Port 1x VGA port
HDMI Port 1x HDMI 2.1
USB Port

4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)

6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)

LAN Port 1x Intel® I219V 1Gbps LAN controller
Audio Port 7.1-Channel High-Definition Audio
Others Information
LED FEATURES 4x EZ Debug LED
JUMPERS 1x Clear CMOS jumper
Operating Systems
Supported OS - Microsoft Windows 10 64-bit
Warranty
Warranty 03 Years Warranty

Descripton:


MSI PRO H610M-B DDR4 12th Gen Micro-ATX Motherboard


MSI PRO H610M-B DDR4 12th Gen Micro-ATX Motherboard. PRO series Motherboard helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting.


MSI PRO H610M-B DDR4 12th Gen Micro-ATX Motherboard. The Model is MSI PRO H610M-B,  Brand MSI,  Supported Processor Supports 12th/ 13th Gen Intel Core Pentium Gold and Celeron Processors, Chipset Intel H610, Chipset Socket LGA1700, Form Factor M-ATX Form Factor, 9.3 in. x 8.0 in. (24.4 cm x 21.1 cm), Memory Types DDR4, Channel Dual-Channel, Slot 2x DDR4 memory slots, Supported Bus Speed Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR), Maximum Memory 64GB, Graphics 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2, 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz, PCI 1x PCIe x16 slot (From CPU), Supports up to PCIe 4.0 x16, 1x PCIe x1 slot, Supports PCIe 3.0 x1, 1x M.2 slot with E-key for PCIe WiFi module only (M2_WIFI1), M.2 1x M.2 slot (Key M, from chipset), SATA * 4x SATA 6Gb/s ports, * Supports up to SATA 6Gb/s, Internal Connectors 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, FAN CONNECTORS: 1x 4-pin CPU fan connector, 1x 4-pin system fan connector, SYSTEM CONNECTORS: 1x Front panel audio connector, 2x System panel connectors, 1x Chassis Intrusion connector, 1x TPM module connector, JUMPERS: 1x Clear CMOS jumper, LED FEATURES: 4x EZ Debug LED, PS/2 Port PS/2 Keyboard/Mouse, VGA Port 1x VGA port, HDMI Port 1x HDMI 2.1USB Port 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector), 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector), LAN Port 1x Intel® I219V 1Gbps LAN controller, Audio Port 7.1-Channel High-Definition Audio. The MSI PRO H610M-B DDR4 12th Gen Micro-ATX Motherboard has a 03 Years Warranty.
