| Special Price | : | ৳8,800 |
| Regular Price(EMI) | : | ৳9,680 |
| Status | : | In Stock |
| Brand | : | MSI |
| Product Code | : | PRO H510M-B |
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।
| General Information | ||
| Model | MSI PRO H510M-B | |
| Brand | MSI | |
| Supported Processor | Supports 10th Gen Intel Core and Pentium Gold/Celeron processors | |
| Chipset | INTEL H470 | |
| Socket | LGA 1200 | |
| Form Factor | mATX 202mmx236mm | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual-Channel | |
| Slot | 2x DDR4 | |
| Supported Bus Speed | Supports 1R 2133/ 2666/ 2933 MHz for Intel® Core™ i9/ Core™ i7 CPU Supports 1R 2133/ 2666 MHz for Intel® Core™ i5/ Core™ i3/ Pentium® Gold and Celeron® CPU |
|
| Maximum Memory | 64GB | |
| Graphics Information | ||
| Graphics | 1x HDMI™ Support HDMI™ 1.4, maximum resolution of 4K 30Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz |
|
| Expansion Slots | ||
| PCI | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
|
| Storage Information | ||
| M.2 | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices |
|
| SATA | 4x SATA 6G | |
| Connector Information | ||
| Internal Connectors | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
|
| Port Information | ||
| PS/2 Port | 1x Keyboard / Mouse | |

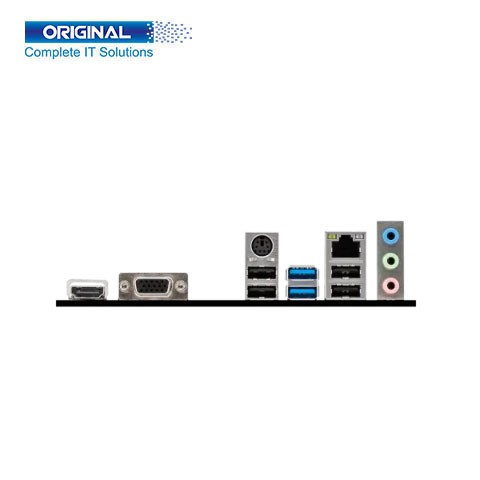

| USB Port | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
|
| VGA Port | 1x VGA | |
| HDMI Port | 1x HDMI 1.4 | |
| LAN Port | Realtek® 8111H Gigabit LAN | |
| Audio Port | Realtek® ALC897 Codec 7.1-Channel High-Definition Audio |
|
| Operating System | ||
| Supported OS | Support for Windows® 11 64-bit, |
|
| Warranty | ||
| Warranty | 03 Years Warranty | |

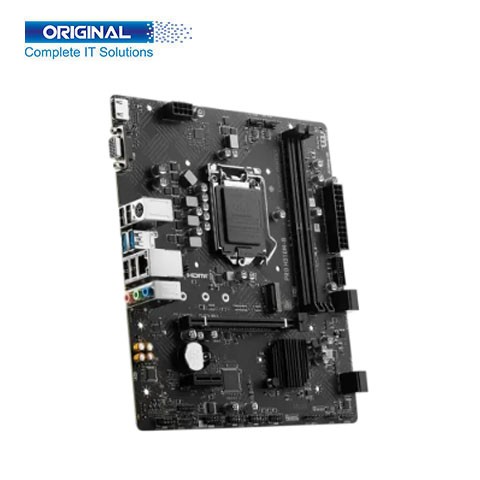

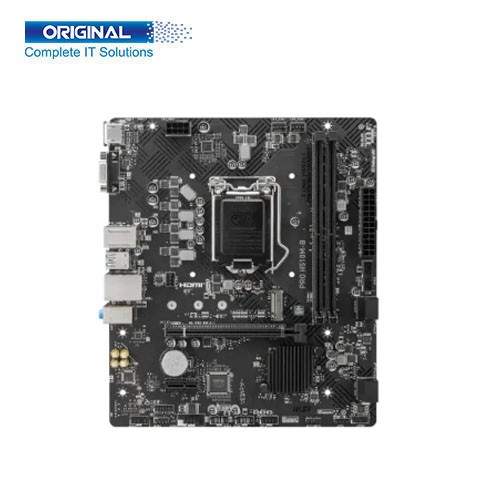

MSI PRO H510M-B 10th Gen Micro-ATX Motherboard. The MSI PRO H510M-B motherboard features Core Boost technology and provides a premium layout and digital power design to deliver better overall performance.
MSI PRO H510M-B 10th Gen Micro-ATX Motherboard. It is MSI Motherboard Supported Processor Supports 10th Gen Intel Core and Pentium Gold/Celeron processors, Chipset INTEL H470, Socket LGA 1200, Form Factor mATX 202mmx236mm, Memory Types DDR4, Channel Dual-Channel, Slot 2x DDR4, Supported Bus Speed Supports 1R 2133/ 2666/ 2933 MHz for Intel® Core™ i9/ Core™ i7 CPU, Supports 1R 2133/ 2666 MHz for Intel® Core i5/ Core™ i3/ Pentium® Gold and Celeron® CPU, Graphics 1x HDMI, Support HDMI 1.4, maximum resolution of 4K 30Hz*, 1x VGA, Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz, PCI 1x PCI-E x16 slot, 1x PCI-E x1 slot, PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), M.2 1x M.2, M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices, Internal Connectors 1x Power Connector(ATX_PWR), 1x Power Connector(CPU_PWR), 1x CPU Fan, 2x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Com Port (JCOM), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0). This MSI PRO H510M-B Motherboard 4x USB 2.0 ports, 2x USB 3.2 Gen1 Type A ports, USB Port 4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 3.2 Gen1 Type A (Rear), 2x USB 3.2 Gen1 Type A (Front). The MSI PRO H510M-B 10th Gen Micro-ATX Motherboard has a 03 Years Warranty.
