| Special Price | : | ৳16,400 |
| Regular Price(EMI) | : | ৳18,000 |
| Status | : | In Stock |
| Brand | : | MSI |
| Product Code | : | PRO B760M-G |
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।
| General Information | ||
| Model | MSI PRO B760M-G | |
| Brand | MSI | |
| Supported Processor | Supports 12th/13th Gen Intel Core Pentium Gold and Celeron Processors | |
| Chipset | INTEL B760 | |
| Socket | LGA 1700 | |
| Form Factor | mATX 220mmx243.84mm | |
| Memory Information | ||
| Memory Types | DDR5 | |
| Channel | Dual-Channel | |
| Slot | 2 Slot | |
| Supported Bus Speed | Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHz |
|
| Maximum Memory | 96GB | |
| Graphics Information | ||
| Graphics | 1x HDMI |
|
| Expansion Slots | ||
| PCI | 1x PCI-E x16 slot |
|
| Storage Information | ||
| M.2 | 2x M.2 |
|
| SATA | 4x SATA 6G | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| Connector Information | ||
| Internal Connectors | 1x Power Connector(ATX_PWR) |
|

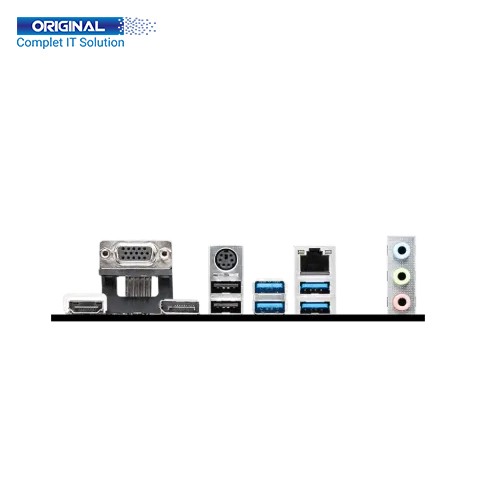

| Port Information | ||
| PS/2 Port | 1x Keyboard / Mouse | |
| VGA Port | 1x VGA | |
| USB Port | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
|
| HDMI Port | 1x HDMI | |
| Display Port | 1x DisplayPort | |
| LAN Port | Realtek® RTL8125B 2.5Gbps LAN | |
| Audio Port | Realtek® ALC897 Codec 7.1-Channel High-Definition Audio |
|
| Others Information | ||
| LED FEATURE | 4x EZ Debug LED | |
| Operating System | ||
| Supported OS | Support for Windows® 11 64-bit, Windows® 10 64-bit | |
| Warranty | ||
| Warranty | 03 Years Warranty | |
MSI PRO B760M-G 12th & 13th Gen mATX Motherboard. PRO Series Motherboard is tailored to professionals from all walks of life. The lineup features impressive performance and high quality while aiming to provide users with an incredible experience.
MSI PRO B760M-G 12th & 13th Gen mATX Motherboard. It is Model MSI PRO B760M-G, Brand MSI, Supported Processor Supports 12th/13th Gen Intel Core Pentium Gold and Celeron Processors, Chipset INTEL B760, Socket LGA 1700, Form Factor mATX 220mmx243.84mm, Memory Types DDR5, Channel Dual-Channel, Slot 2 Slot, Supported Bus Speed Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC), Max. overclocking frequency:, • 1DPC 1R Max speed up to 6400+ MHz,• 1DPC 2R Max speed up to 5600+ MHz, Graphics 1x HDMI, Support HDMI™ 2.1 with HDR, the maximum resolution of 4K 60Hz, 1x DisplayPort, Support DP 1.4, the maximum resolution of 4K 60Hz, Support VGA, the maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz, PCI 1x PCI-E x16 slot, 1x PCI-E x1 slot, PCI_E1 Gen PCIe 4.0 supports up to (From CPU), PCI_E2 Gen PCIe 4.0 supports up to (From Chipset), M.2 2x M.2, M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices, M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices, Internal Connectors 1x Power Connector(ATX_PWR), 1x Power Connector(CPU_PWR), 1x CPU Fan, 2x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Com Port (JCOM), 2x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 2x USB 3.2 Gen1 Type A ports, PS/2 Port 1x Keyboard / Mouse, VGA Port 1x VGA, USB Port 2x USB 2.0 (Rear), 4x USB 2.0 (Front), 4x USB 3.2 Gen1 Type A (Rear), 2x USB 3.2 Gen1 Type A (Front), Audio Port Realtek® ALC897 Codec, 7.1-Channel High-Definition Audio, Supported OS Support for Windows® 11 64-bit, Windows® 10 64-bit. The MSI PRO B760M-G 12th & 13th Gen mATX Motherboard has a 03 Years Warranty.
