| Special Price | : | ā§ŗ15,700 |
| Regular Price(EMI) | : | ā§ŗ17,500 |
| Status | : | In Stock |
| Brand | : | MSI |
| Product Code | : | PRO B660M-P |
āĻ āĻ°ā§āĻĄāĻžāĻ° āĻāĻ°āĻžāĻ° āĻĒā§āĻ°ā§āĻŦā§ āĻāĻžāĻ¸ā§āĻāĻŽāĻžāĻ° āĻā§ā§āĻžāĻ° āĻĨā§āĻā§ āĻĒāĻŖā§āĻ¯ā§āĻ° āĻ¸ā§āĻāĻ āĻ¸āĻŽā§āĻĒāĻ°ā§āĻā§ āĻā§āĻ¨ā§ āĻ¨ā§ā§āĻžāĻ° āĻāĻ¨ā§āĻ¯ āĻ āĻ¨ā§āĻ°ā§āĻ§ āĻāĻ°āĻž āĻ¯āĻžāĻā§āĻā§āĨ¤ āĻĒā§āĻ°āĻ¯ā§āĻā§āĻ¤āĻŋ āĻĒāĻŖā§āĻ¯ā§āĻ° āĻŽā§āĻ˛ā§āĻ¯ āĻ āĻ¸ā§āĻĨāĻŋāĻ¤āĻŋāĻļā§āĻ˛ āĻšāĻā§āĻžāĻ° āĻāĻžāĻ°āĻ¨ā§ āĻ¯ā§āĻā§āĻ¨ā§ āĻŽā§āĻšā§āĻ°ā§āĻ¤ā§ āĻŽā§āĻ˛ā§āĻ¯ āĻĒāĻ°āĻŋāĻŦāĻ°ā§āĻ¤āĻ¨ āĻšāĻ¤ā§ āĻĒāĻžāĻ°ā§āĨ¤
| General Information | ||

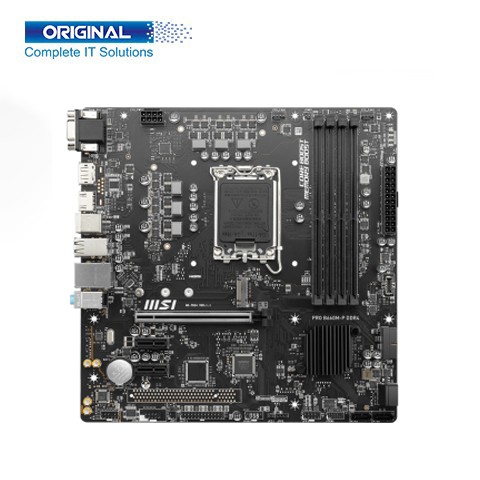

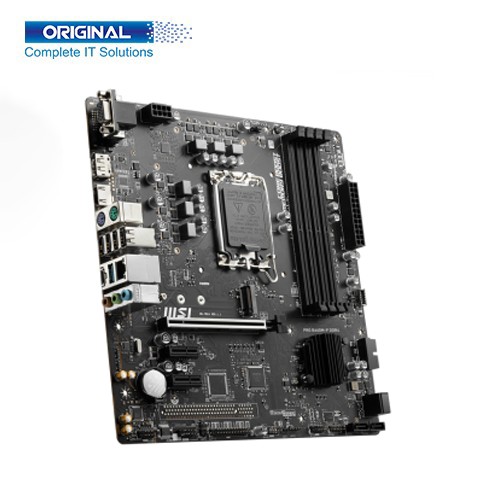

| Model | MSI PRO B660M-P | |
| Brand | MSI | |
| Supported Processor | Supports 12th Gen Intel Core, Pentium Gold, and Celeron processors | |
| Chipset | Intel B660 chipset | |
| Socket | LGA1700 | |
| BIOS | * 1x 256 Mb flash
* UEFI AMI BIOS
* ACPI 6.4, SMBIOS 3.4
* Multi-language |
|
| Form Factor | * M-ATX Form Factor
* 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
|
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual-Channel | |
| Slot | 4x DDR4 memory slots | |
| Supported Bus Speed | * Supports 1R 2133/2666/3200 MHz (by JEDEC & POR)
* Max overclocking frequency:
* 1DPC 1R Max speed up to 4600+ MHz
* 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz
* 2DPC 2R Max speed up to 3600+ MHz |
|
| Maximum Memory | 128GB | |
| Graphics Information | ||
| Graphics | - 1x HDMI 1.4 port, supporting a maximum resolution of 4K 30Hz1 - 1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz1 - 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
|
| Expansion Slots | ||
| PCI | - 1x PCIe x16 slot - PCI_E1 (From CPU) - Supports up to PCIe 4.0 x16 - 2x PCIe x1 slots - PCI_E2 & PCI_E3 (Fom B660 chipset) - Supports up to PCIe 3.0 |
|
| Storage Information | ||
| M.2 | - 1x M.2 slot (Key M) - M2_1 slot (From B660 Chipset) |
|
| SATA | 4x SATA 6Gb/s ports (From B660 chipset) | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| Connector Information | ||
| Internal Connectors | - 1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset) - 1x USB 3.2 Gen 1 5Gbps Type-A connector (From B660 chipset) - Supports additional 2 USB 3.2 Gen 1 5Gbps ports - 1x USB 2.0 Type-A connector (From B660 chipset) - Supports additional 2 USB 2.0 ports * POWER CONNECTORS - 1x 24-pin ATX main power connector - 1x 8-pin ATX 12V power connector * FAN CONNECTORS - 1x 4-pin CPU fan connector - 1x 4-pin system fan connector * SYSTEM CONNECTORS - 1x Front panel audio connector - 2x System panel connectors - 1x Chassis Intrusion connector - 1x TPM module connector - 1x parallel port connector - 1x Serial port |
|

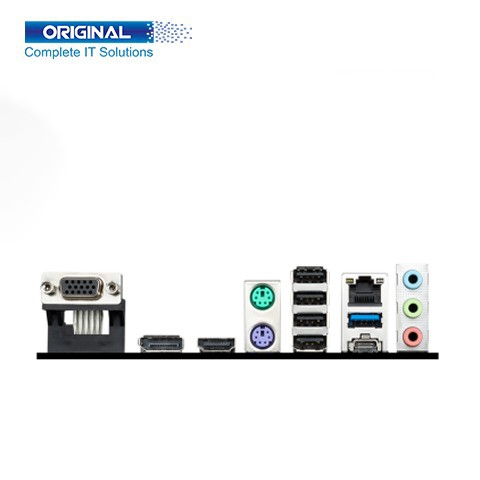

| Port Information | ||
| PS/2 Port | PS/2 Keyboard / Mouse Port | |
| VGA Port | 1x VGA port | |
| HDMI Port | 1x HDMI 1.4 port | |
| USB Port | * USB 2.0
* USB 3.2 Gen 2 10Gbps Type-C
* USB 3.2 Gen 1 5Gbps Type-A |
|
| Display Port | 1x Display Port | |
| LAN Port | 1x RealtekÂŽ RTL8111H 1Gbps LAN controller | |
| Audio Port | 7.1-Channel High Definition Audio | |
| Others Information | ||
| LED FEATURE | 4x EZ Debug LED | |
| JUMPERS | 1x Clear CMOS jumper | |
| Operating Systems | ||
| Supported OS | - Microsoft Windows 10 | |
| Warranty | ||
| Warranty | 03 Years Warranty | |
MSI PRO B660M-P DDR4 12th Gen Micro-ATX Motherboard. PRO series Motherboard helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting.
MSI PRO B660M-P DDR4 12th Gen Micro-ATX Motherboard. The Model is MSI PRO B660M-P, Brand MSI, Supported Processor Supports 12th Gen Intel Core, Pentium Gold, and Celeron processors, Chipset Intel B660 chipset, Socket LGA1700, BIOS * 1x 256 Mb flash * UEFI AMI BIOS * ACPI 6.4, SMBIOS 3.4 * Multi-language, Form Factor * M-ATX Form Factor * 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm), Memory Types DDR4 Channel Dual-Channel, Slot 4x DDR4 memory slots, Supported Bus Speed * Supports 1R 2133/2666/3200 MHz (by JEDEC & POR), * Max overclocking frequency: * 1DPC 1R Max speed up to 4600+ MHz, * 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz, * 2DPC 2R Max speed up to 3600+ MHz, Maximum Memory 128GB, Graphics - 1x HDMI 1.4 port, supporting a maximum resolution of 4K 30Hz1, - 1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz1, - 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz, PCI - 1x PCIe x16 slot, - PCI_E1 (From CPU), - Supports up to PCIe 4.0 x16, - 2x PCIe x1 slots, - PCI_E2 & PCI_E3 (Form B660 chipset), - Supports up to PCIe 3.0. It is Internal Connectors - 1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset), - 1x USB 3.2 Gen 1 5Gbps Type-A connector (From B660 chipset), - Supports additional 2 USB 3.2 Gen 1 5Gbps ports, - 1x USB 2.0 Type-A connector (From B660 chipset), - Supports additional 2 USB 2.0 ports, * POWER CONNECTORS - 1x 24-pin ATX main power connector, - 1x 8-pin ATX 12V power connector, * FAN CONNECTORS, - 1x 4-pin CPU fan connector, - 1x 4-pin system fan connector, * SYSTEM CONNECTORS - 1x Front panel audio connector, - 2x System panel connectors, - 1x Chassis Intrusion connector, - 1x TPM module connector, - 1x parallel port connector, - 1x Serial port, PS/2 Port PS/2 Keyboard / Mouse Port, VGA Port 1x VGA port, HDMI Port 1x HDMI 1.4 port, USB Port * USB 2.0, * USB 3.2 Gen 2 10Gbps Type-C, * USB 3.2 Gen 1 5Gbps Type-A, Display Port 1x Display Port, LAN Port 1x RealtekÂŽ RTL8111H 1Gbps LAN controller, Audio Port 7.1-Channel High Definition Audio. The MSI PRO B660M-P DDR4 12th Gen Micro-ATX Motherboard has a 03 Years Warranty.
